README.md

This mod moves the Y endstop to the A drive, to go along with Arkeet's MGN12 mod that has the X endstop on the toolhead. This mod requires a 2 pin JST-XH to be soldered to the switch. The best way I have done it is to solder the wires to the JST-XH first, install it with a dab of super glue, then solder the wires to the Omron switch.

There are 2 different files

non pinned version

  • a_drive_frame_upper_with_jst_y_endstop.stl

pinned version (since this mod also works with the Voron2.4_Pins_Mod):

  • a_drive_frame_upper_with_jst_y_endstop_pinned.stl

here are a few pics for reference

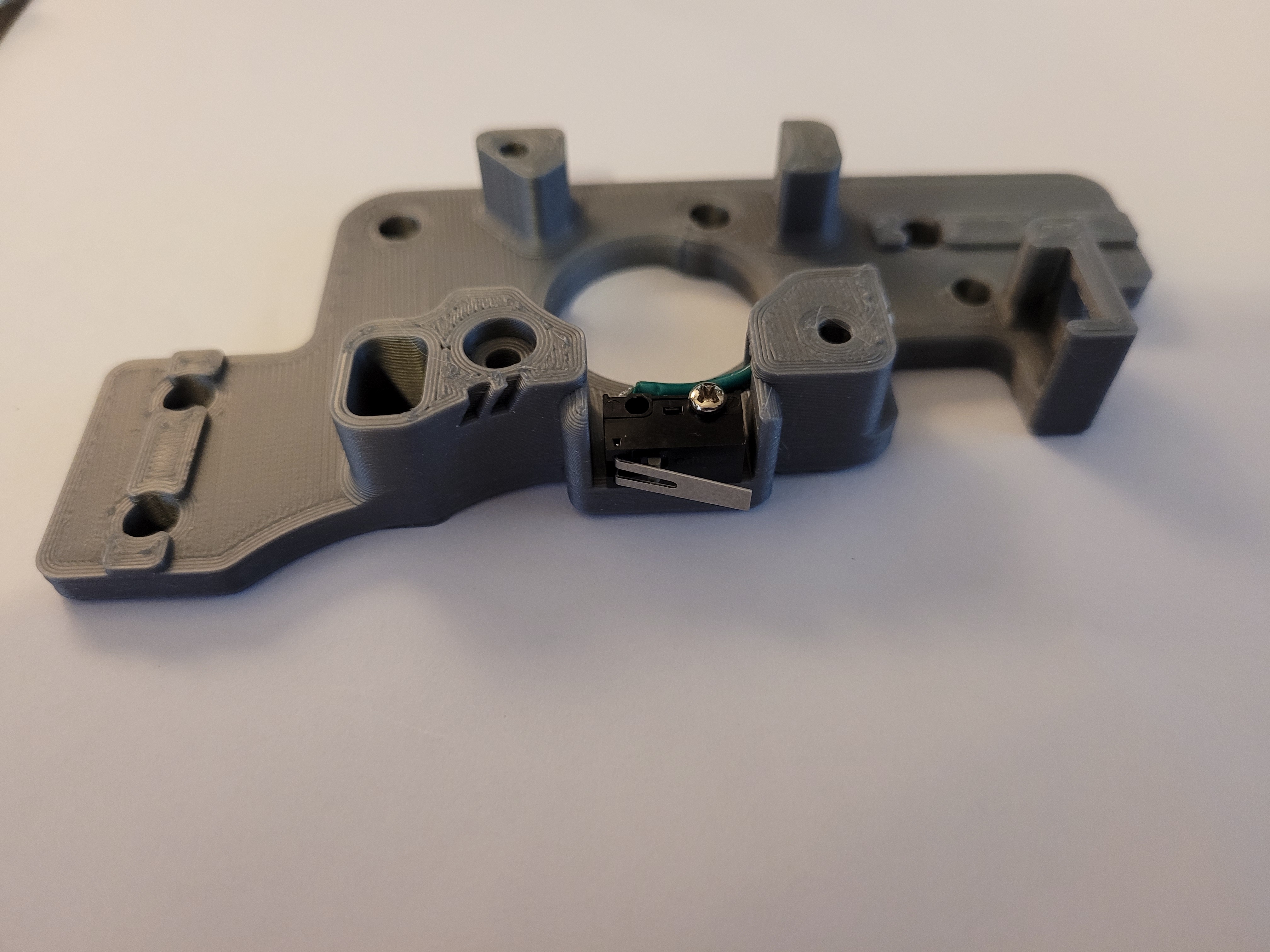

A Drive

A Drive With JST

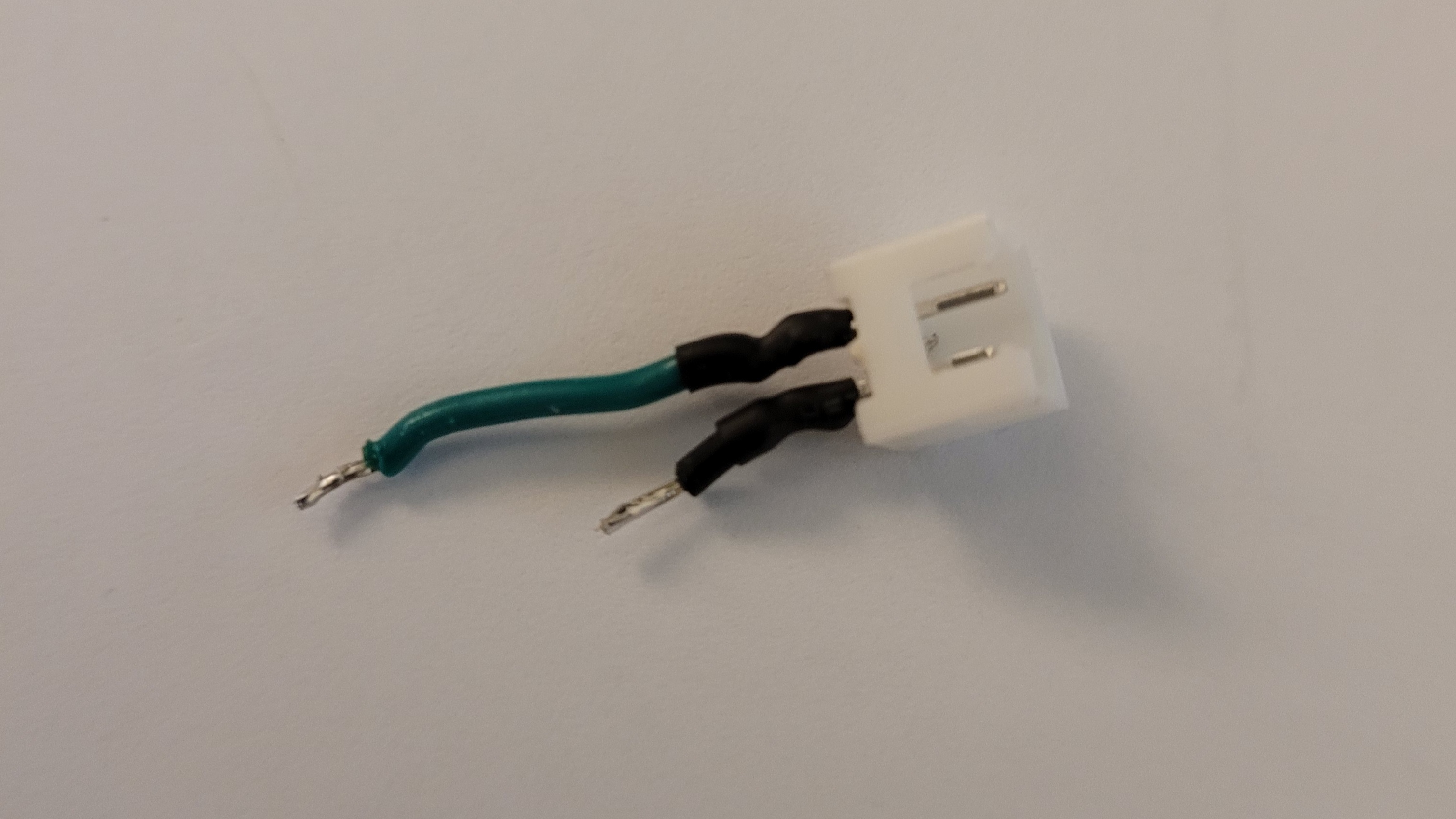

Jst with Wires

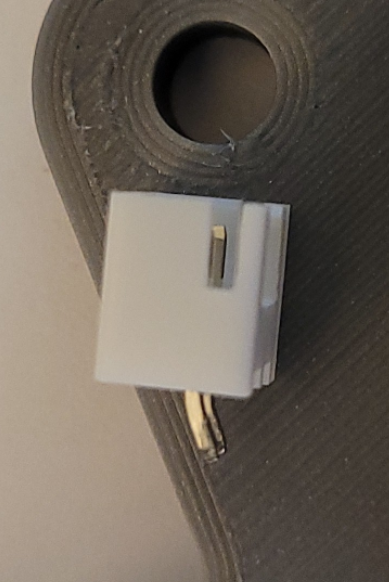

you might need to bend the pins a little bit to get them to fit around the curve

JST with bent pins
