_{A Team Dropbear Production}

Tridentified V2.4 Power Inlet - by @Amarpal89

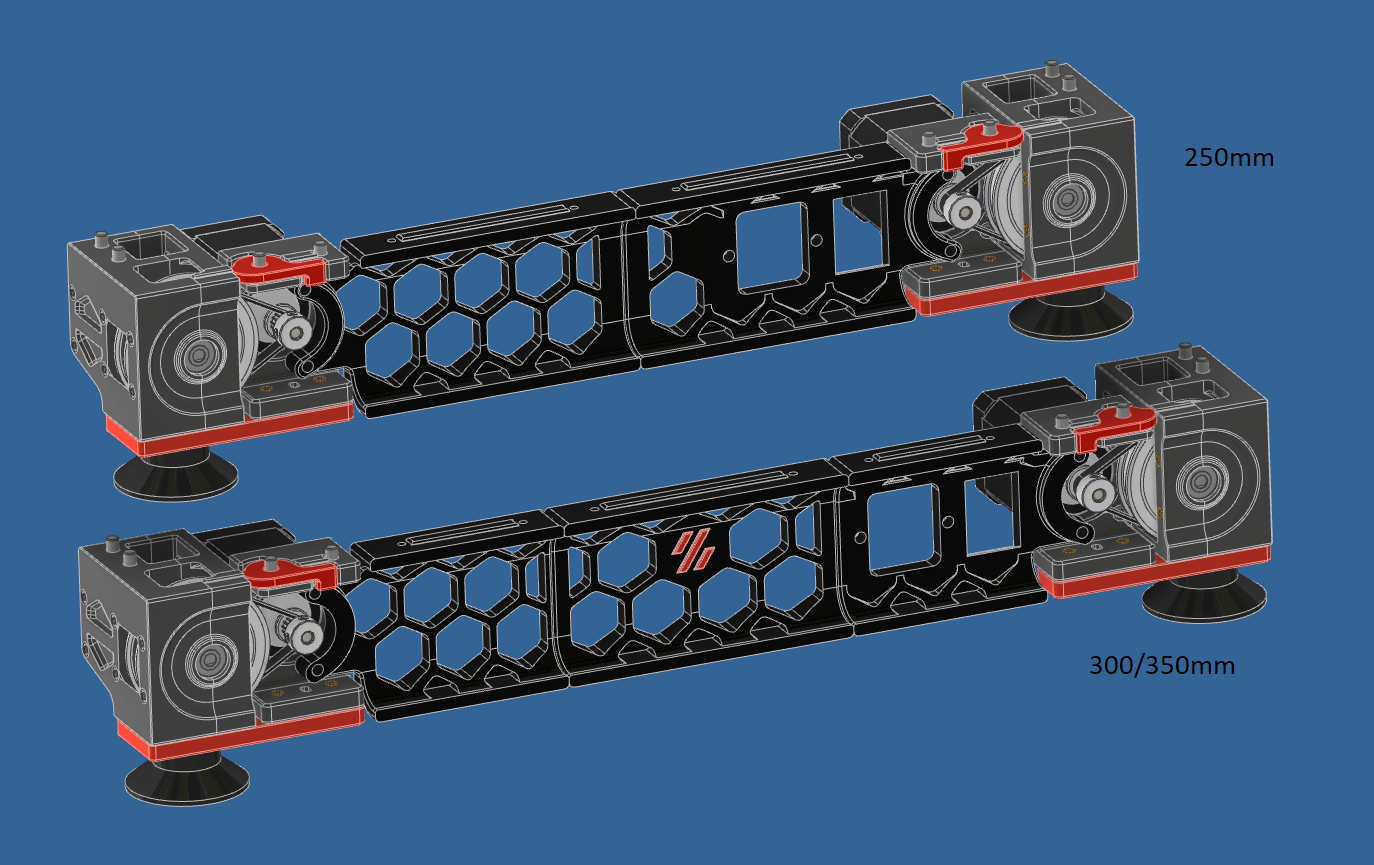

Trident style side plug skirts for V2.4 to suit Edwardyeeks z-drive tensioner mod

These skirts are only compatible with Edwardyeeks V2.4 z-drive Tensioner Mod Found Here

250:

RightSkirt_250.stl + PlugSkirt_250_*.stl Replace the plug panel and both stock rear skirts.

300 & 350:

PlugSkirt_3x0.stl + FillSkirt.stl + [right side skirt from Eddie's mod]

*_Filtered.stl is for filtered inlet with separate switch.
*_adamstech.stl is for single piece combination switch and inlet as per trident plug panel.
*_single.stl is for single piece combination switch and inlet as per original V2.4 plug panel.

Use the accent logo insert from trident stl's if you want a coloured logo on the rear fillskirt of 300/350 builds.
Want the inlet on the right instead of left? Then mirror the plug skirt.
