readme.md

AB dial indicator mount.

Installs in place of fan assembly.

Requires:

  • 2x M3x10mm SHCS
  • 1x M5x20mm SHCS or BHCS
  • 1x M5 nut

For use with common dial indicators. Confirmed compatible with this one: https://www.grizzly.com/products/grizzly-magnetic-base-dial-indicator-combo/g9849?gclid=Cj0KCQjwi7yCBhDJARIsAMWFScMalpVMwU7VGmgg-EX7v9XqT1Eh7hUQgv2Z1UeLJ0F9gKKqIfKyRJwaAmnLEALw_wcB

Useful for:

  • manual bed mesh
  • leveling x rails
  • verify QGL
  • quantify the taco

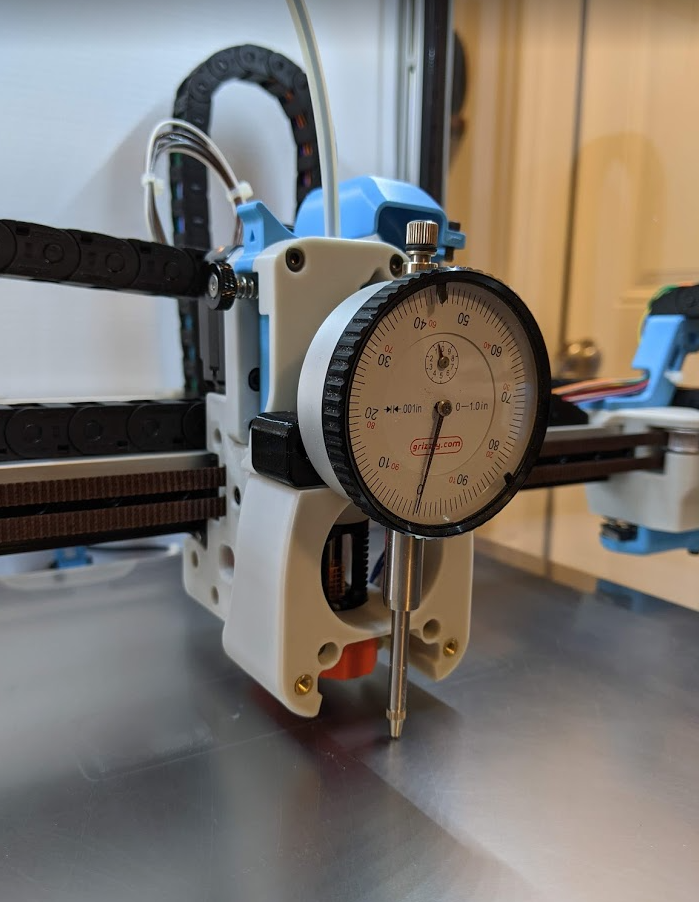

AB dial indicator mount

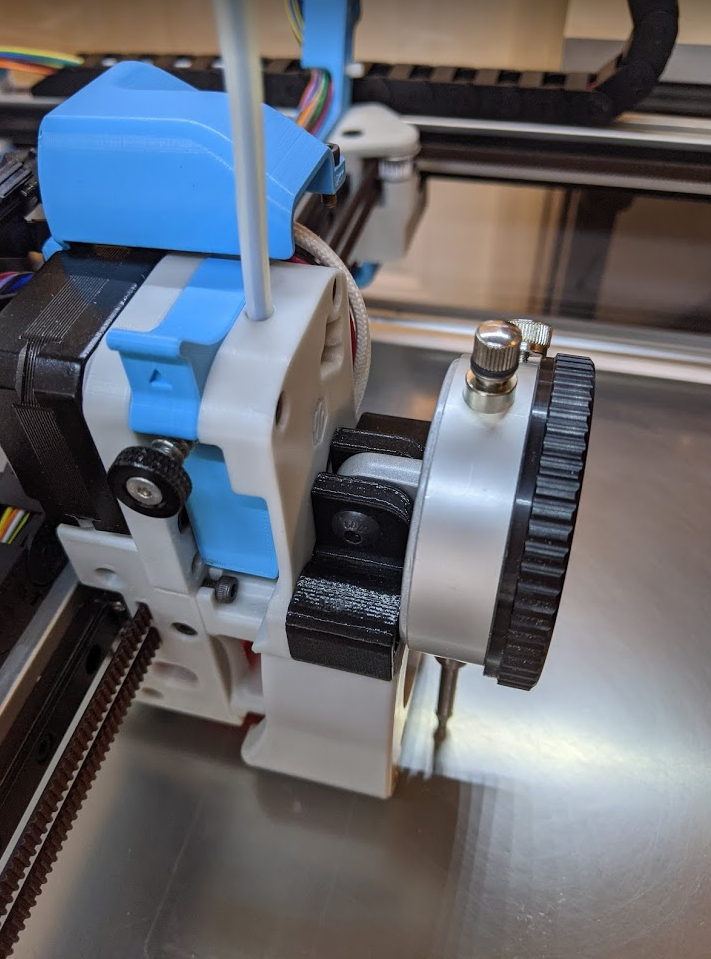

AB dial indicator mount
