Enclosed Z-Chain Guide

Supports Z-Chain from both sides and keeps it from sliding around, especially for taller builds.

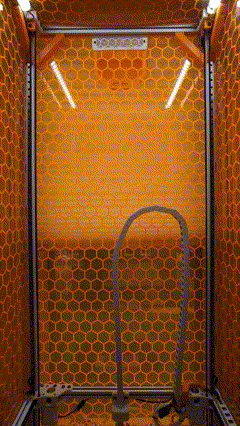

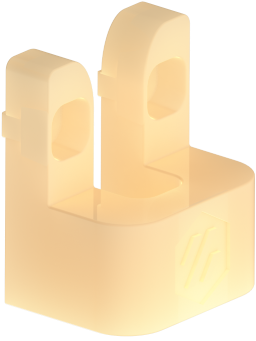

CAD demo

Installation

  • Requires:

    • M5 x 10mm BHCS (Count 2)
    • M5 x T-Nut (Count 2)

  • Clearance:

    • Clears conventional toolhead installations.

closeup clearance

Printing

Use standard voron print settings. 4 walls, 5 top & bottom laters, 40% infill.
