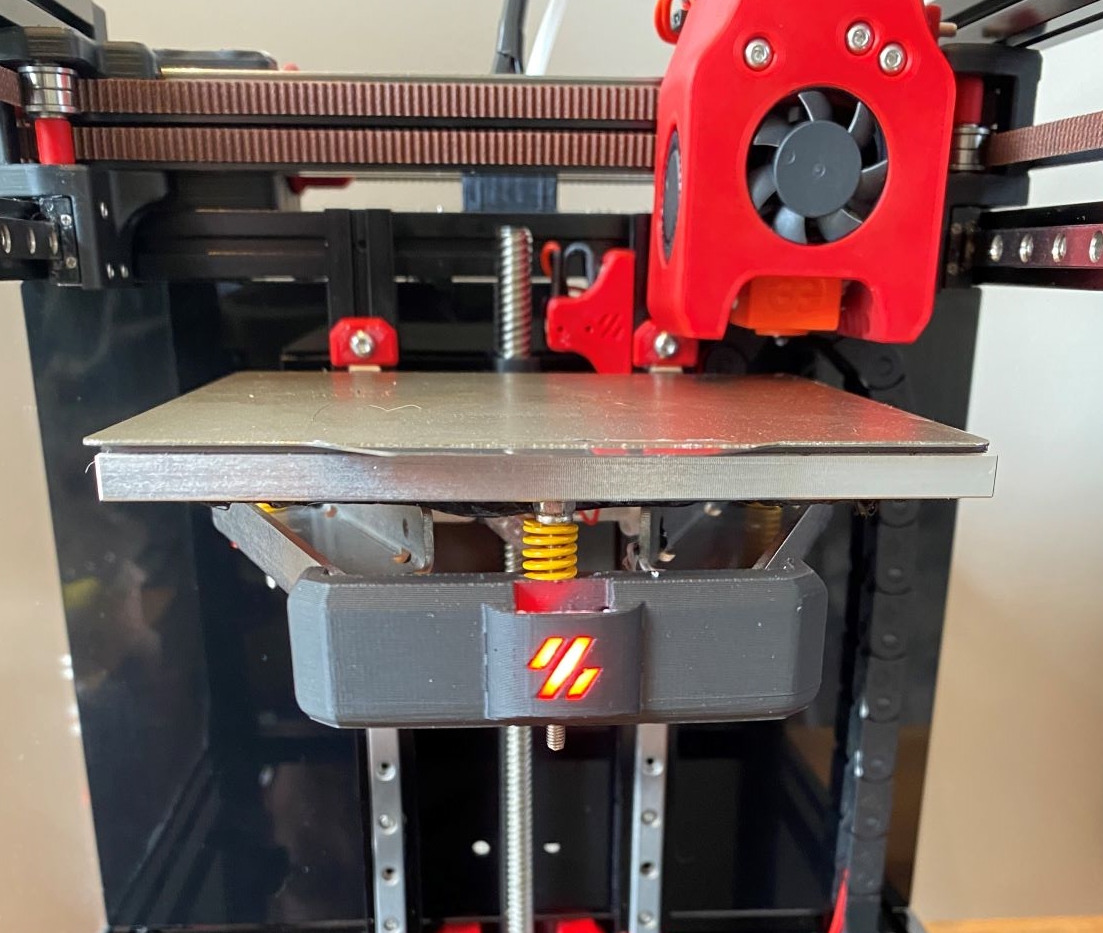

V0 Kirigami bed front with space for LED

This is a modifaction of the V0 Kirigami front bed made by Kosh42EFG

BOM

• Kirigami bed: https://github.com/christophmuellerorg/voron_0_kirigami_bed
• 1x Kirigami_LED_Bed_Front.stl printed in ABS using standard Voron settings
• 1x Kirigami_LED_Bed_Front_defuser.stl printed in any white material
• 2x M3x8 CHCS
• 2x M3 nuts
• 1x LED. I use a single neopixel mini button
• 4x wires for the neopixel (you can use three if this is the only one in the chain)

Installation

• Install the kirigami bed
• Wire the neopixel and place in the slot with the wires coming out through the tunnel

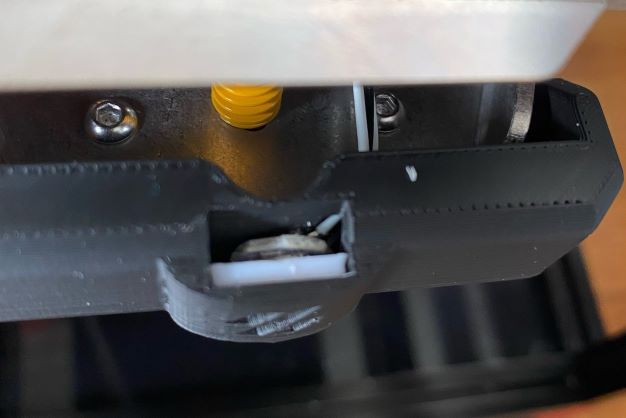

• Add the defuser in front of the neopixel, make sure it is a tight fit to hold it well (print thicker if needed)

• Fit the Kirigami_LED_Bed_Front.stl to the front of the kirigami bed using the M3 screws and nuts
• Add configuration change to the printer.cfg in klipper:
  • [neopixel my_leds]
  • pin: PA8
  • chain_count: 1
  • color_order: GRB
  • initial_RED: 1.0
  • initial_GREEN: 0.0
  • initial_BLUE: 0.0
