README.md

Voron 2.x IKEA Dioder Led Mount

Overview

Voron 2.x IKEA Dioder Led Mount for the DIODER single and multi colour LED Strip sold by IKEA.

IKEA Dioder LED Strip

Description

This is an improved version of the model of randommen96 for the IKEA Dioder LED strip.

  • It comes with a wider gap so it nicely fits the metal mounting brackets supplied with the Dioder.
  • Additionaly the strip can be mounted either with VHB tape or an M3x8 BHCS screw.
  • The LED shines inwards in an angle of 70°.

Step file is included to ease your own modifications.

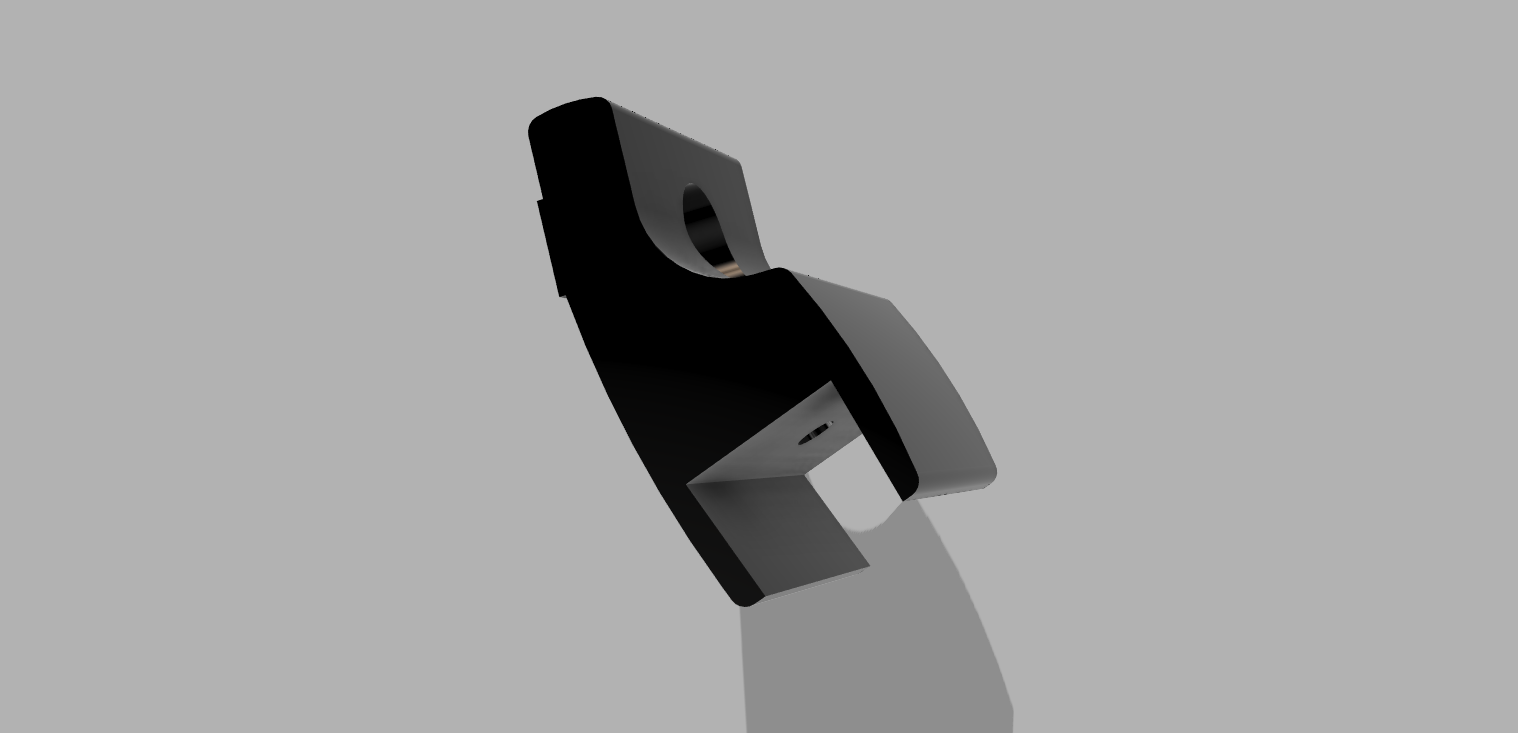

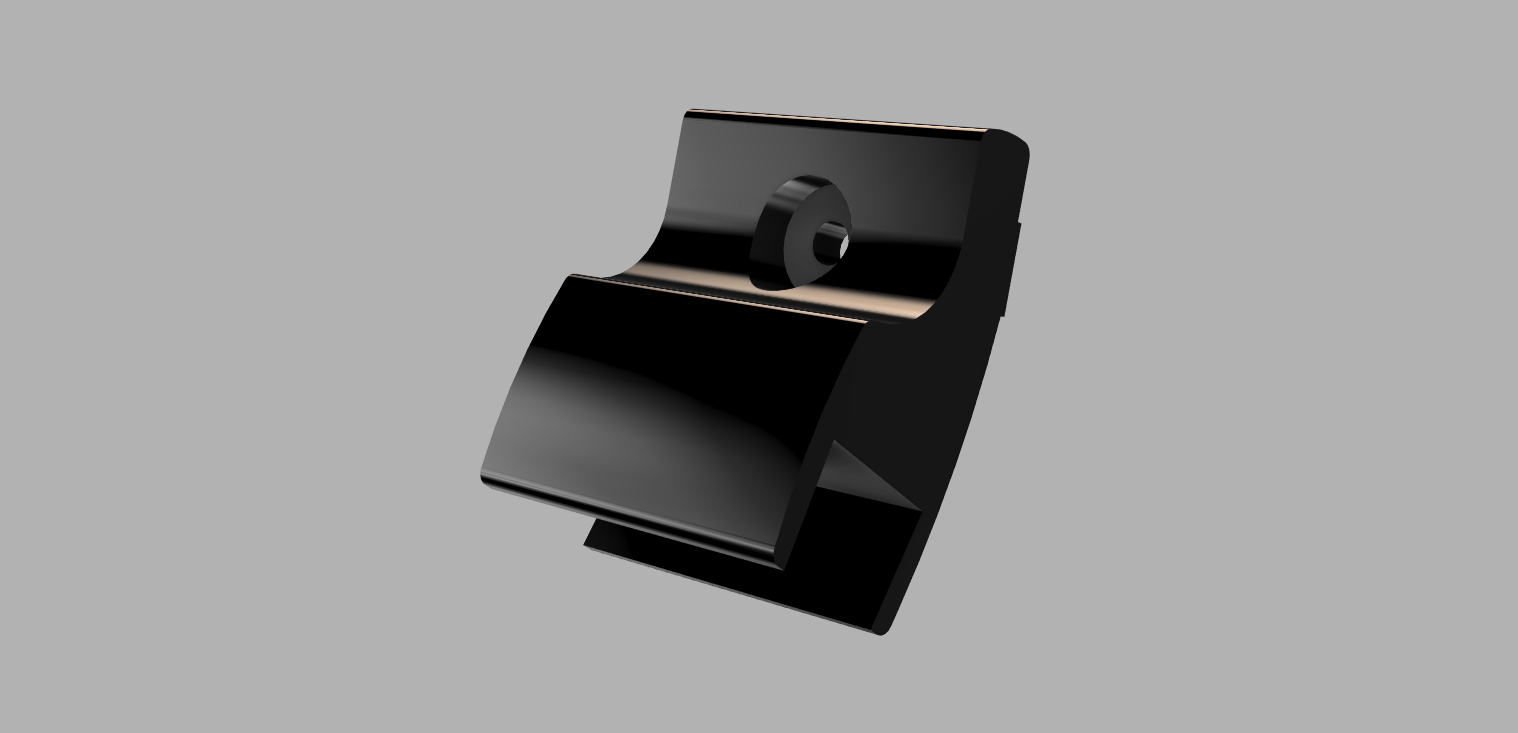

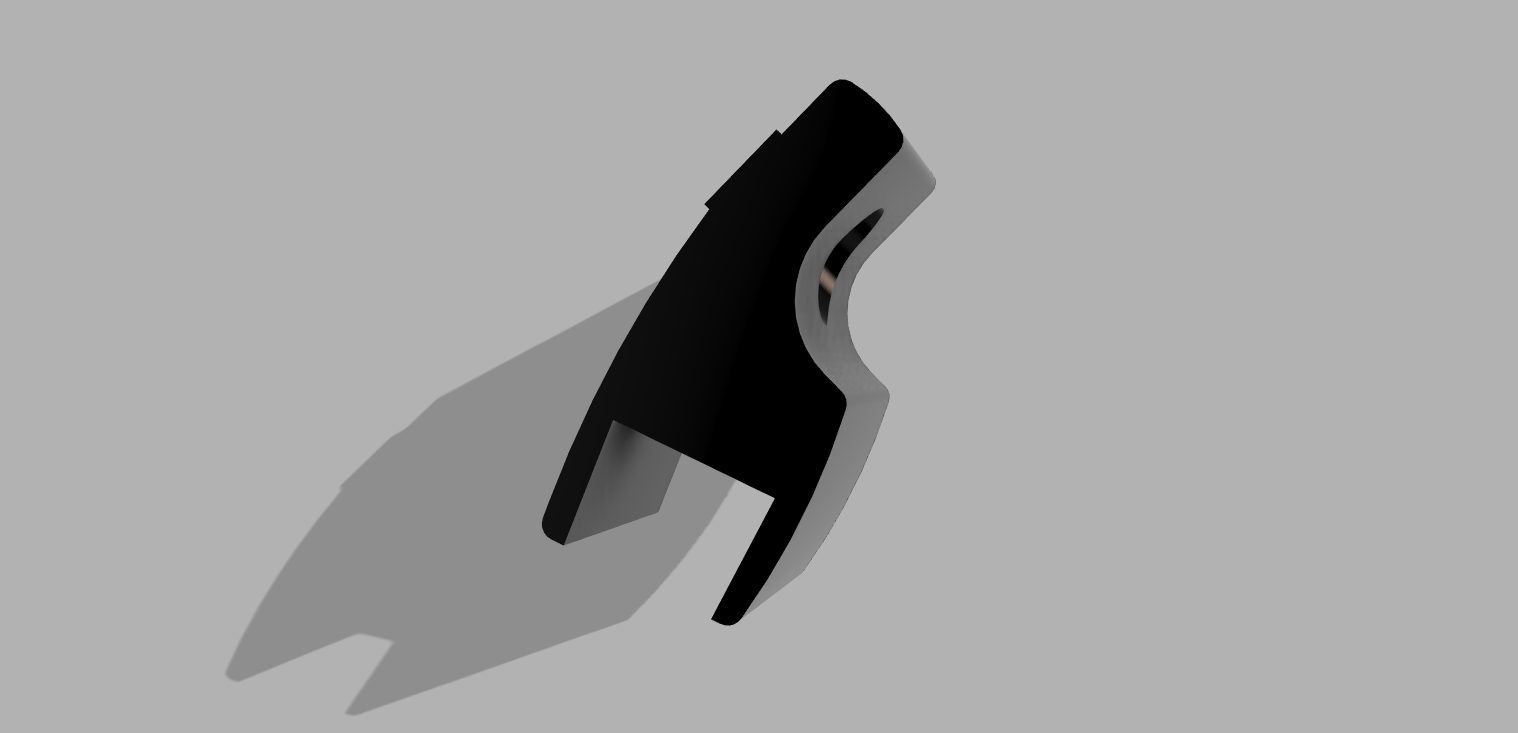

Dioder LED Mount Render #1 Dioder LED Mount Render #2 Dioder LED Mount Render #3
