Readme.md

_{A Team Dropbear Production}

Voron 2.4 cable tie mount for DIN rail

G'day, another nice thingy from down under: a simple bracket that allows fixing your cables with standard 3.5mm plastic cable ties in various positions. 4 ties per bracket, 2x2 criss-cross, so you can make bends or straights. The bracket needs 1 of rs25_psu_bracket_clip.stl.

Printing and plasic

Standard Voron part printing guidelines to follow: 0.4 nozzle, 0.2 layer height, etc.
This part is not exposed to any significant heat, so you could probably use even PLA.

Assembly

BOM:

2 x M3 hex nuts
2 x M3x12 SHCS screws
standard 3.5mm cable ties

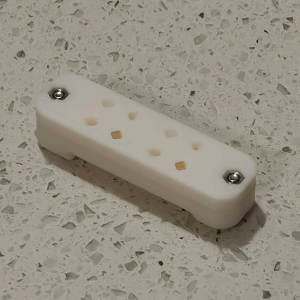

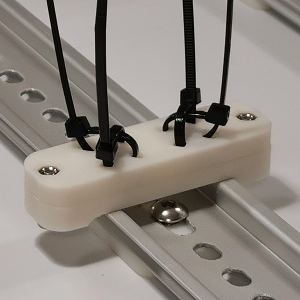

Photos

Credits

that russian guy (aeresov#9959)
