Hidden cable routing z belt cover mod

Credit

Mod based on the design of the Voron crew. Thank you for your awesome work!

Print settings

As stated in the Voron documentation:

ABS
0.2mm layer hight
0.4mm extrusion width
40% infill
wall count 4
top/bottom layers 5
no supports

Bom

Only the printed file.

Improvement

Added the possibility to route cables on the bottom of the cover.

Description

I liked the design of the old Voron 2.2 covers more than the current design so I based my mod on them.

This mod allows to route cables that are hidden in the extrusions to the bottom compartment. To achieve that the inner part of the z belt cover is a bit thicker and a path is cut out on the bottom where cables can be routed. The overall dimensions are the same as the stock 2.2 covers.

Note: Be careful to restrict the cable in the bottom compartment so it does not rub on your z-belts.

Pictures

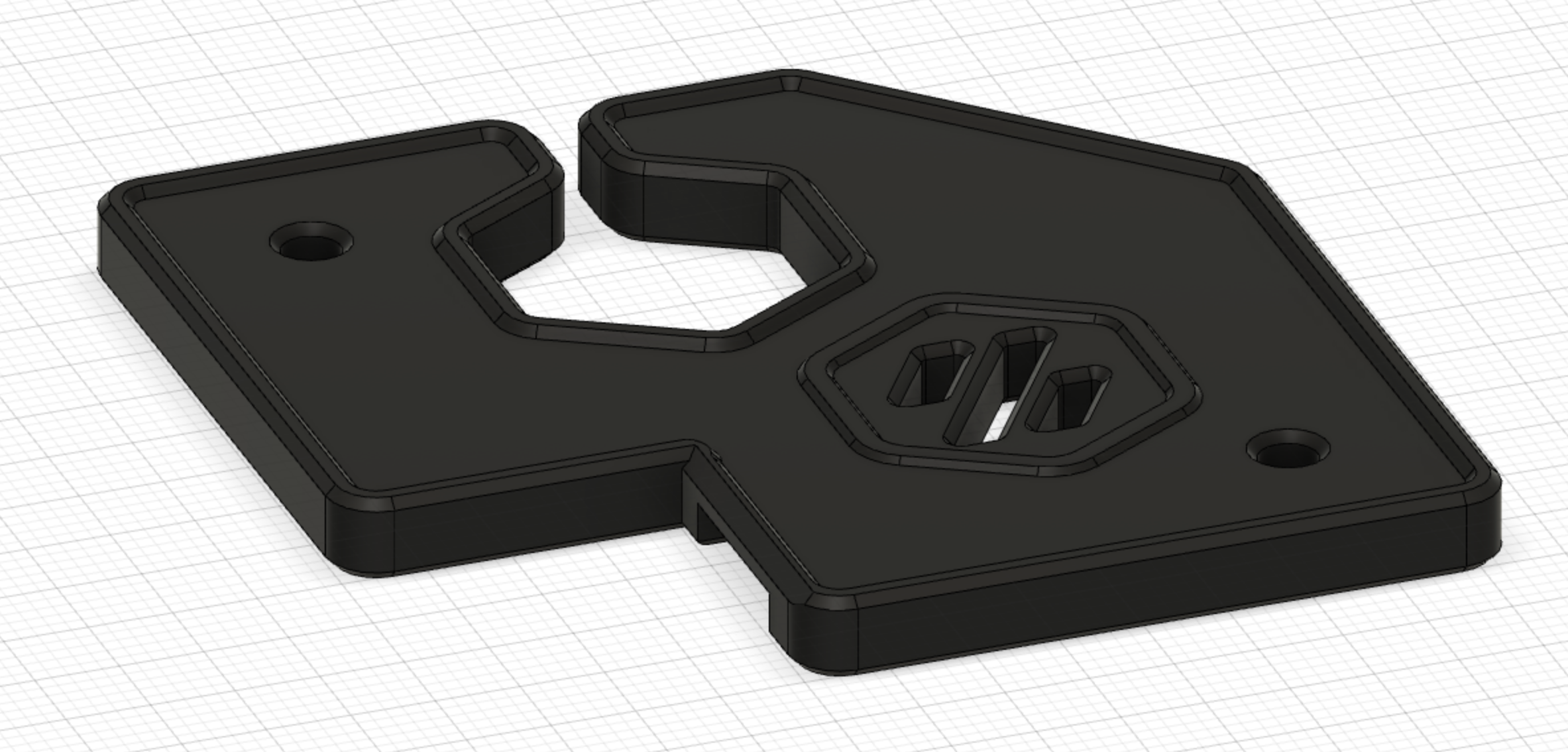

Top:

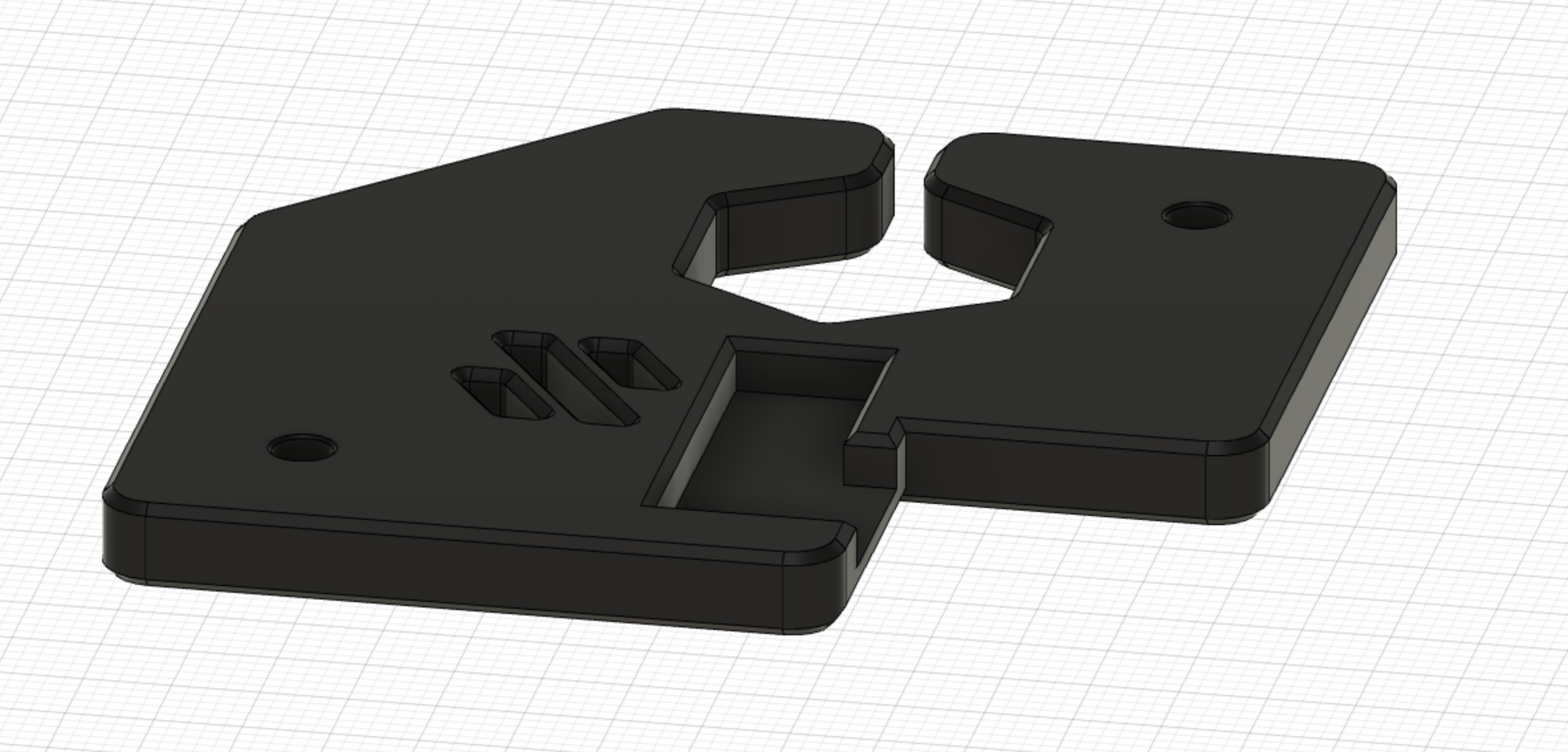

Bottom with path for routing cables:

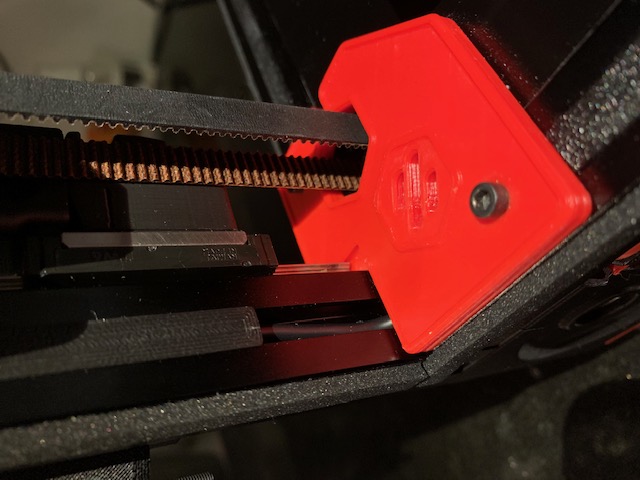

Cable routing:

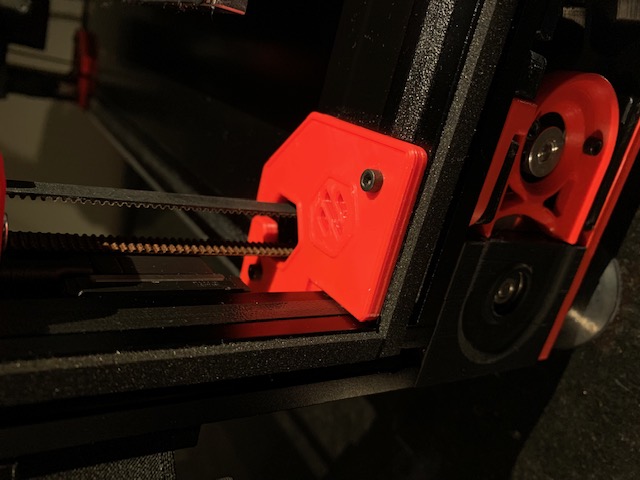

Closed:
