readme.md

Voron 2.4 GE5C Z joint

BOM

Screws

Size Qty
M3x12 4
M3x16 or M3x20 SHCS 16
M5x20 4
Ge5C Bearing 4
M5x1mm spacer 4
If using Halleffect 6x3 magnet 1

1

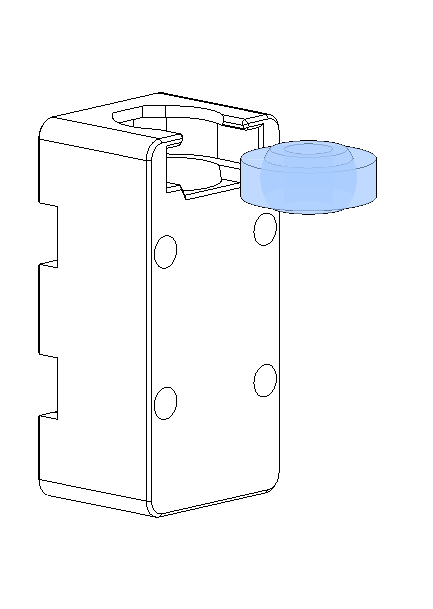

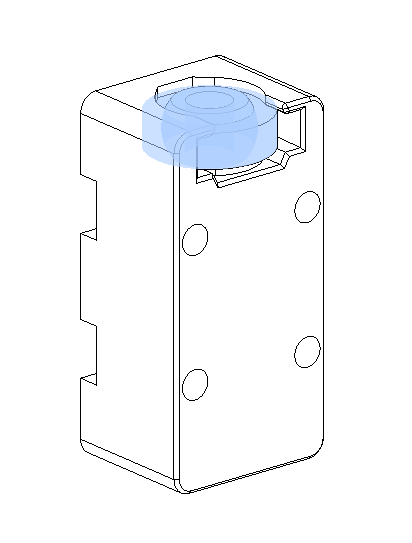

First just insert GE5C bearing , it should just pop in

2

1

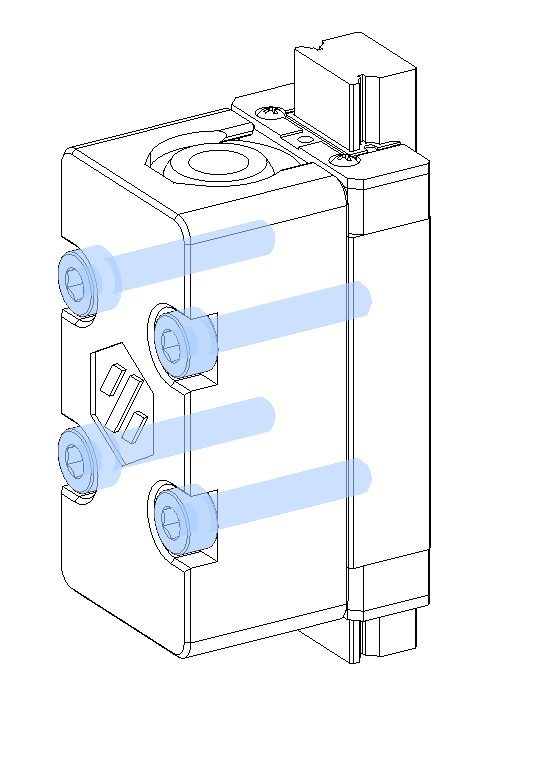

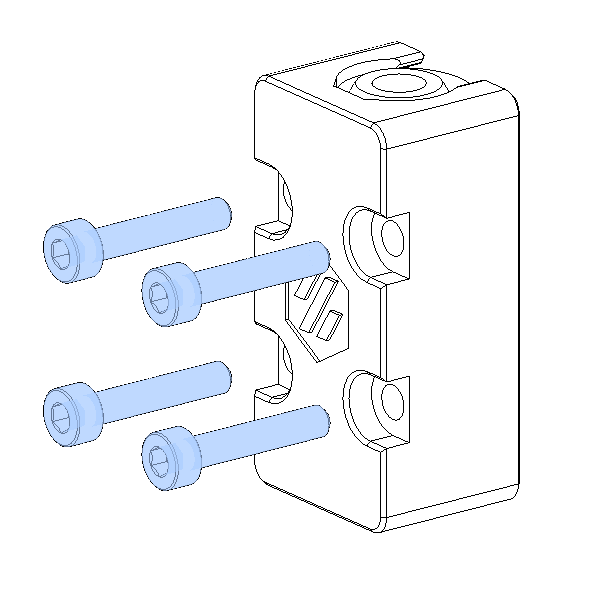

Now if you are using the "slim" version you need 4 m3x16 screws per z joint, if you are using the standard or hall effect version then you need 4 m3x20 per z joint.

1

1

1

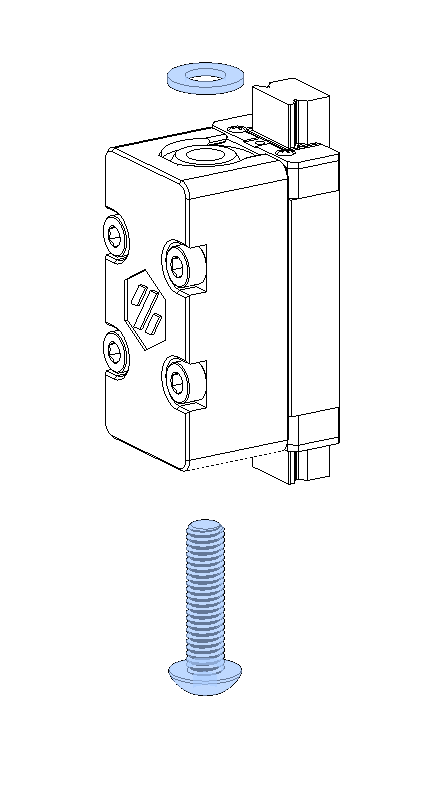

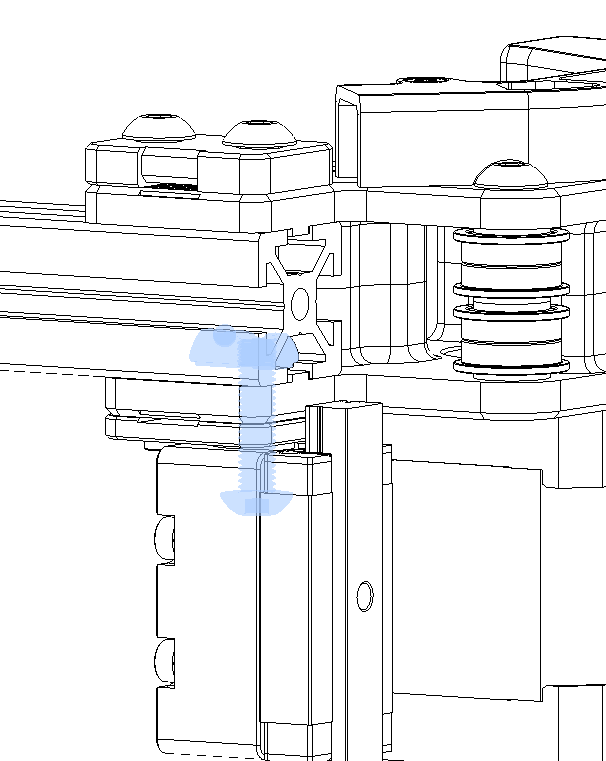

Use an M5x20 BHCS and 1 m5x1mm washer and screw it into the gantry using a roll in tnut

1

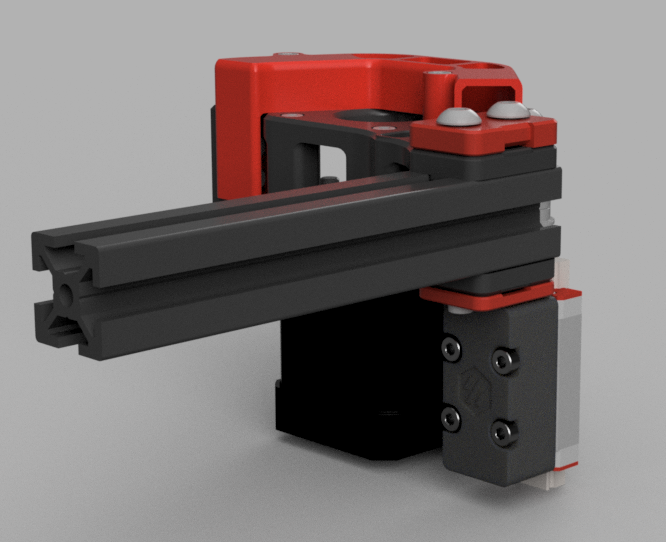

This is how it should be assembled when all done
