Simple LED-mount for Lumentech LT3 profiles.
Works with 8-12mm LED stripes

v0.1 needs two M3x10 screws / set and T- or hammerhead nuts to mount on normal 2020 extrusions.
v1.0 "AngryLED" needs two M3x20 screws / set and T- or hammerhead nuts to mount on normal 2020 extrusions.
-> optimized cable path so that the cable goes into the extrusion nut -> there is also a small version

v0.1

AngryLED v1.0

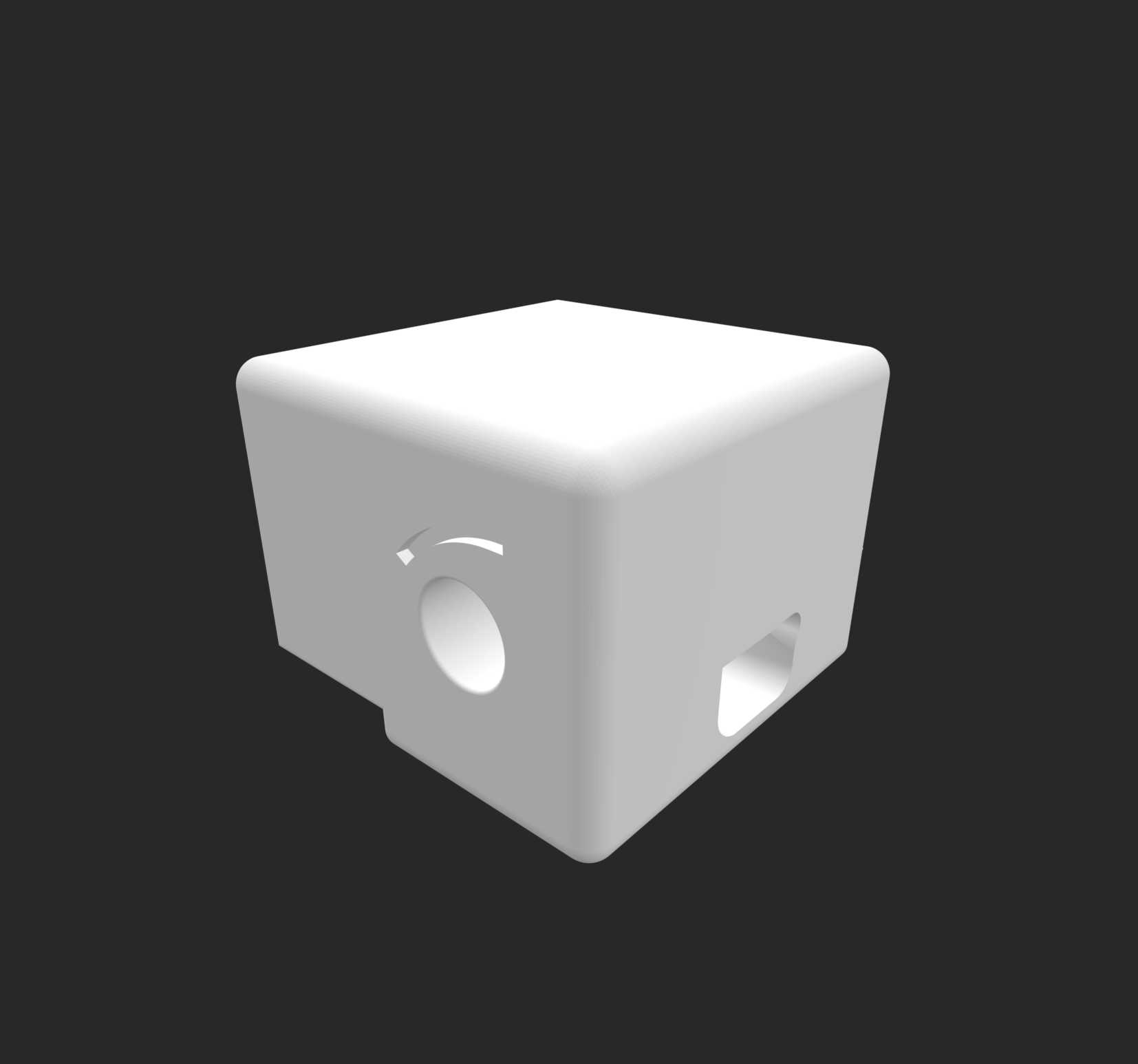

AngryLED small v1.0
