Fysetc S6 v2.1 config for Voron V0.1 (and maybe others)

This klipper configuration uses pin aliases. See below settings for the Fysetc S6 V2.1 menuconfig options that worked for me.

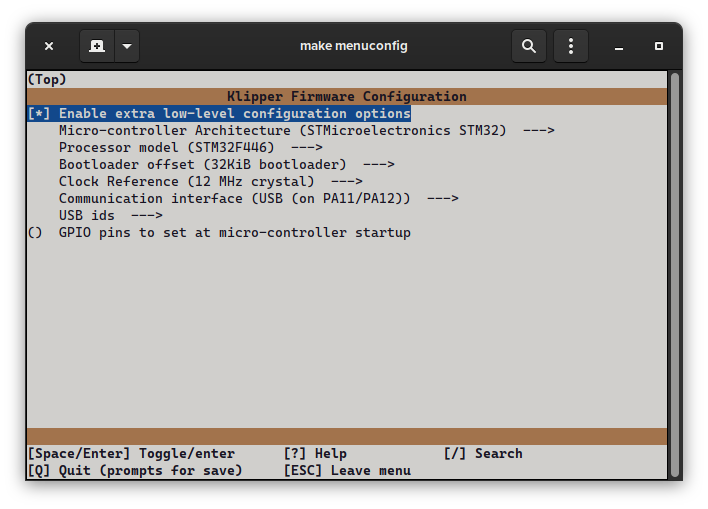

make menuconfig: STM32F446, 32KiB bootloader, 12MHz crystal, USB on PA11/12

The S6 V2.1 can be flashed via make flash FLASH_DEVICE=0483:df11 if you place a jumper connecting BOOT0 to 3.3V while it's powering up. Otherwise, you can also flash via microSD card. MBR partition table, FAT32. Make sure to name your new firmware image firmware.bin or else it won't flash.

Ping @clee#1337 on Discord if you have issues.
