Voron Trident

Notes for building on a Voron Trident

  • Trident is compatible with Mantis using the files for 2.4.
    • Thanks to WingZero for testing this.

Voron 1.8

Notes for building on a Voron 1.8 (NOT trident)

  • You will need to cut the rearward “ears” off the 5015 fans for clearance.
    • OscarGM was able to get the standard length ducts (found in the 2.4 folder) to clear. It looked tight, but it did clear.
    • The ducts in the 1.8 folder have 2mm extra clearance, and should clear with most fans.
    • The reason 1.8 needs the ears cut is because the duct start to look ridiculously long due to the inverted nature of the 1.8 gantry.
  • Acknowledgements:
    • Just wanted to thank GarretWP, OscarGM, and Koonweee for being the brave souls to test and work with me to get it working with 1.8.

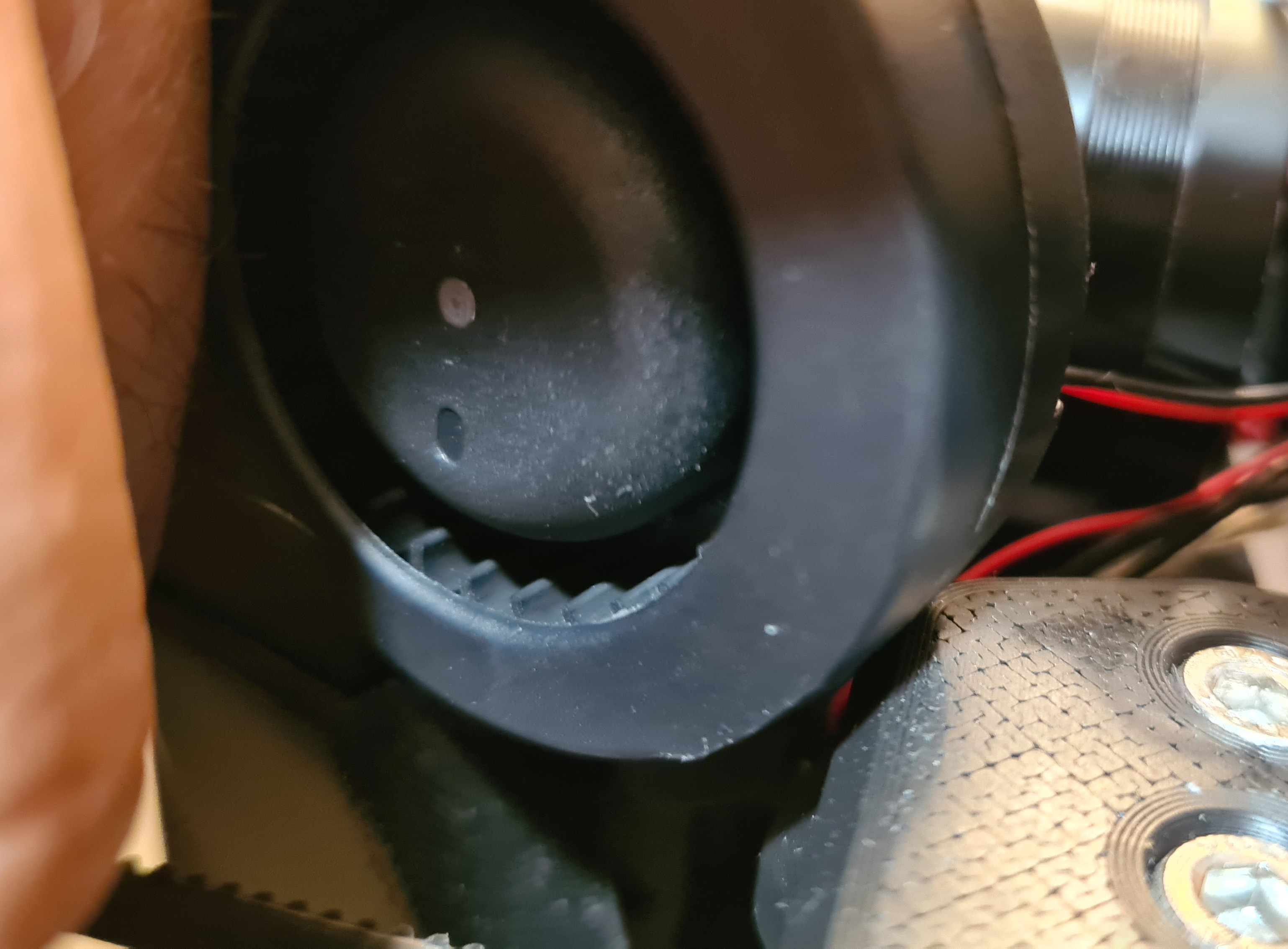

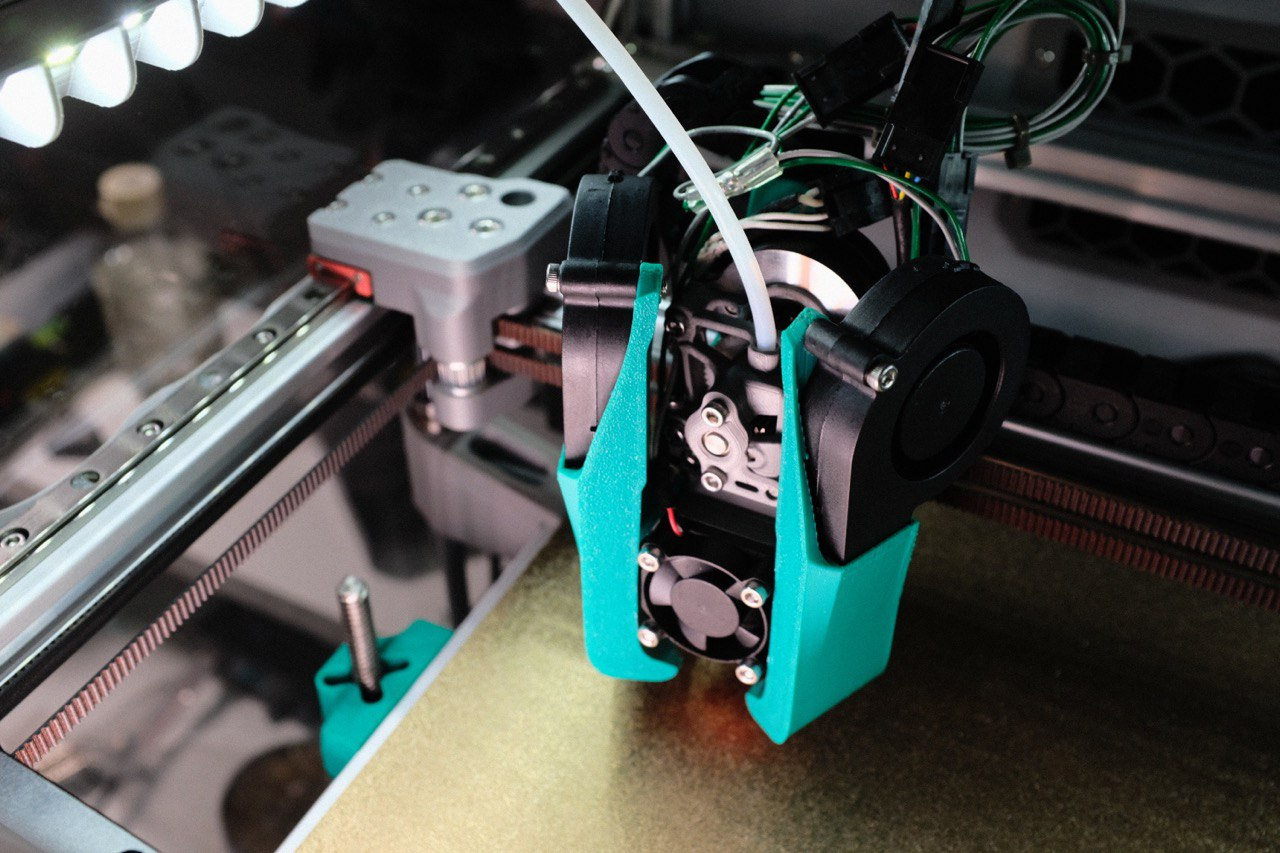

Koonweee’s Voron 1.8 using 2mm extended ducts OscarGM’s Voron 1.8 with 2.4 ducts (clearance by cutting the 5015 ears)
