🌟LILYGO T-0.99TFT🌟
English | 中文
Quick start:
- Install the current upstream Arduino IDE at the 1.8 level or later. The current version is at the Arduino website.
- Start Arduino and open Preferences window. In additional board manager add url: https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json .separating them with commas.
- Select Tools -> Board Management -> Search for ESP32 and install
- Select Tools -> Board ->
- Copy the folder in the 'lib' directory to '~Arduino/libraries'
- Define pins and select display direction in TFT GC9D01N.h
default setting
| PIN | |
|---|---|
| TFT_MISO | -1 |
| TFT_MOSI | 10 |
| TFT_SCLK | 20 |
| TFT_CS | -1 |
| TFT_DC | 2 |
| TFT_RST | -1 |
| TFT_BL | 8 |
Product 📷:
| Product | Product Link |
|---|---|
| T-0.99TFT | AliExpress |

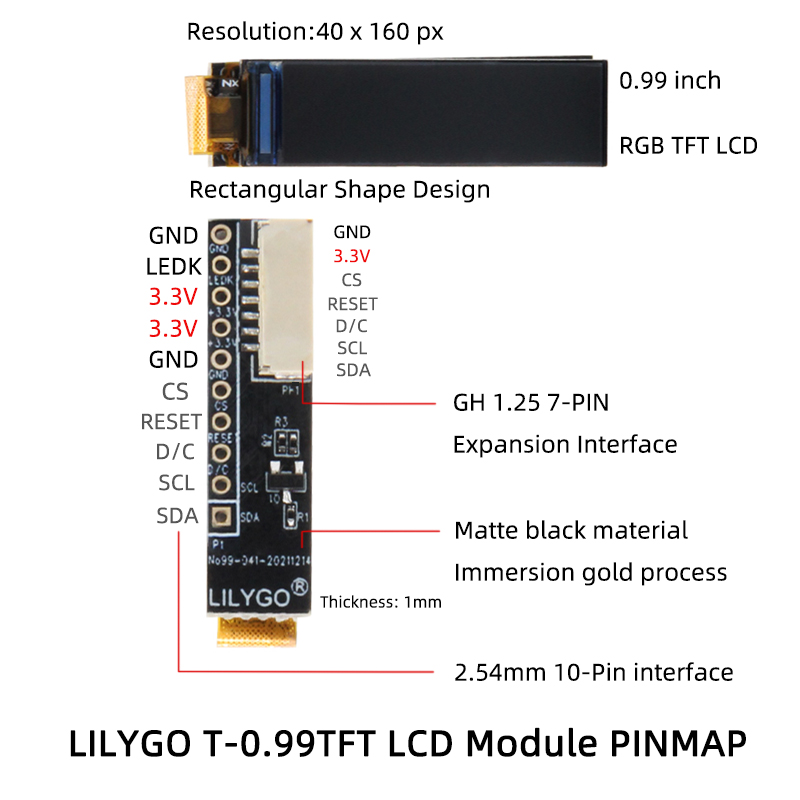

Pinout
