MGN9C X axis

This replaces the MGN7H rail on the V0.1 X axis with a single MGN9C rail.

Required hardware

In addition to things you can reuse from the stock build, these items are required:

  • 1x MGN9C-150mm linear rail
  • 7x M3x8
  • 7x M3 Nuts

Instructions

Assembly is exactly the same as the stock V0.1 X axis

Images

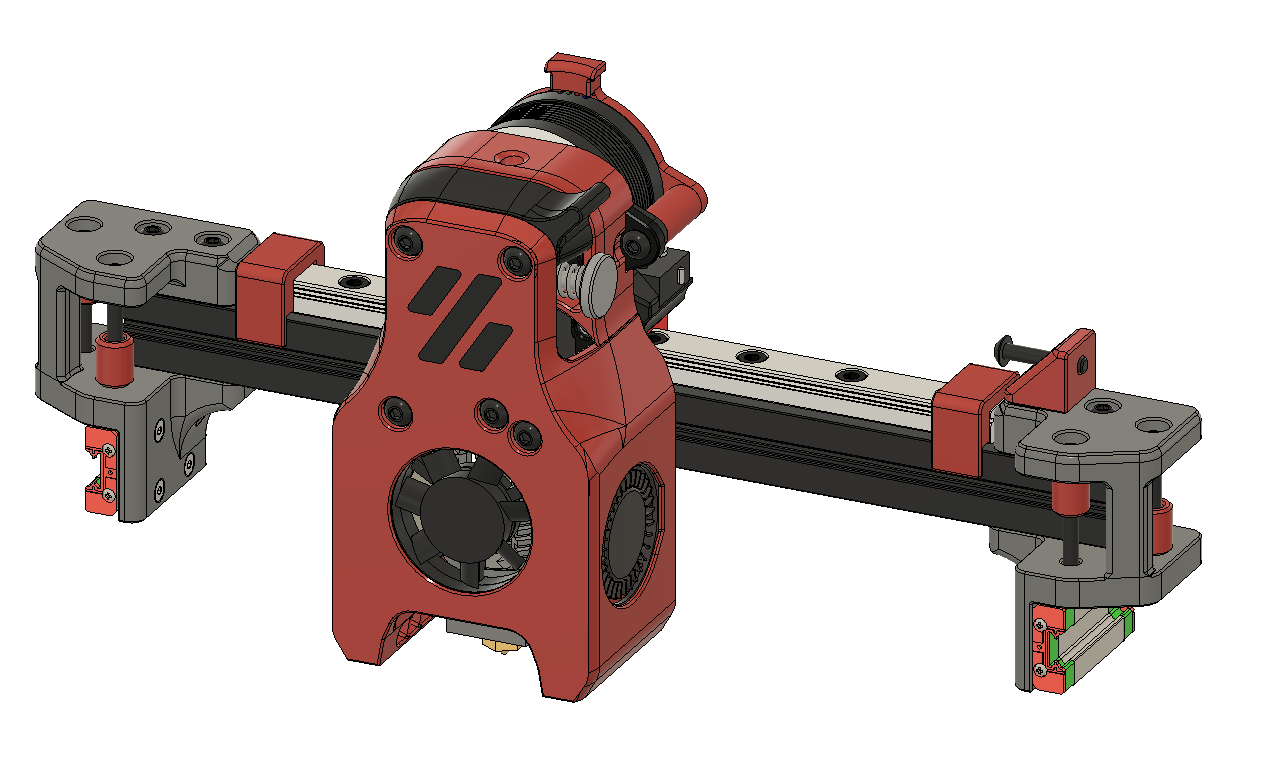

X-axis rendered

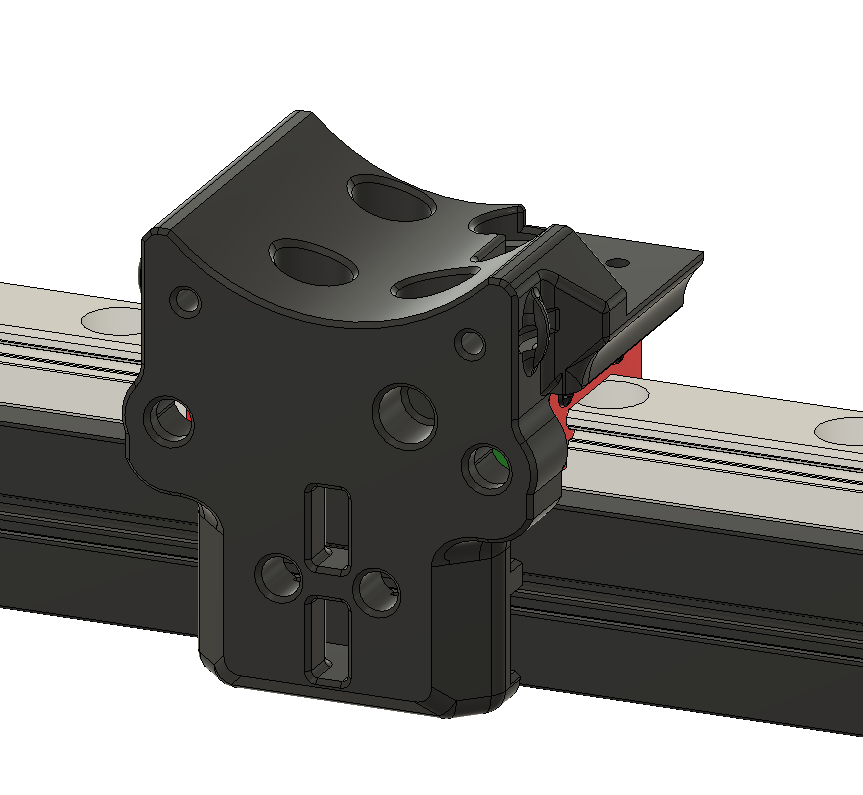

Carriage rendered
