Voron 0.1 skirt buttons

Instructions

For each button you will need to print: 1x Nut.stl, 1x Lock.stl, 1x Button-<name>.stl

  1. Print with a 0.1mm layer_height (after the first layer) to improve the quality of the threads,
  2. Solder two wires toward the inside of the legs of a 5mm tactile switch, add some heatshrink,
  3. Push the 5mm tactile switch into the button housing and snap the locking piece behind,
  4. Install the button throught a hexagonal hole in the skirt and screw the printed nut behind,
  5. Optional, use the hole in the locking piece and a ziptie for attaching the cables (strain relief).

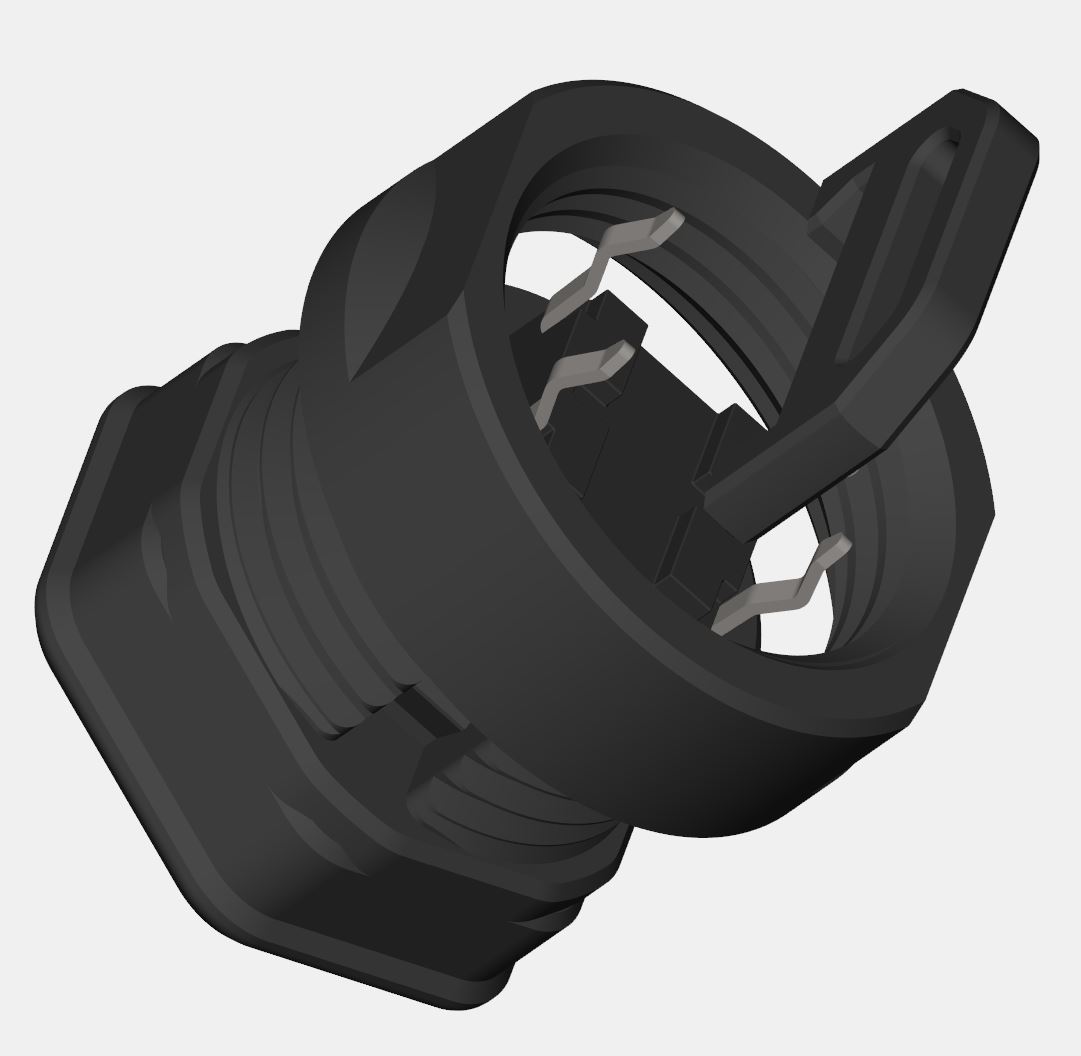

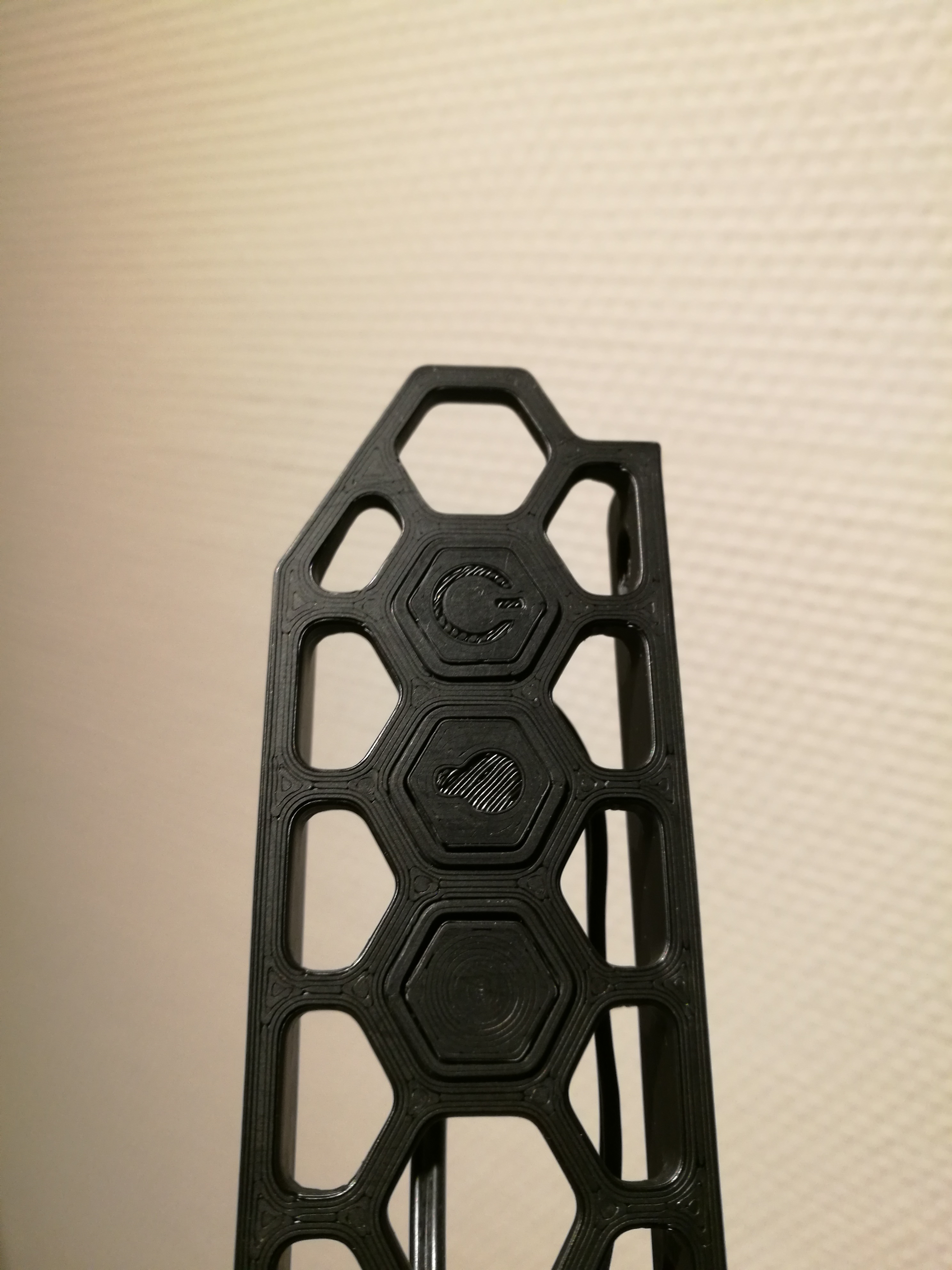

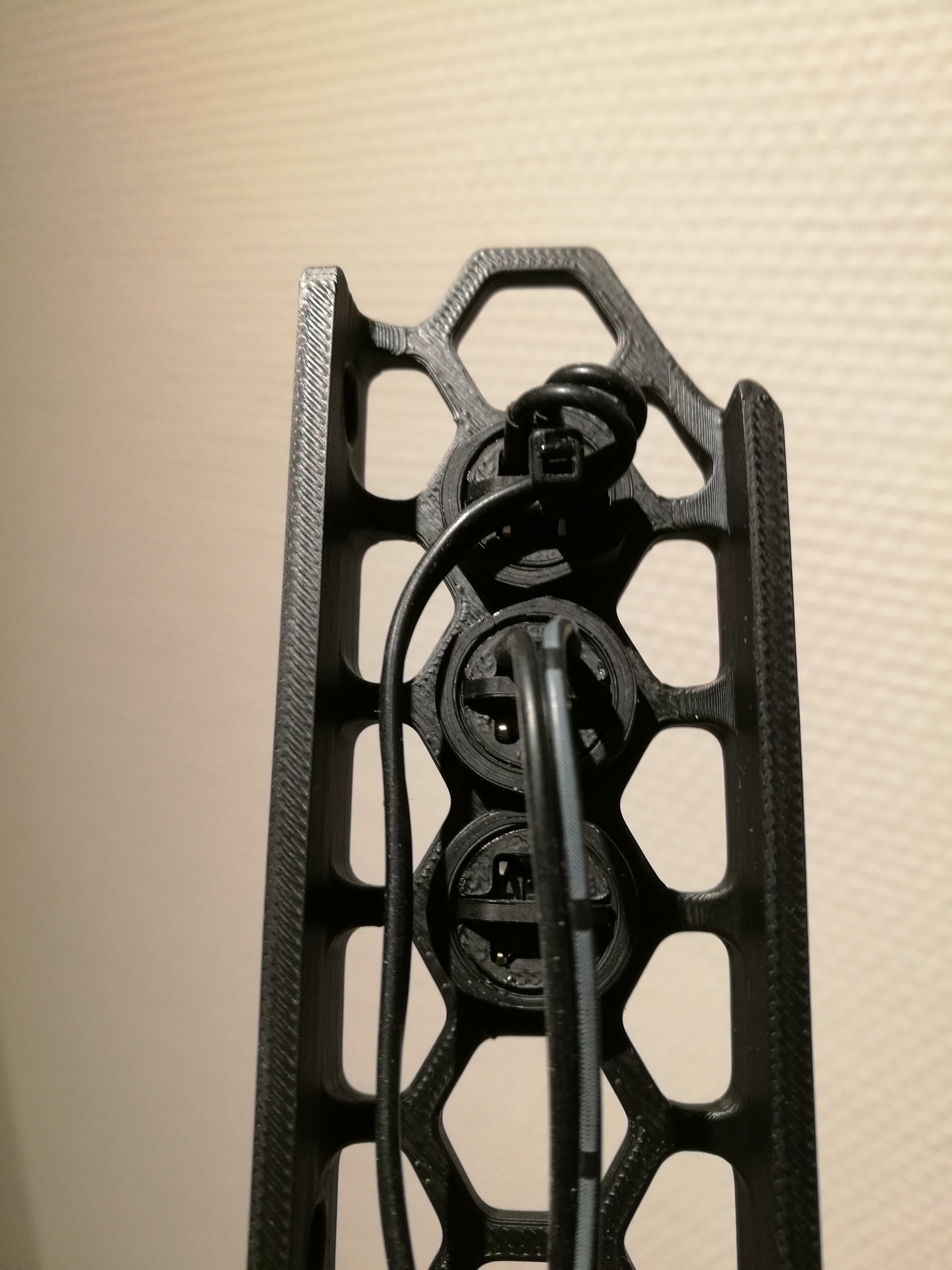

CAD photo1 photo2
