FYSETC SPIDER DIN Bracket

Minimalist DIN bracket for the FYSETC SPIDER, based on the simple design of the core SKR bracket. It uses a standard build pcb_din_clip_x3.stl, and provides integrated horizontal and vertical mount options so you can choose on the fly.

Printing

Use the standard Voron 2.4 recommended print settings.

BOM

  • 4 x M3x8 SHCS screws
  • 1 x pcb_din_clip_x3.stl
  • 2 x whatever hardware you use to mount your other pcb_din_clip_x3.stl clips (I use M2x6 screws, but the BOM self-tapping screws work as well).

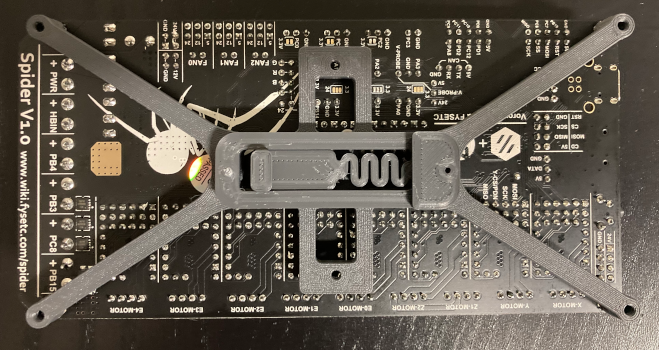

Images
