README.md

DS18B20 Mount

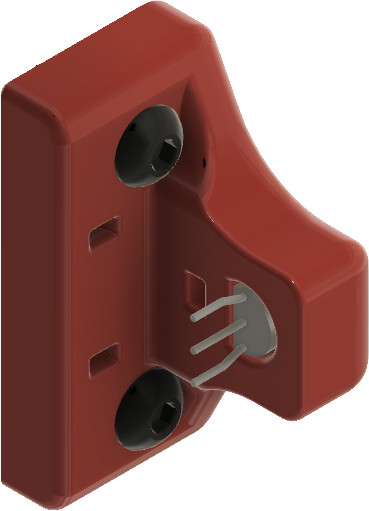

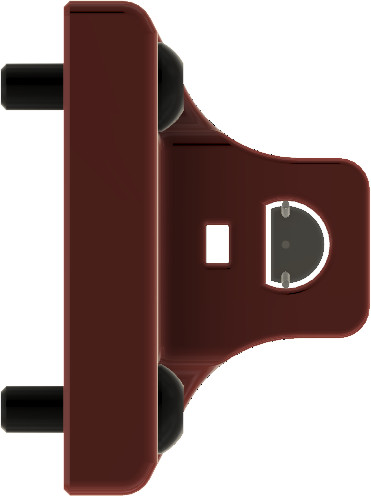

Simple DS18B20 temperature sensor mount based on the z endstop mount.

BOM

1x DS18B20 / DS18B20-PAR
1x 4.7kohm resistor
2x M3x10 BHCS
2x M3 nuts
1x zip tie

Instructions

Drill hole in rear panel for wires
Solder/connect sensor, wires, resistor and 4x2 dupont connector
Position sensor in hole
Bend sensor leads and secure with zip ties
Secure mount in place similarly to z endstop mount
Setup Raspberry PI for 1 wire (see https://www.circuitbasics.com/raspberry-pi-ds18b20-temperature-sensor-tutorial/ for a good tutorial)
Setup sensor in Klipper

[temperature_sensor chamber]
sensor_type: DS18B20
serial_no: <insert serial no here>
sensor_mcu: rpi

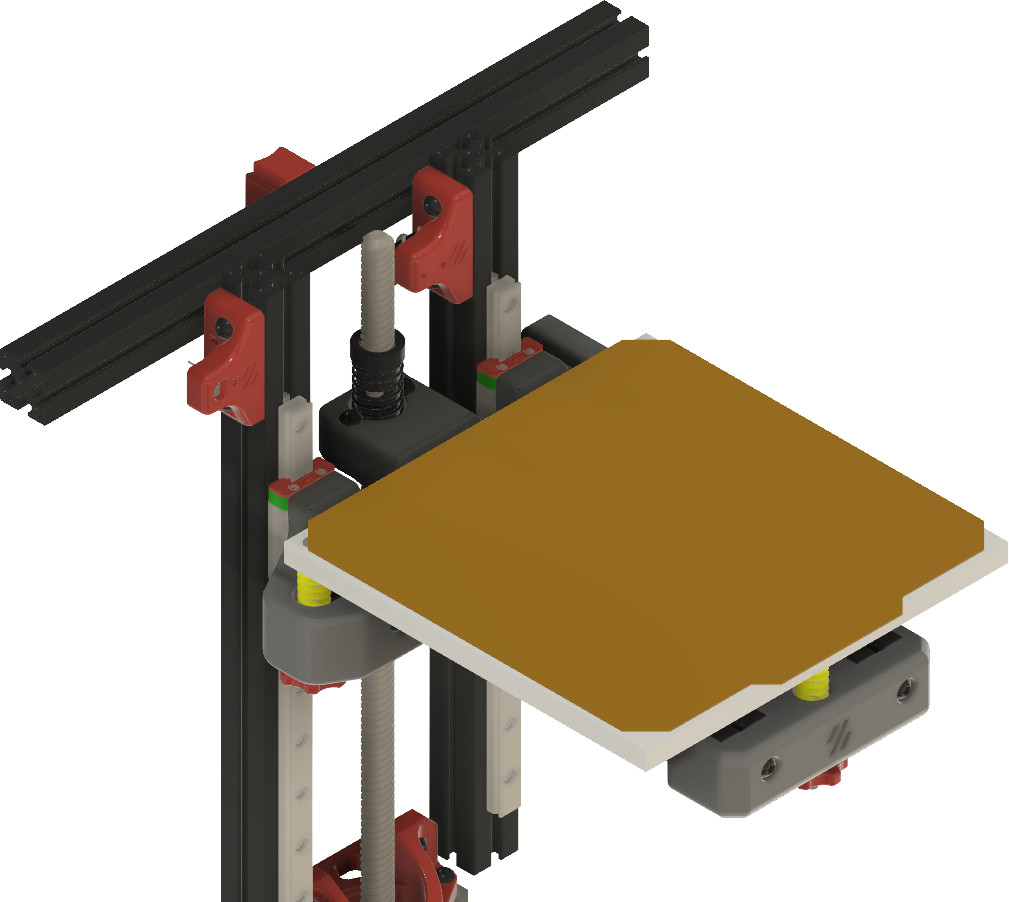

Note: you can also position the mount on the inner side of the z axis rails which looks better, but also potentially block access to the z axis for later maintenance.

Images

Example setup using a DS18B20-PAR:
