README.md

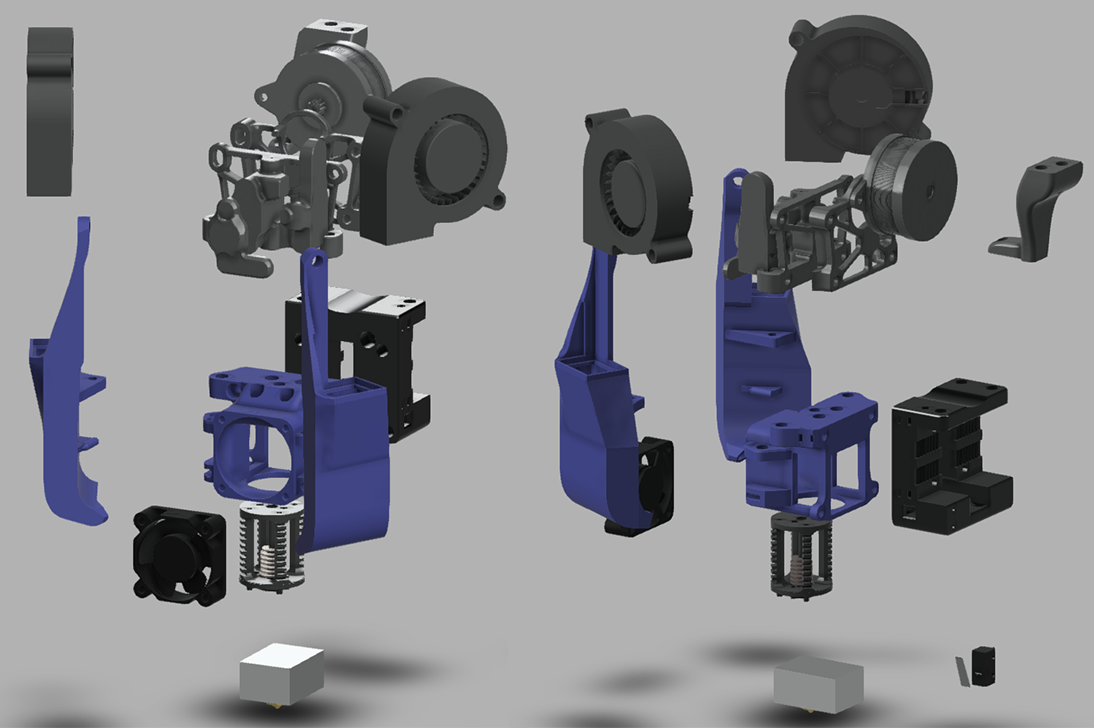

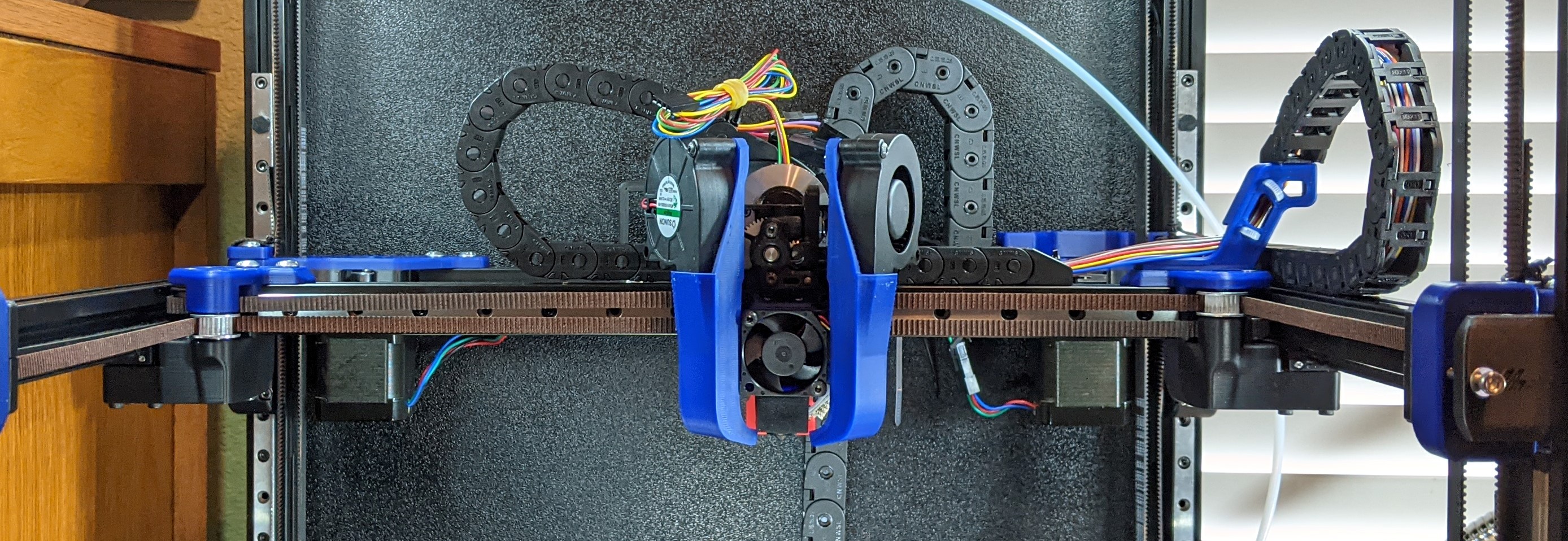

Mantis Dual 5015 Toolhead by Long

Please see the (Readme_v1.07.pdf) for full description, bom, etc

Changes

9-23-2021

  1. Added carriage for Mantis that uses a single MGN9 linear rail. I am currently using this with a RobotDigg 440 SUS rail and it's working well. Thanks to Bob Arctor and Henrikssn for their bravery in testing the early versions of this.
  2. Updated (Readme_v1.07.pdf). Added info for the MGN9 Carriage, fixed some wording, added link to Rama's option for narrow front idlers.
  3. Added ducts for Voron 2.4 that are 1.5mm shorter. Decreases the clearance from 3.5 to 2mm. No real advantage except if you like the shorter duct arm appearance.

7-18-2021

  1. Now compatible with Voron 1.8!
  2. updated readme
  3. changed directory structure for clarity
  4. magprobe dock arms v1.5 - new version of dock arms (for bed and gantry mount) which are tighter and longer (thanks to ShinyPants for lots of testing with these)
  5. carriage_v1.037 - minor revision adds a hole on the left side for ADXL mounting (thanks koonweee)
  6. chain_anchor_v3.2 - moved the front ziptie location higher. added a rear ziptie location. (thanks koonweee)
  7. mantis_v1.037a.step updated - includes the above changes
