Jigs for assembling V1.8

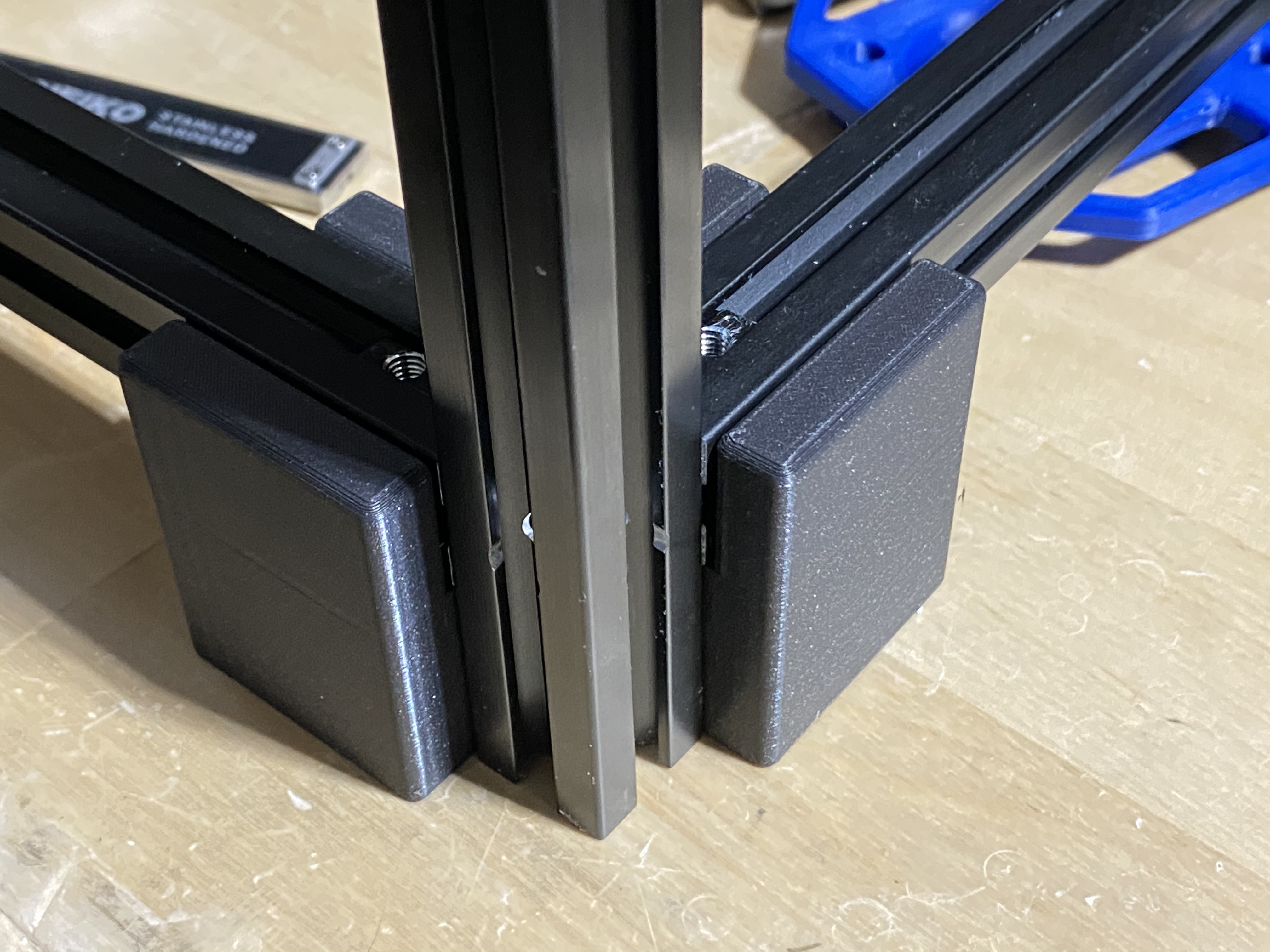

Lower Extrusion Jig

Overview

These jigs are for aligning extrusions when building V1.8. This allows you to precisely align the extrusions with a minimal amount of work.

Printing instructions

Pretty much anything works. A good starting point is 2 perimeters and 10-15% infill.

Usage

Loosely assemble the extrustion blind joint and then place the entire blind joint onto the jig. While on an extremely flat surface, press down firmly on both horizontal extrusions and tighten the blind screws.
