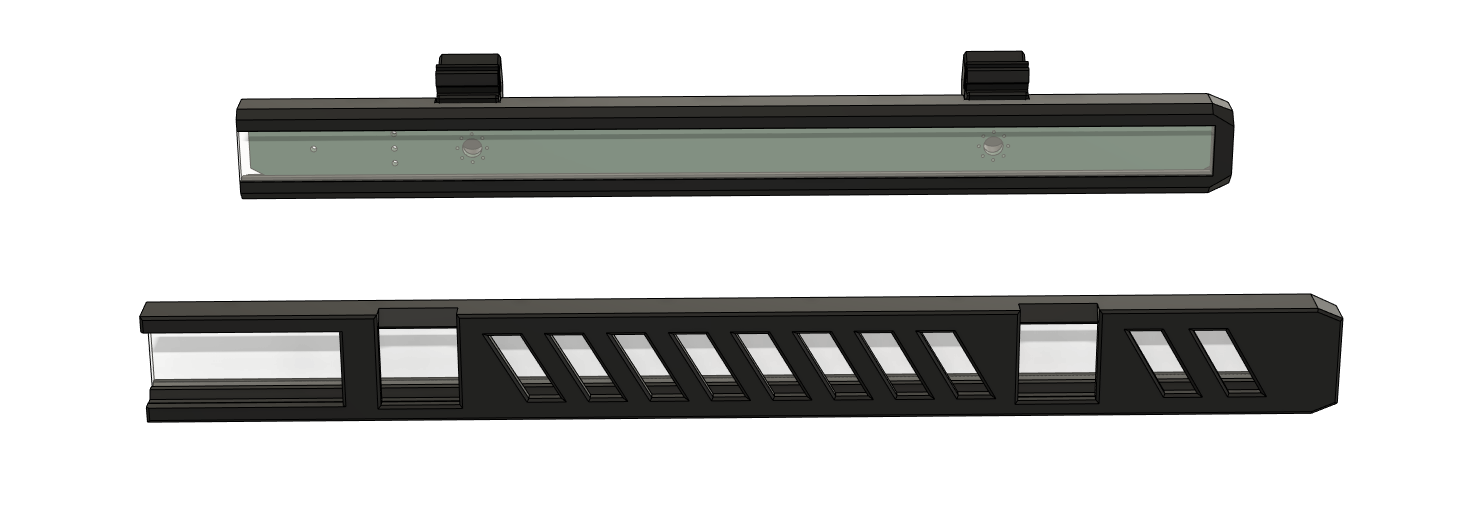

Matchstick Diffuser

A diffuser for the Daylight/Rainbow on a Matchstick LEDs

Compatibility

These mounts are only designed to fit the Daylight-on-a-matchstick and Rainbow-on-a-matchstick LEDs. Compatibility is not guaranteed with other designs.

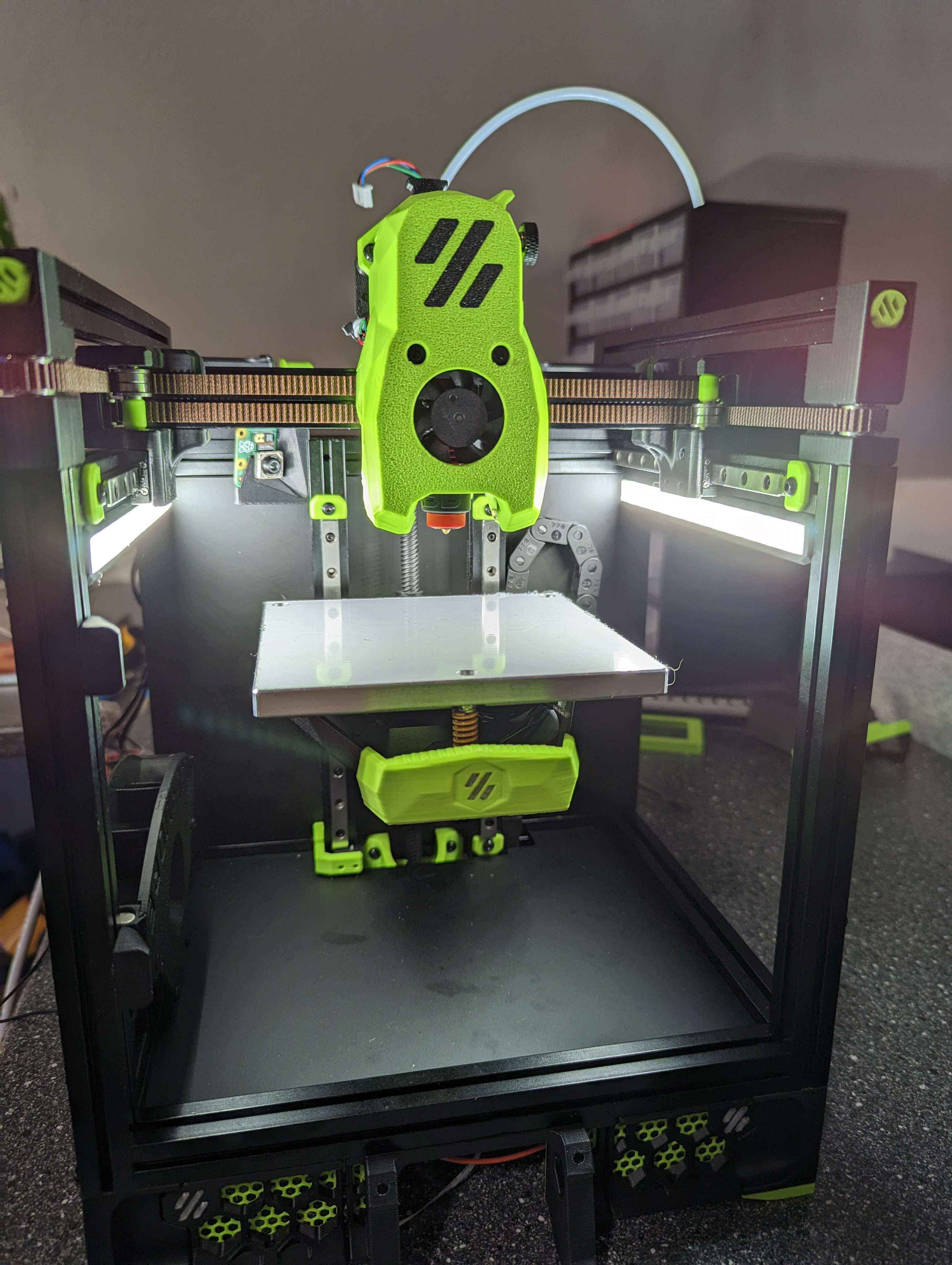

These prints require slightly larger than a 120x120 bed, so they cannot be printed on a V0, though they are designed to be used on one.

BOM

Item	Qty
M3 Heatset Insert	4
M3x6 BHCS	4

Printing

• Print one of each main_body_daylight_A.stl and main_body_daylight_B.stl if you have Daylight on a Matchstick
• Print one of each main_body_rainbow_A.stl and main_body_rainbow_B.stl if you have Rainbow on a matchstick
• Print 2 [c]_diffuser_x2.stl in a clear or white filament.
• Print 4 of either top_mount_clip_x4.stl or bottom_mount_clip_x4.stl depending on where you intend to mount the LEDs.

Assembly

• Insert heatset inserts into the clips
• Insert matchstick led strip into main body
• Using M3x6 BHCS, fasten the clips to the back of the leds
• Insert the diffuser into the main body
