_{A Team Dropbear Production}

Voron 2.4 MeanWell UHP PSU mount for DIN rail

G'day, another nice thingy from down under. MeanWell UHP PSUs are great: nice, slim, compact, mains and DC on opposite sides... Well, but how to mount them on DIN rais? Alright, Dropbears to resque. Pick an adapter for your UHP (they have different width), print 2 of them and 4 of rs25_psu_bracket_clip.stl.

Printing and plasic

Standard Voron part printing guidelines to follow: 0.4 nozzle, 0.2 layer height, etc.
This part is not exposed to any significant heat, so you could probably use even PLA.

Assembly

BOM:

8 x M3 hex nuts
8 x M3x12 SHCS screws
4 x M3 suare nuts
4 x M3x10 SHCS screws

Put square nuts in slide pockets, secure them with screws, then bolt down rs25 brackets, so square nuts are trapped.

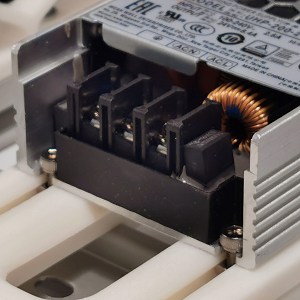

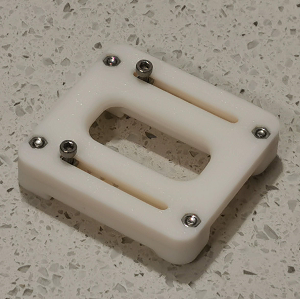

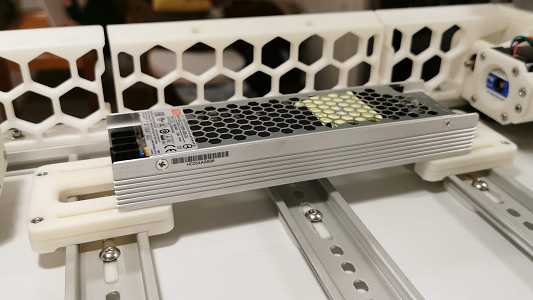

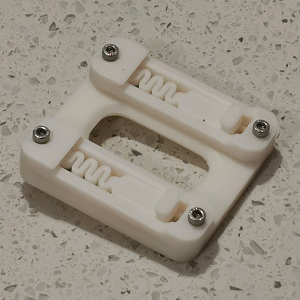

Photos

Credits

that russian guy (aeresov#9959)
