README.md
Voron0 dual color skirt set (SSR, PowerSwitch, Nameplate)
To match the skirt with the Midpanel with Hex Pattern by sterminatore's idea
print settings:
- layer height: 0.2mm
- color change at 0.6mm / 2.2mm

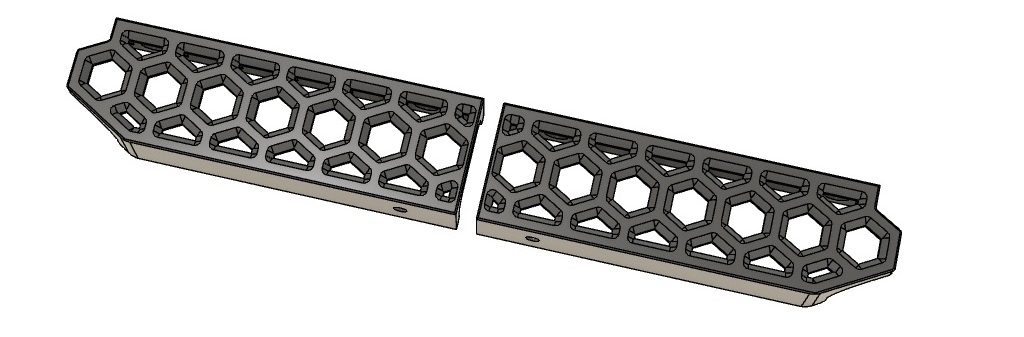

Skirt.stl, Skirt_mirror.stl
Left and right skirt part with 40 degree chamfers for color change printing. There is an extra hole for tightening the middle M3 screw.

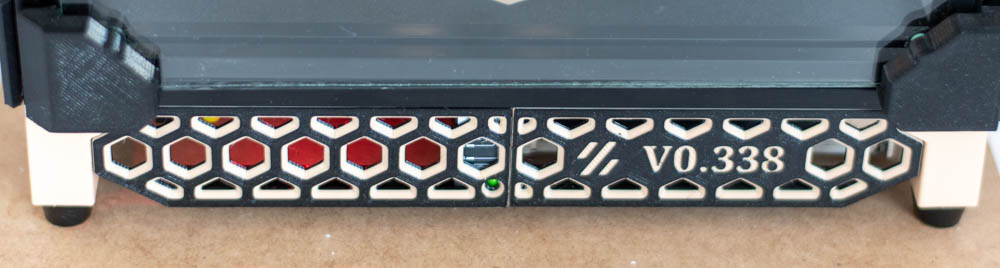

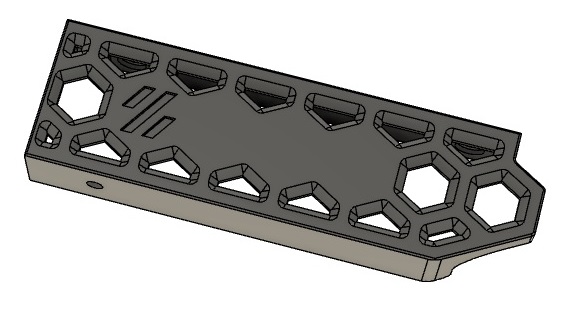

Skirt_EmptyNameplate.stl
Empty nameplate for serial number. For example, with Tinkercad you can easily put the number on it.
Here's a quick tutorial:

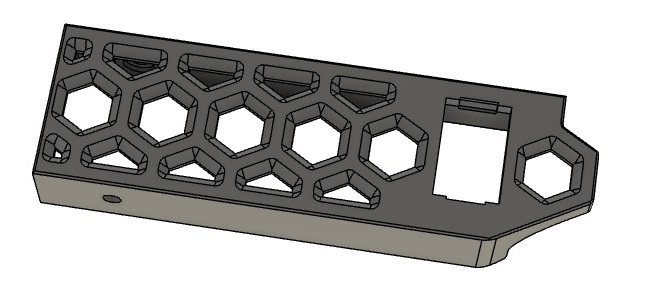

Skirt_SSR.stl
SSR holder with led window.

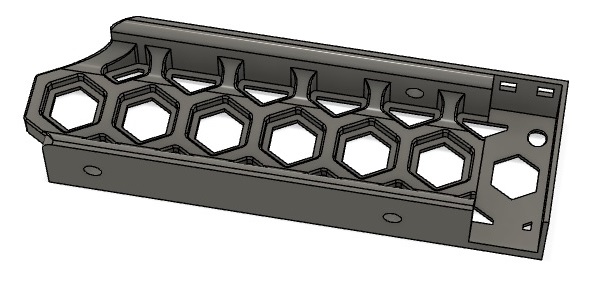

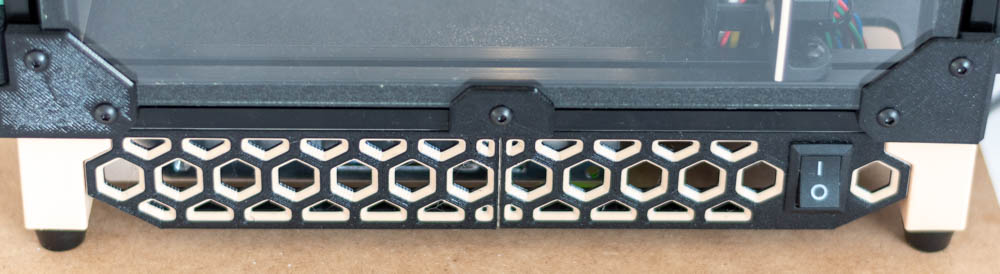

Skirt_PowerSwitch.stl
12mm x 19mm windows for power switch.
- Example power switch on aliexpress: On/Off Switch 6A-10A 110V 250V 21MM*15MM

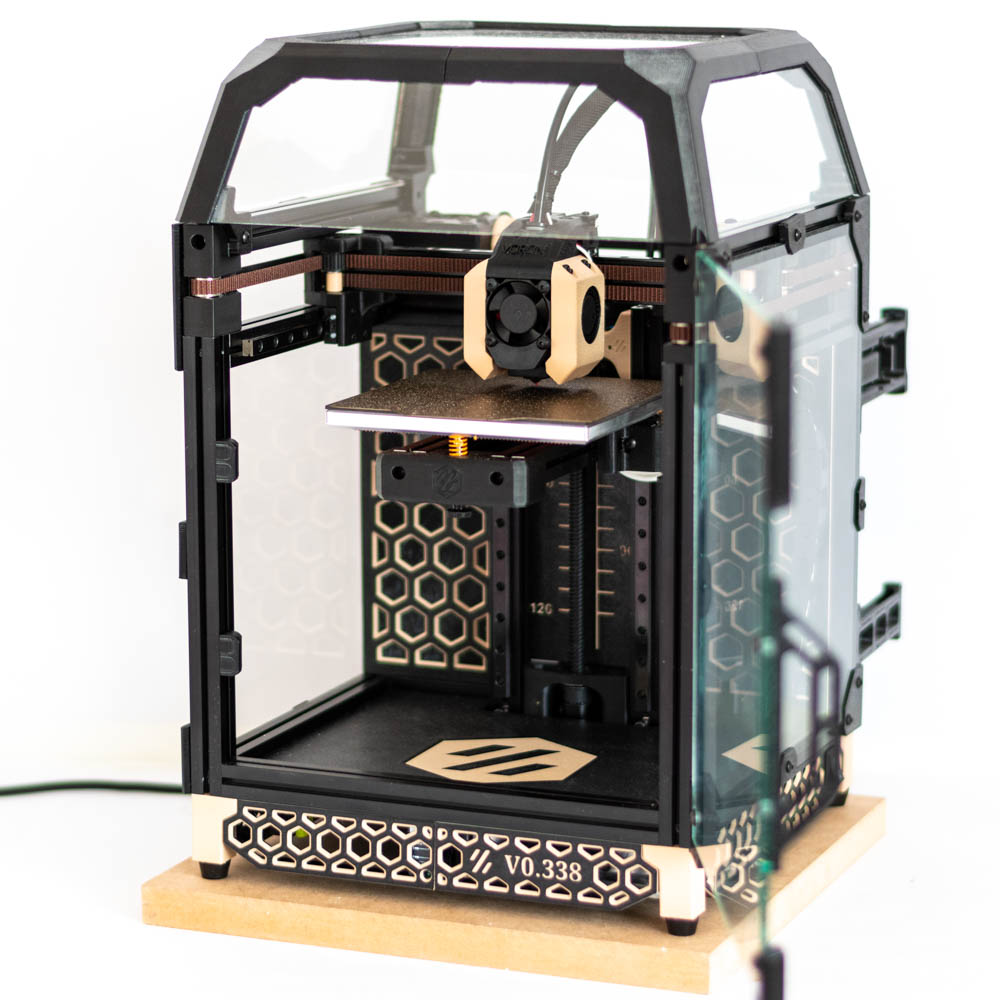

Overview
