Dual SKR 1.3 Mounts

These are a few Dual SKR 1.3 mounting options. These will fit on a 200mm bed, however you may have to adjust your skirt size. I had to use 1 skirt at 2mm on my 200x200 backup printer.

Fanless
Dual 40mm fans
Dual 40mm fans without top mounts

Hardware required

Quantity	Description
0/4/8	M3x16 SHCS (size these for your fans, mine required 16mm)
8	M3x8 SHCS (for mounting the boards, M3x6 will work as well
2	M5x10 BHCS
2	M5 T-nut

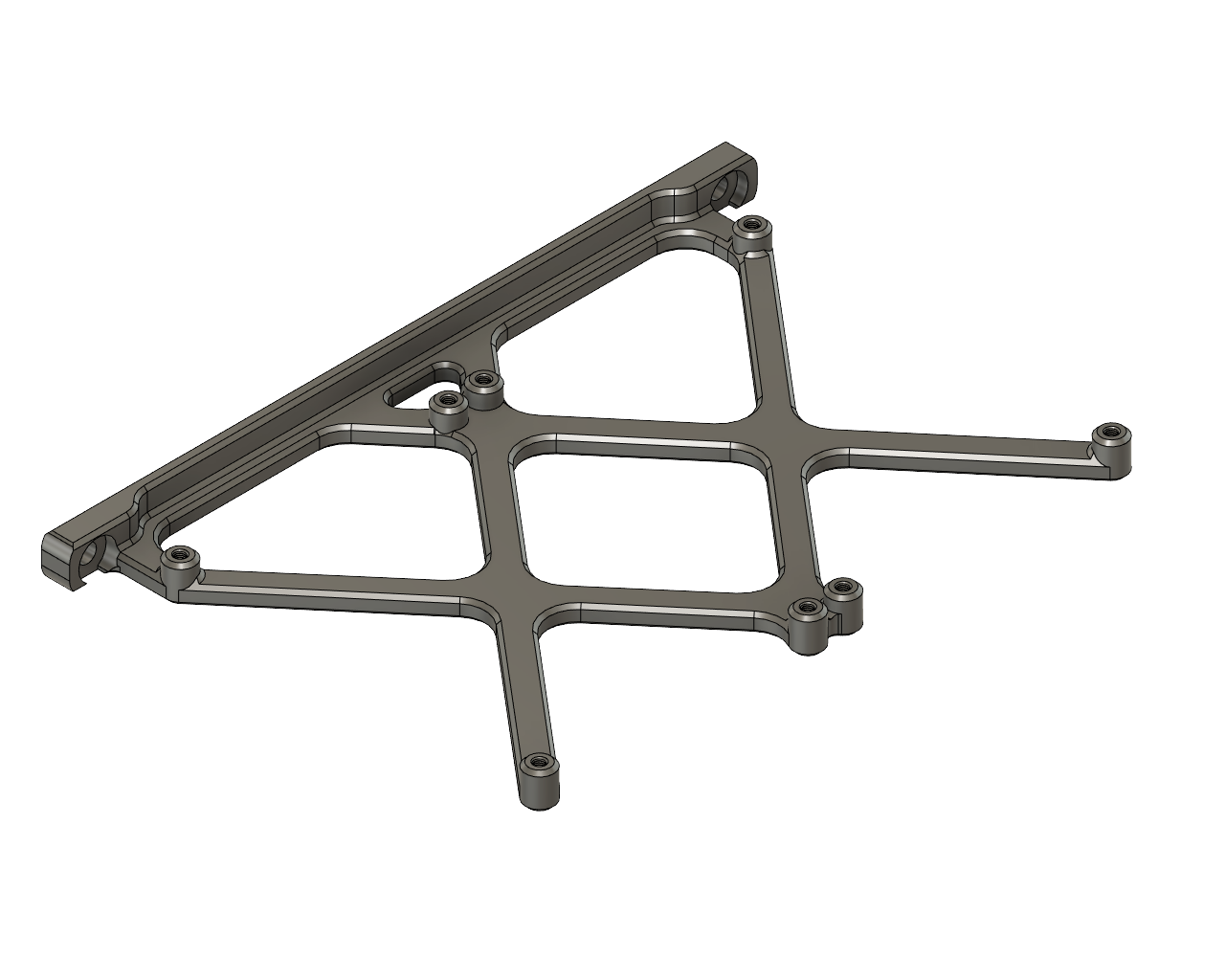

Fanless Mount:

Dual 40mm Fan Mount:

Dual 40mm Fan Mount (Topless):

Fanless Installed in a 300x300:

Dual 40mm on 200x200 bed:

Dual 40mm Installed in a 300x300:
