V0 Umbilical Collar

An adjustable collar for your Voron V0.

  • fills the gap between your chamber and electronics compartment to keep the warm air inside.
  • keeps your umbilical away from the belts.

Animation

Compatibility

This mod is not compatible with the Umbilical PCB from timmit99 or Picobilical PCB from LDO.
It's designed to work only with the stock motor-panel pictured below

motor_panel

BOM

  • 2x M3x6 or M3x8 BHCS
  • 2x M3 Heatset Insert

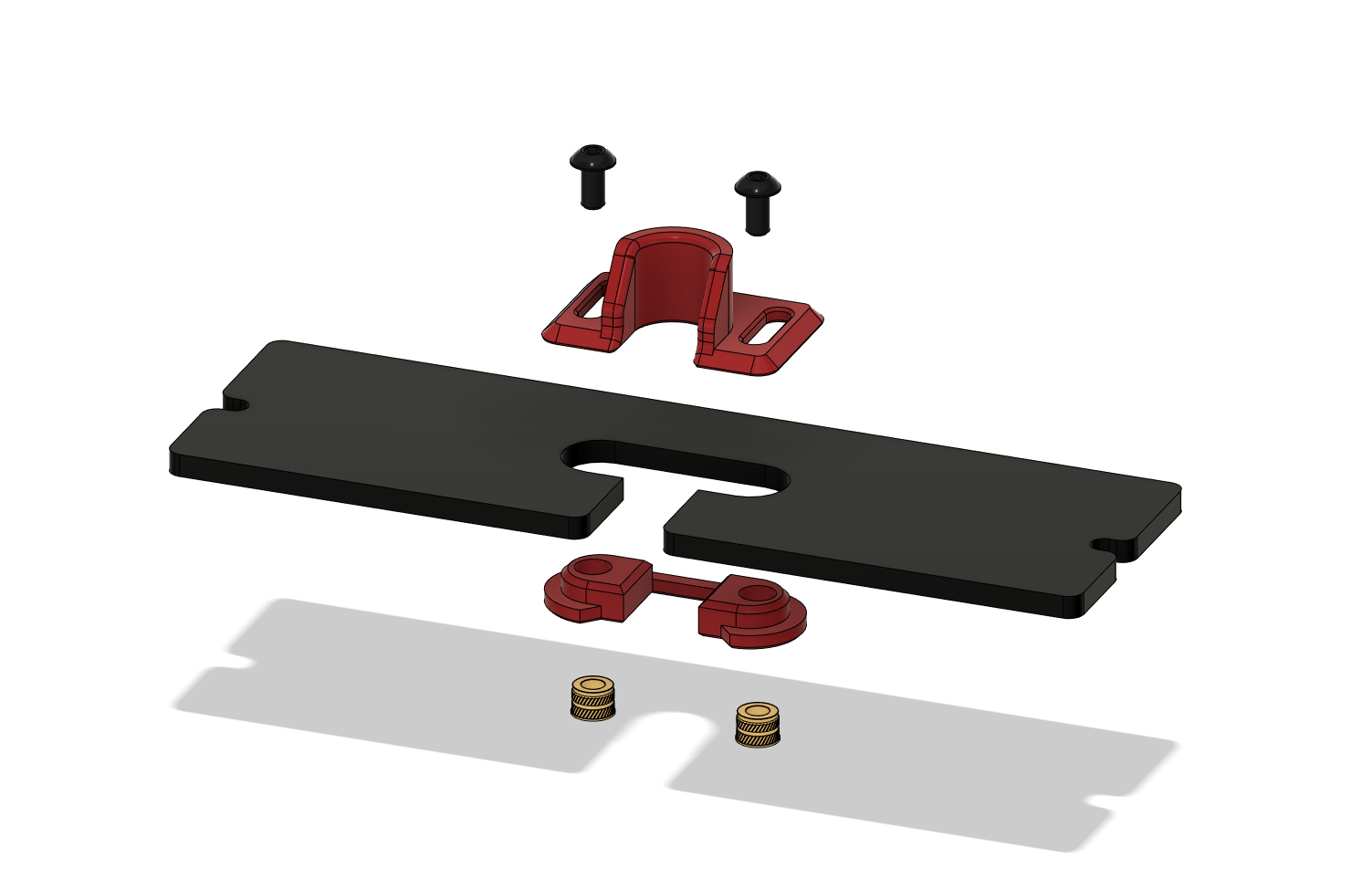

Assembly

Assembly
