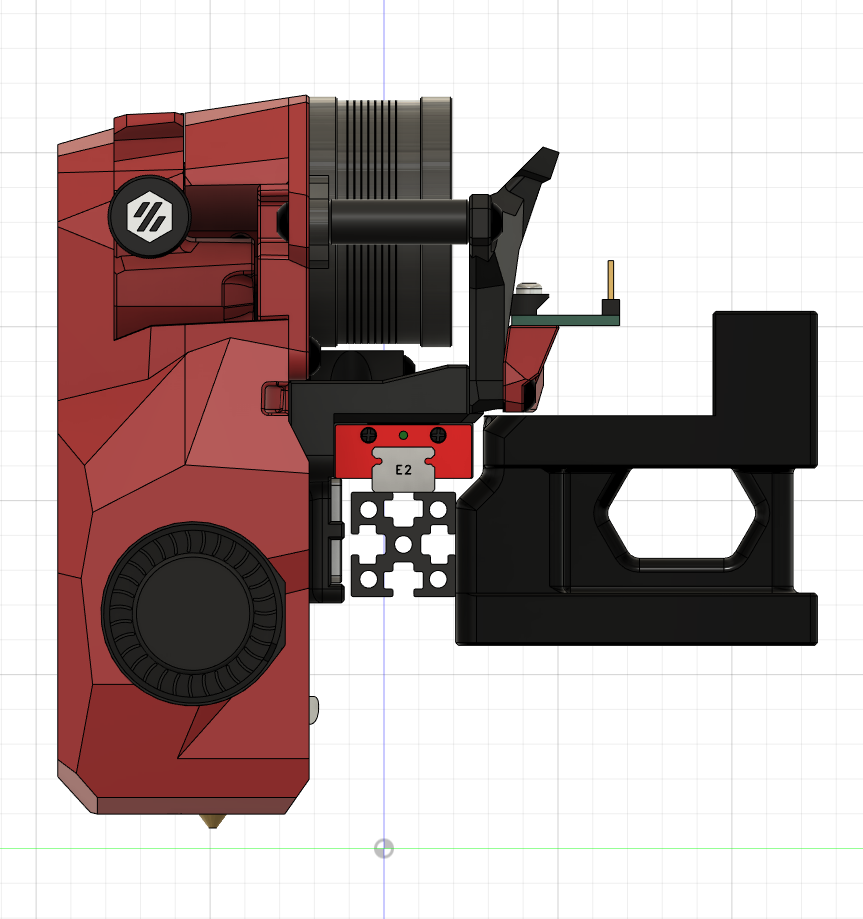

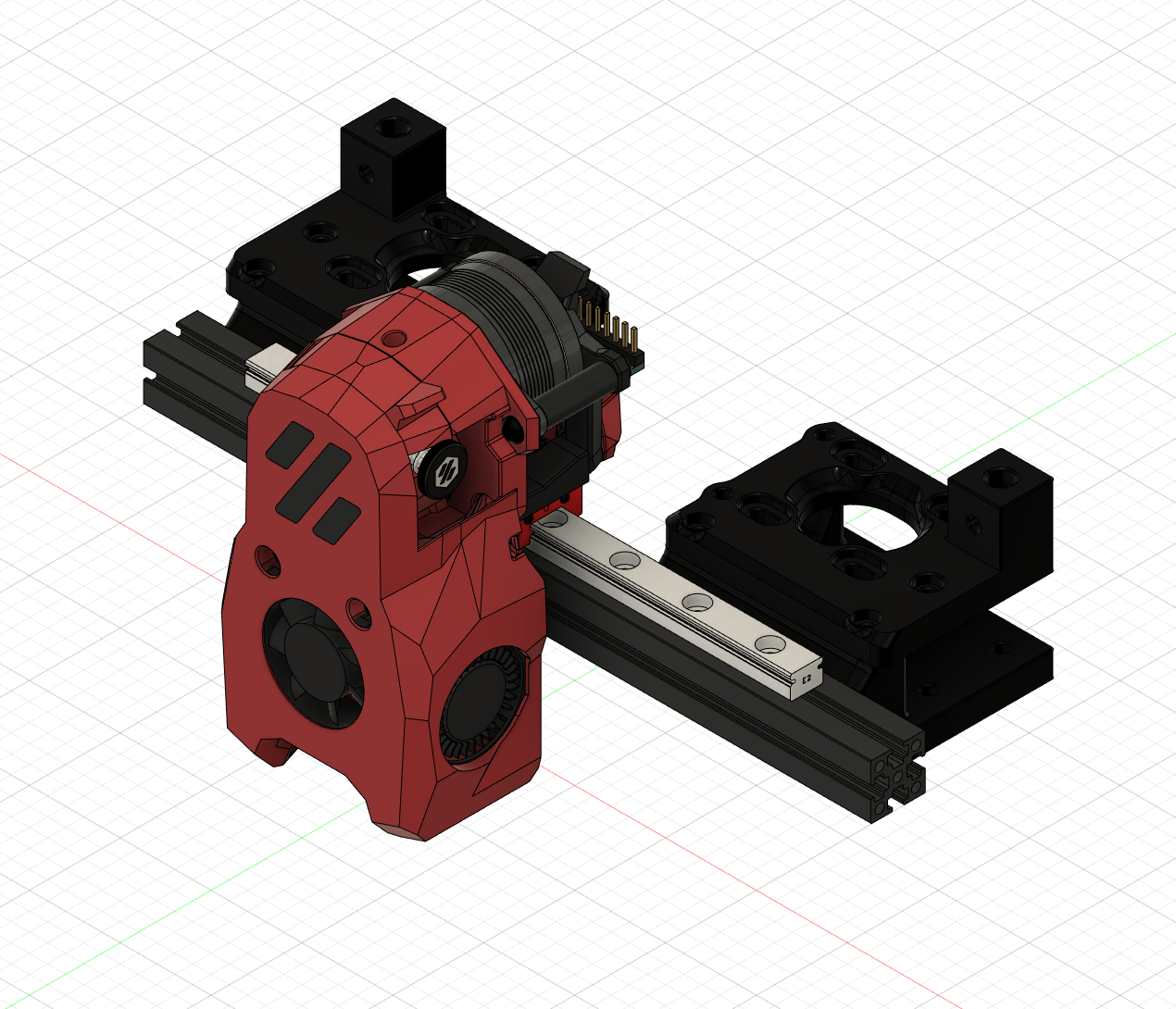

MGN9C X Axis for V0.2

This mod replaces:

The stock MGN7H rail on the V0.2 X axis with an MGN9C rail
The stock AB drive frames with modified ones that have additional clearance for the MGN9C carriage

Additional hardware

In addition to the hardware needed for the stock build:

1x MGN9C 150mm linear rail
10x M3x8 BHCS
6x M3 Nuts

Instructions

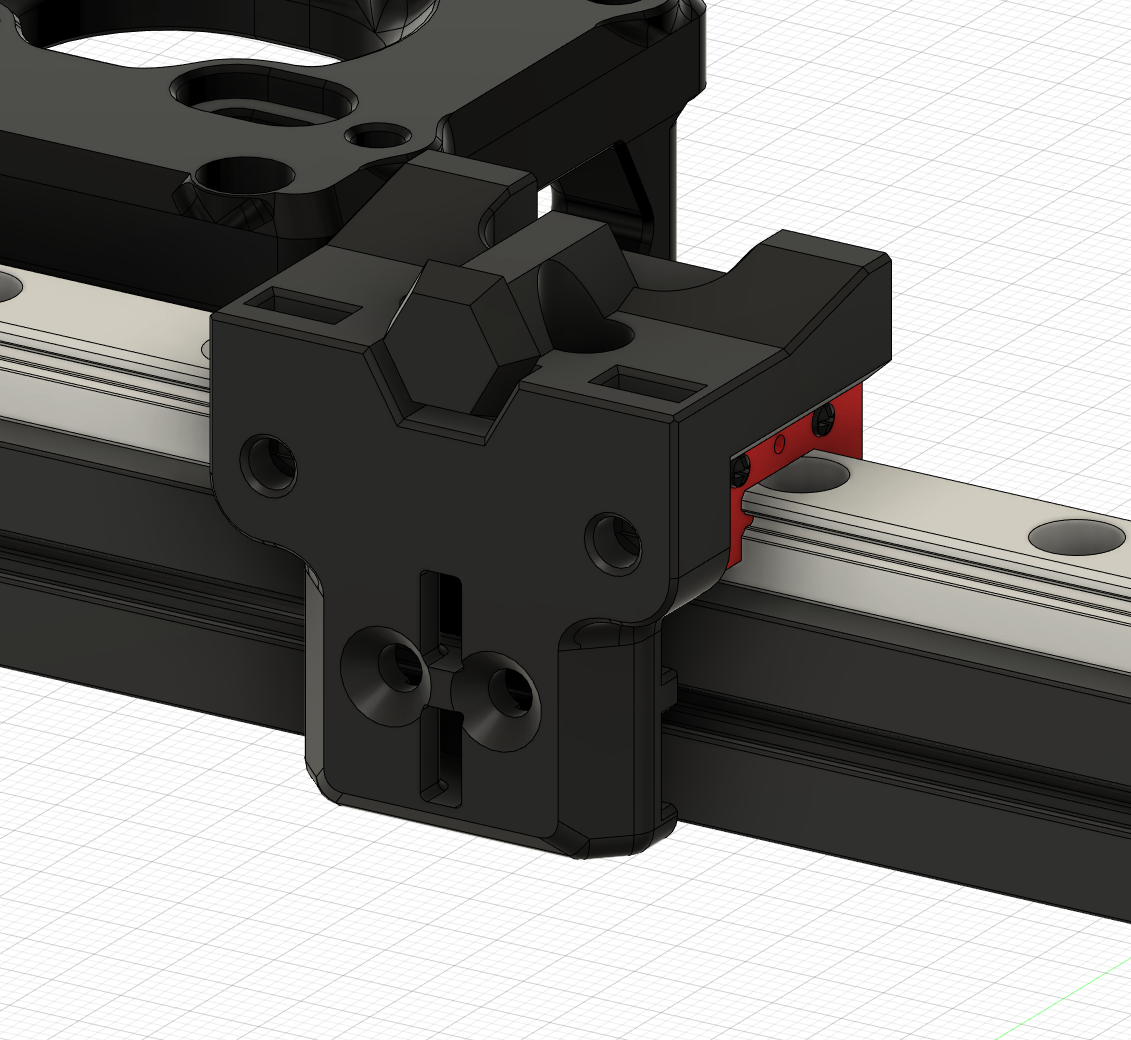

Assembly is the mostly the same as the stock V0.2 X axis and AB frames. The MGN9C rail mounts to the X axis extrusion with 6x M3x8 BHCS screws and nuts, and the X carriage mounts to the MGN9C carriage with 4x M3x8 BHCS screws.
