Readme.md

V0 | 0.96" OLED

V0 skirt

Use an 0.96" OLED for displaying:

hotend temperature
heater temperature
fan
flow
time (ellapsed|remaining)
coordinates x|y|z

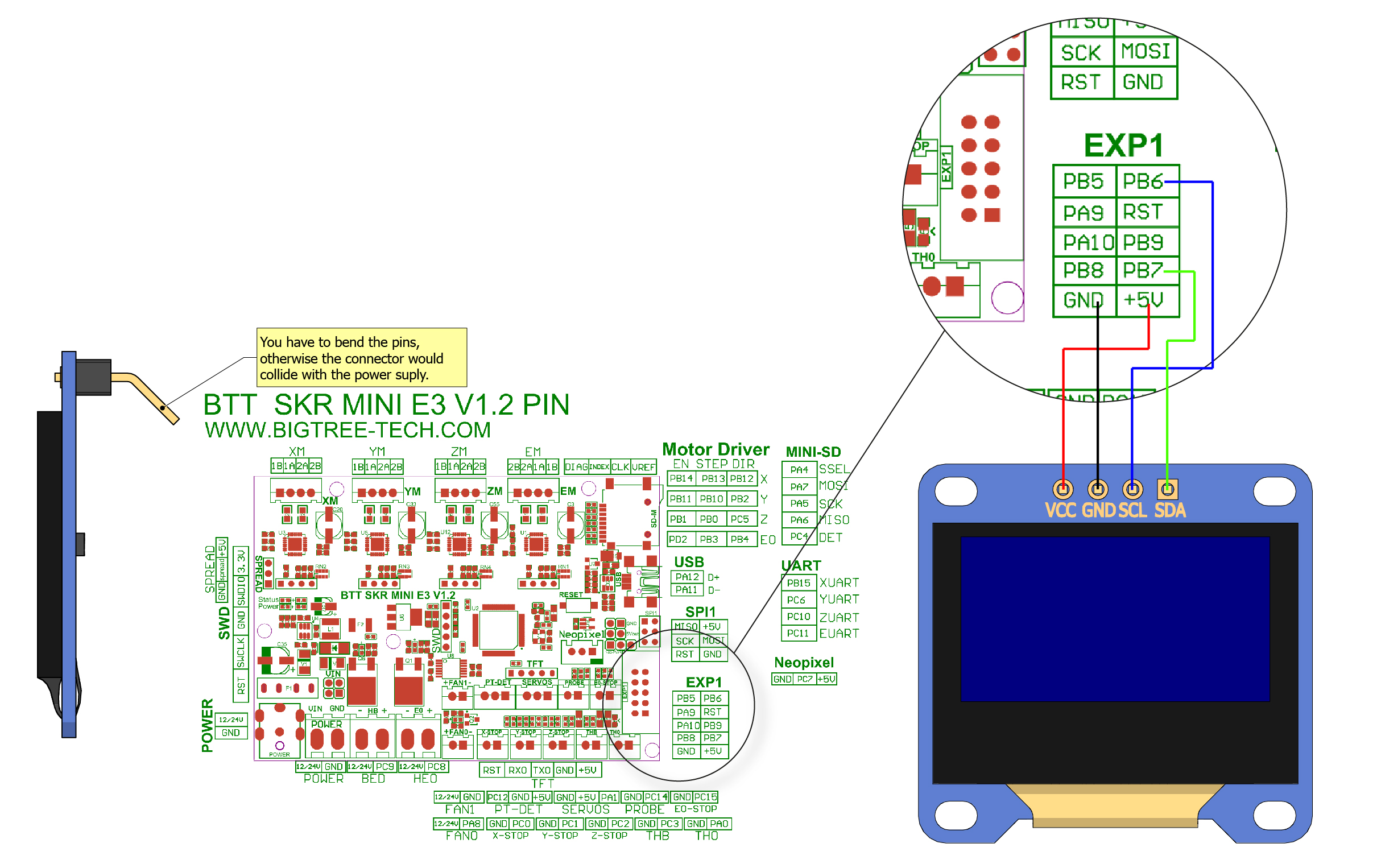

Wiring

used OLED-display: 0,96"OLED

The display has to be qualified for 5V

explode plan

Firmware

For SKR mini E3 v1.2 insert in your Klipper config:

[display]
lcd_type: ssd1306
#If your display is not working uncomment the line below, it will define the SKR as i2c controller of the screen
#i2c_mcu = mcu
