README.md

Modesty Mesh for Voron Zero

Customizable mesh inserts to hide your messy electronics compartment.

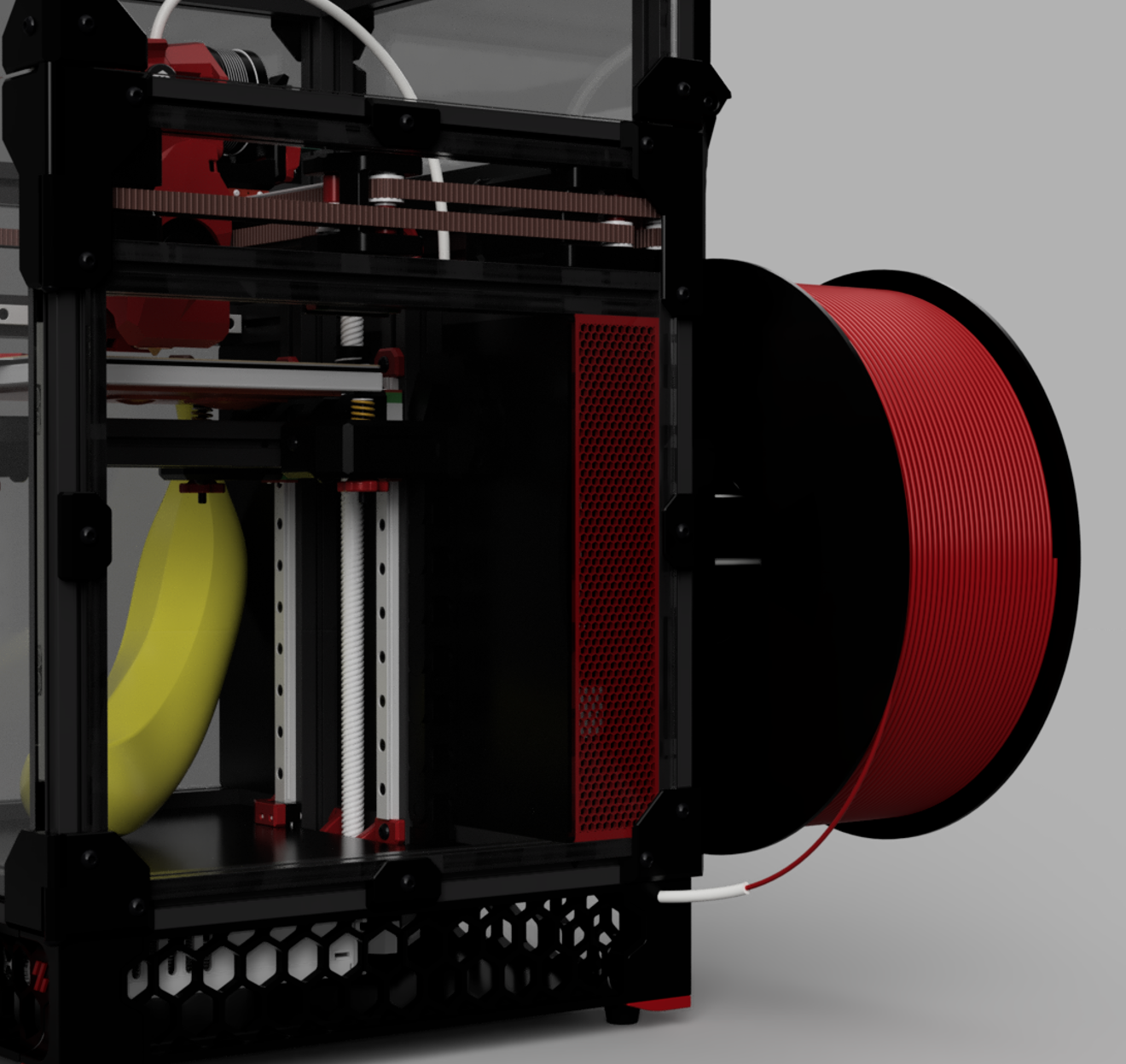

Render

Compatibility

Modesty mesh is compatible with any V0, but it cannot be printed on a V0. You will require a larger printer to print these in one piece.

Printing

The STL file includes 2 parts. Use split to parts to separate them in your slicer. On the inner part, set the top & bottom layers and perimeters to 0, then tweak the infill settings to create a mesh to your taste.

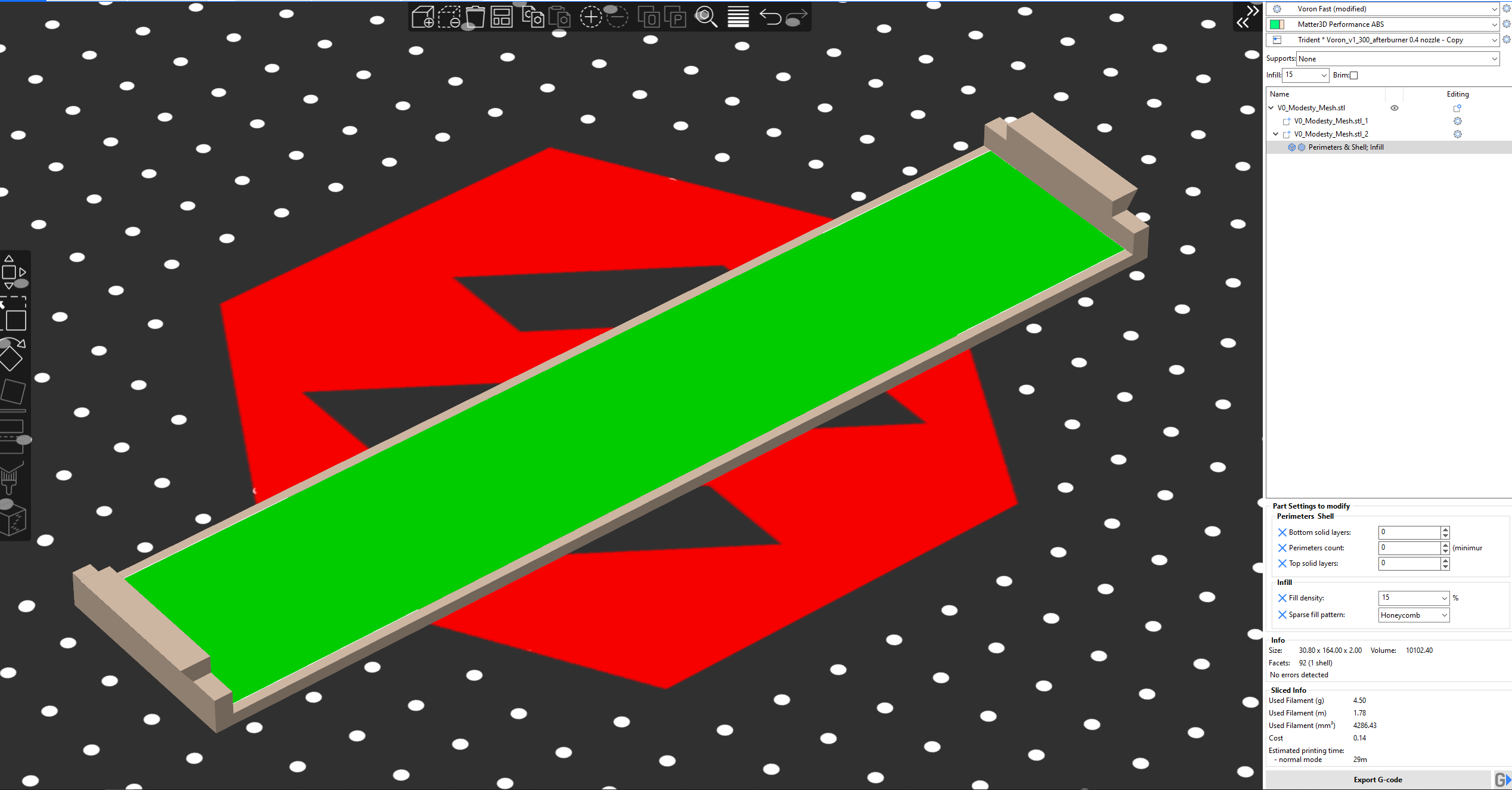

Parts

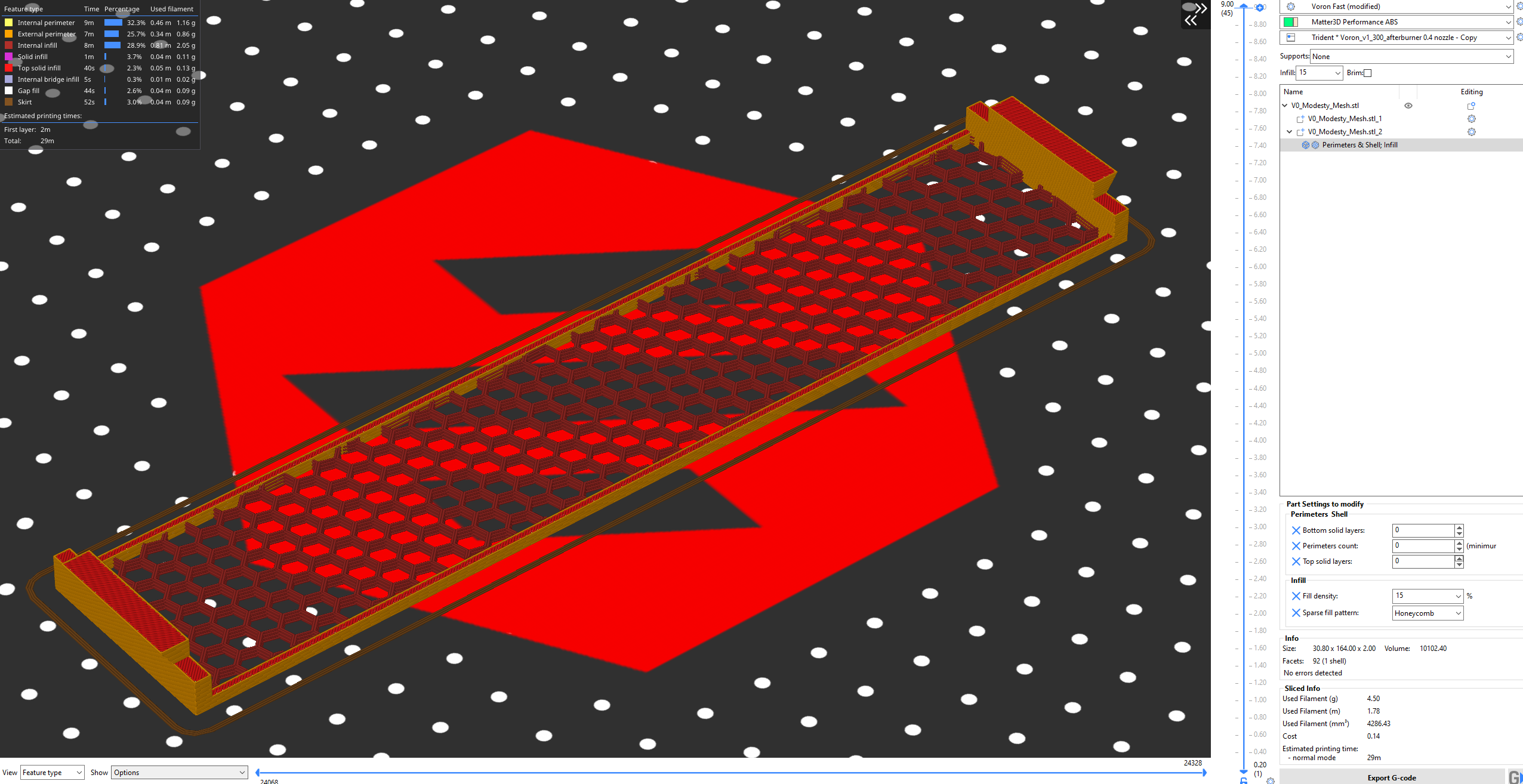

Sliced

Installation

Remove your side panel, and insert the modesty mesh into place in the slot of the upper and lower extrusions, just behind the midpanel, then replace the side panel.
