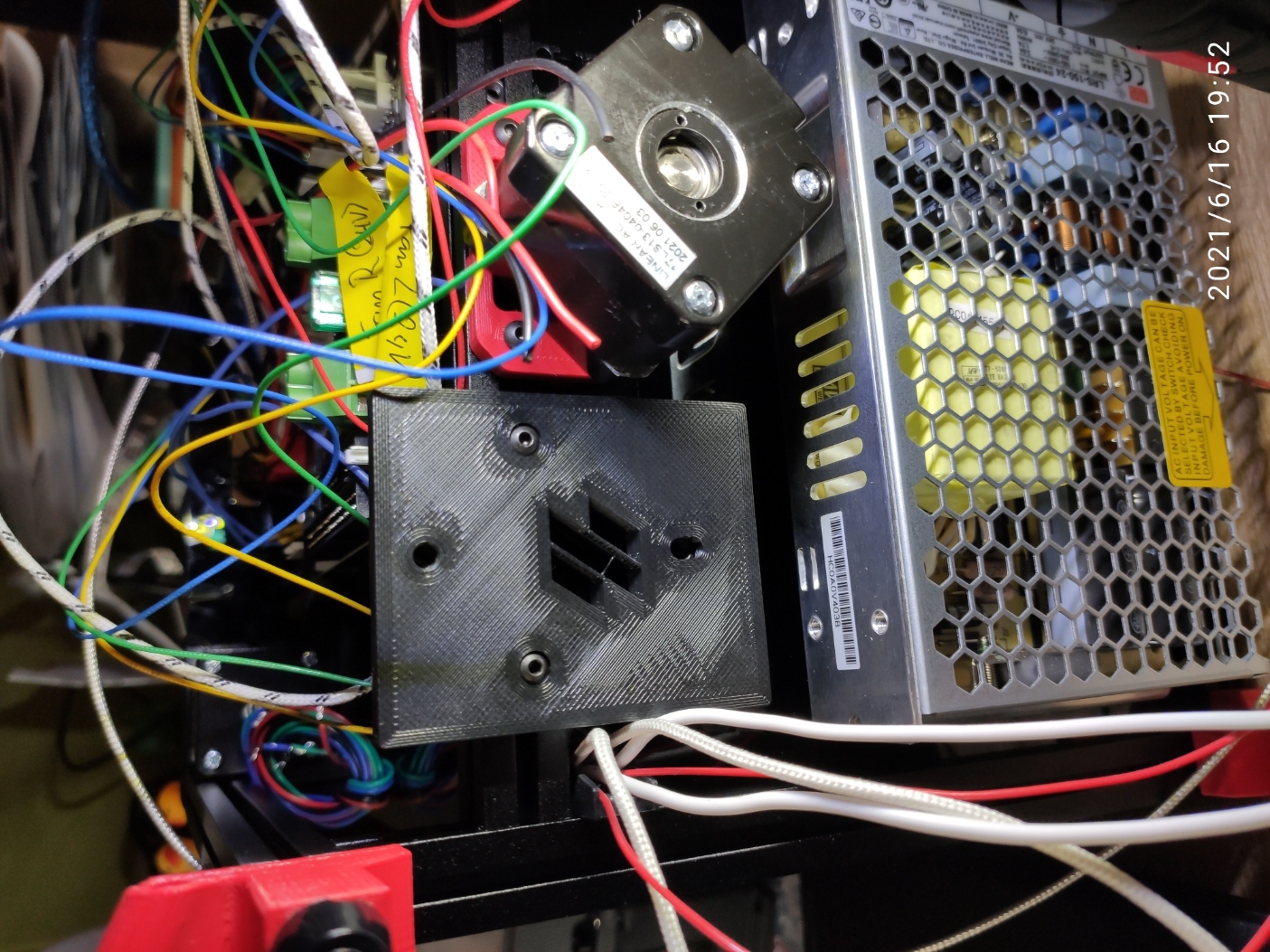

Voron_V0_SSR_Mount_Install_Step_2.jpg	Voron V0 Mean Well Power Supply Bracket & SSR Mount (#350 )	2021-06-20 08:45:43 -04:00

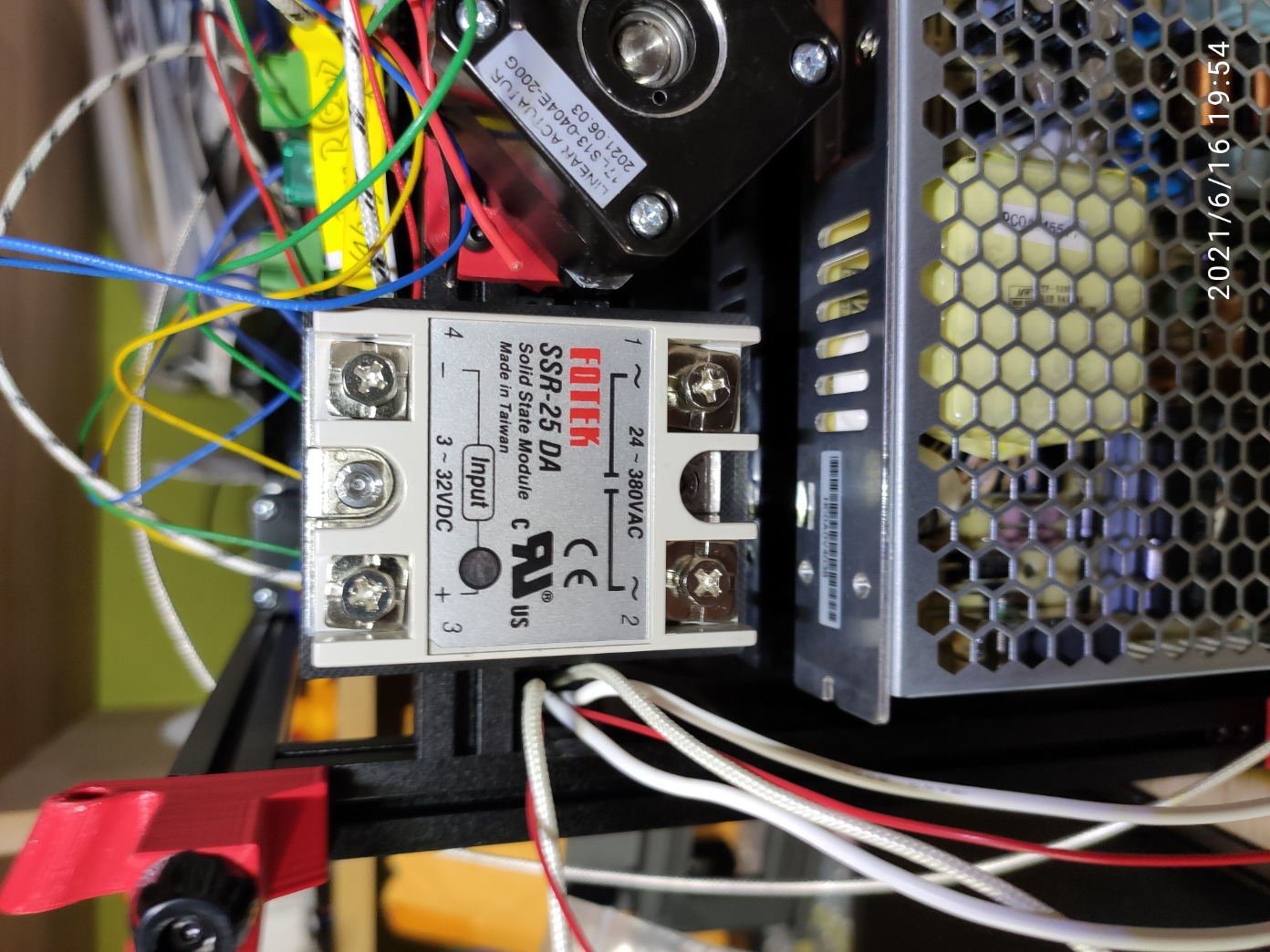

Voron_V0_SSR_Mount_Install_Step_3.jpg	Voron V0 Mean Well Power Supply Bracket & SSR Mount (#350 )	2021-06-20 08:45:43 -04:00

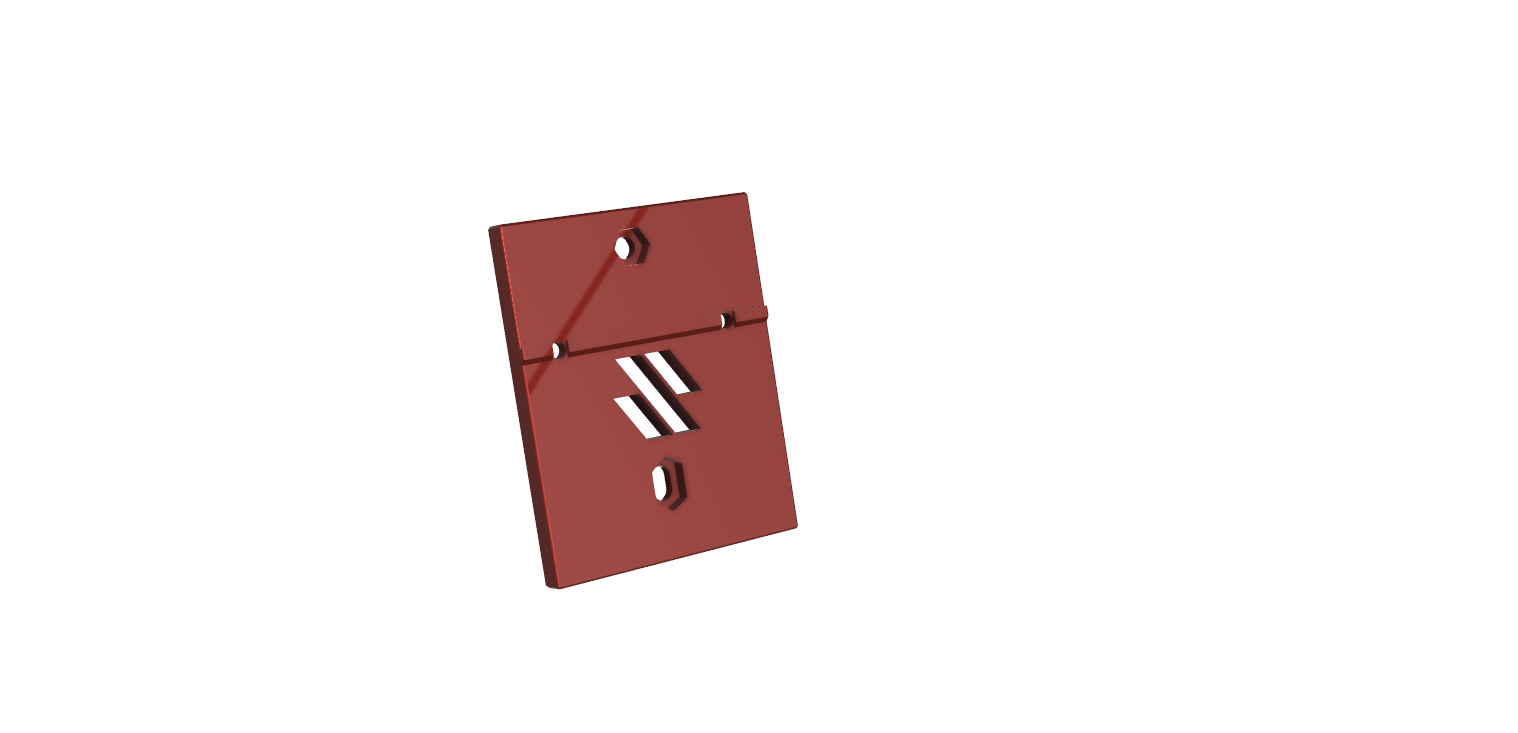

Voron_V0_SSR_Mount_v5_Back.png	Voron V0 Mean Well Power Supply Bracket & SSR Mount (#350 )	2021-06-20 08:45:43 -04:00

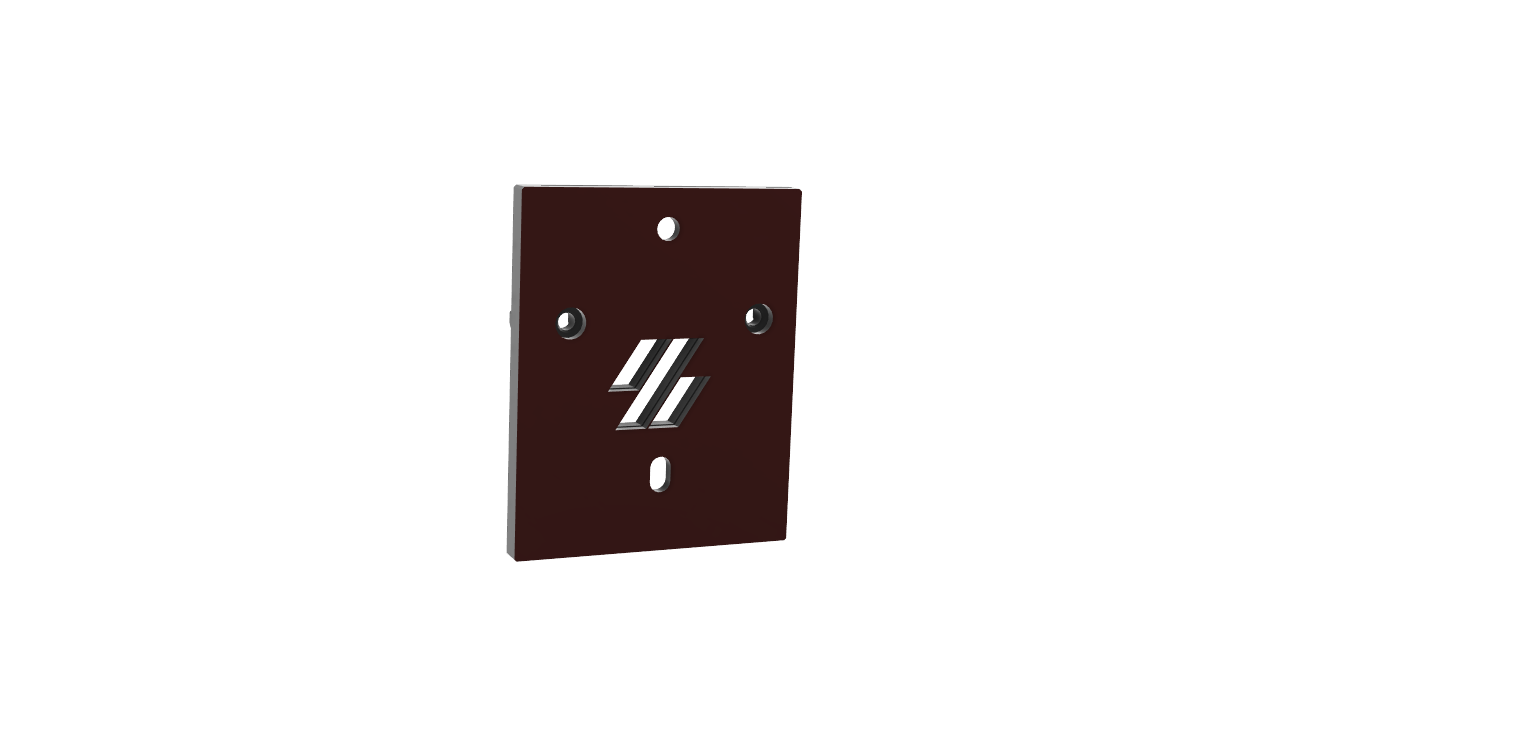

Voron_V0_SSR_Mount_v5_Front.png	Voron V0 Mean Well Power Supply Bracket & SSR Mount (#350 )	2021-06-20 08:45:43 -04:00

Voron V0 SSR Mount

BOM:

2 x M3x8 (to fix to the 1515 extrusion, the nuts are from the assembly instruction already available, instead of the 5V power supply)
2 x M4x12 (for the SSR to the bracket)
2 x M4 nuts
