README.md

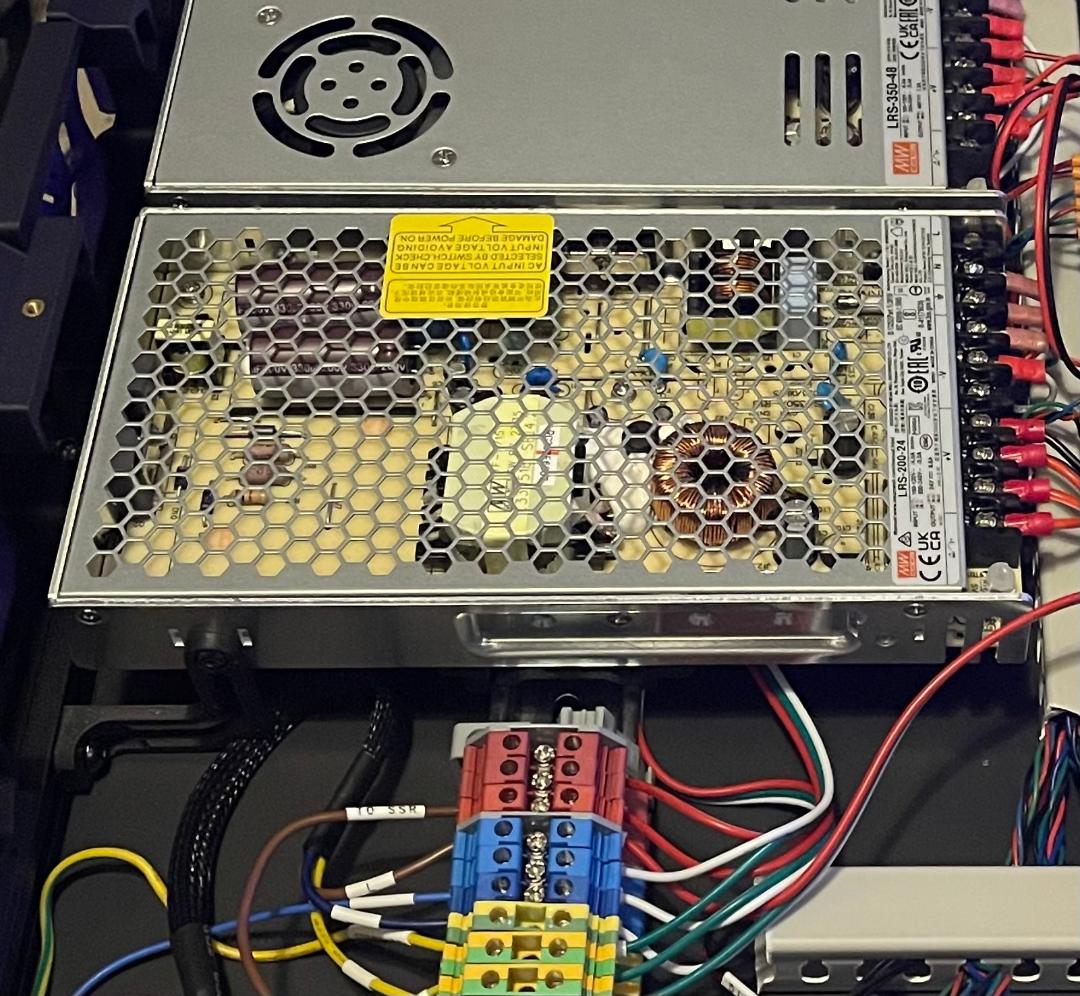

LRS Offset Mount and Stabilizer
This allows you to offset the LRS PSU to add an additional LRS PSU to the same DIN.
Printing
- Print 1 set of offset mounts per LRS PSU
- Print 2 Voron PCB DIN Clip per PSU
- Print 1 PSU stabilizer per PSU
- Default Voron settings
- No supports needed
Note:
- VT - use any length range
- V2.4
- 250mm - suggest use 35mm to 55mm or 35mm to 95mm
- 300mm - suggesr use 50mm to 70mm or 35mm to 95mm
- 350mm - suggest use 75mm to 95mm or 35mm to 95mm
BOM
per LRS Offset and Stabilizer
| Item | Size | Qty | Comment |
|---|---|---|---|
| Self Tapping Screw | M2x10 | 4 | DIN Mount with LRS Offset |
| BHCS | M5x10 | 1 | PSU Stabilizer |
| BHCS | M4x6 | 5 | 4x-LRS Offset and 1x-PSU Stabilizer |
| T-Nut | M5-2020 | 1 | PSU Stabilizer |
