VoronUsers/printer_mods/Andre/Mini_Afterburner_Strain_Relief

Mini Afterburner Strain Relief

Replaces the stock strain relief on the V0 Mini Afterburner toolhead.

BOM

• 1x M3x6 BHCS
• 2x M3x30 BHCS
• 2x M3 Nuts
• 1x M3 heat-set insert. (3x5x4)

Instructions

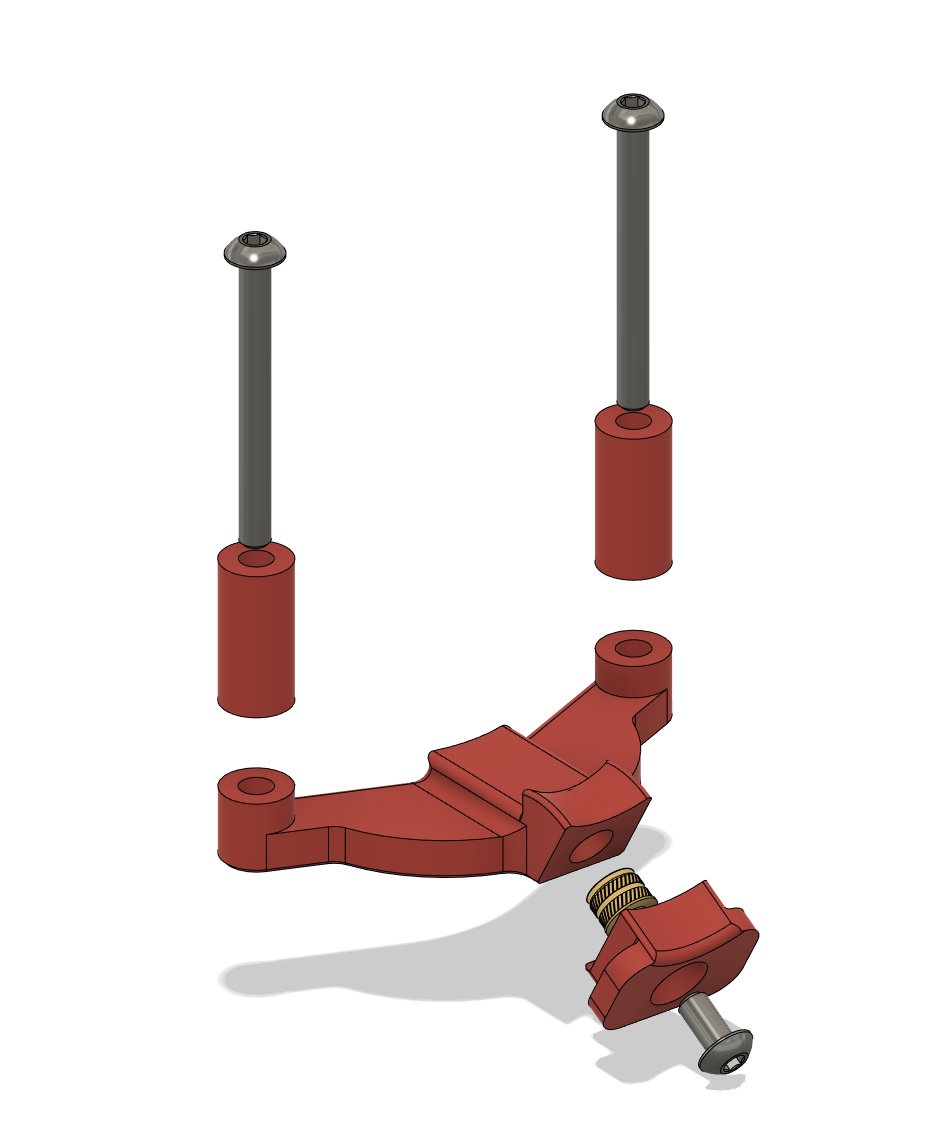

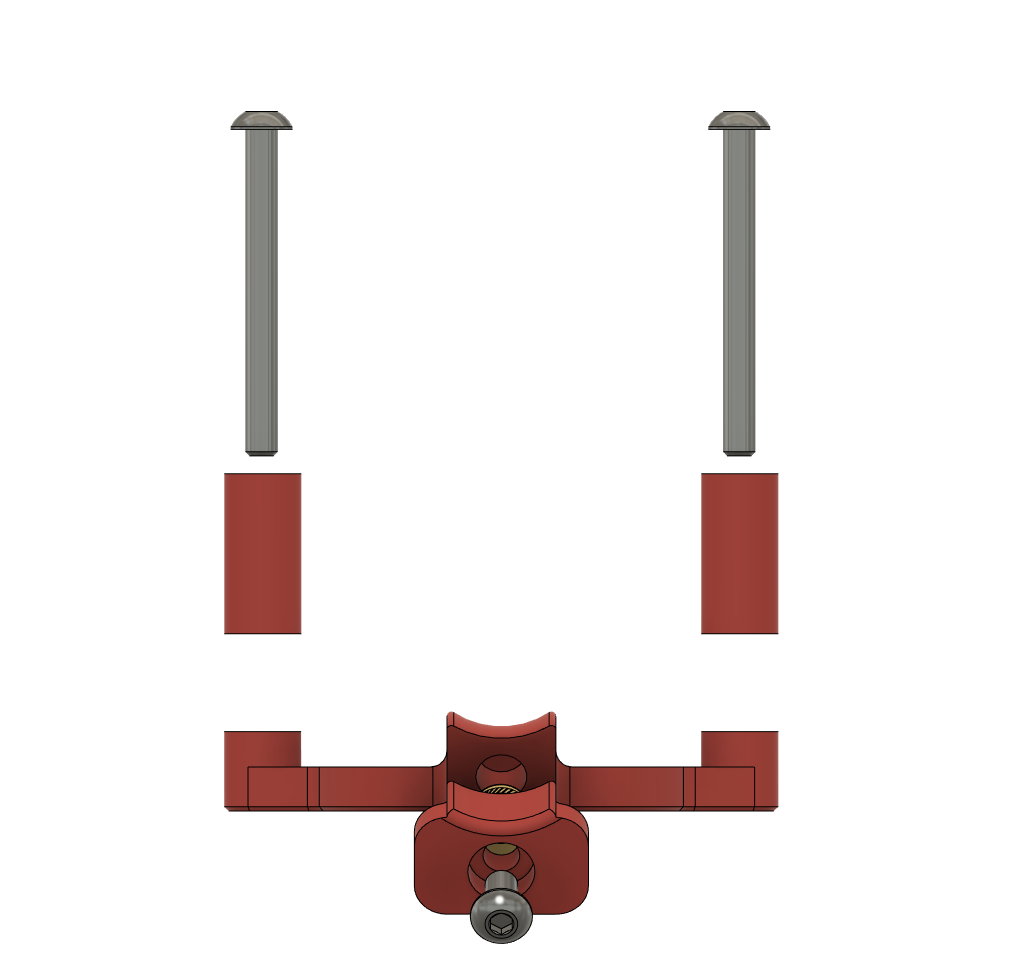

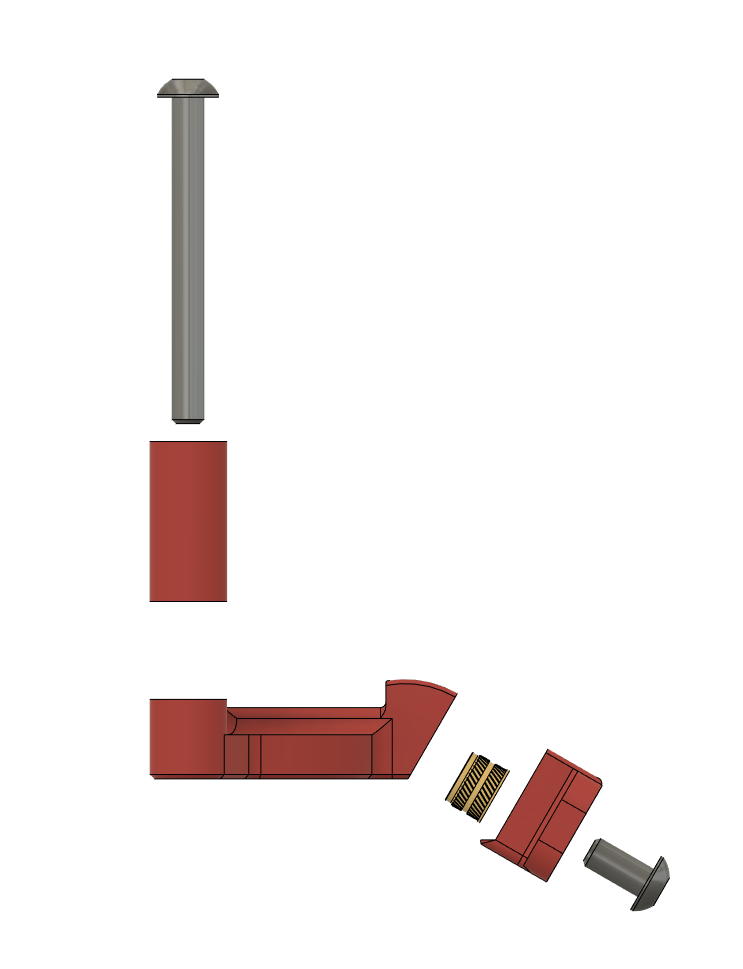

• Install the M3 heat-set insert into the top of Strain_Relief_Body_x1.
• Use the M3x6 BHCS to attach the Strain_Relief_Body_Top_x1 to the Strain_Relief_Body_x1
• Insert the 2 M3x30 screws from the front of the toolhead, through the motor, Strain_Relief_Spacer_x2 and Strain_Relief_Body_x1 finally securing them with M3 nuts on the back of the strain relief.
• wires can be routed between the motor and the strain relief, through the recessed area.
