README.md

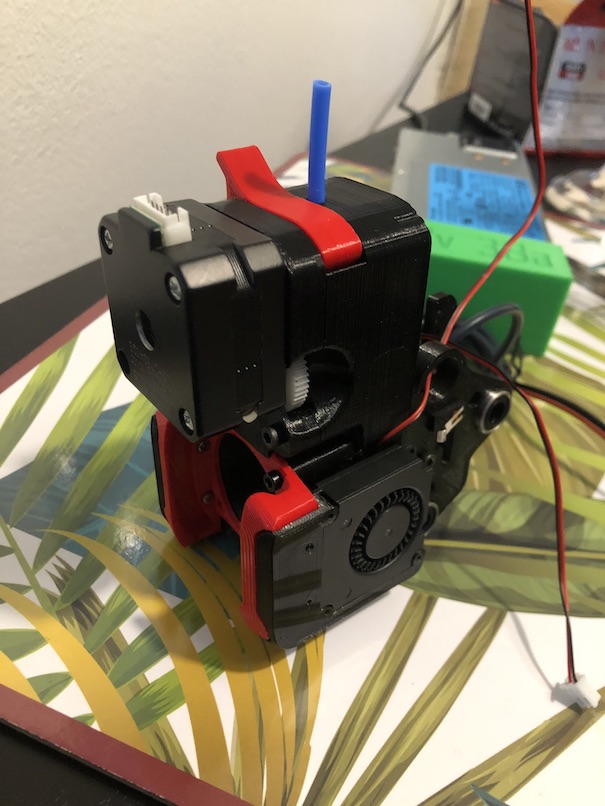

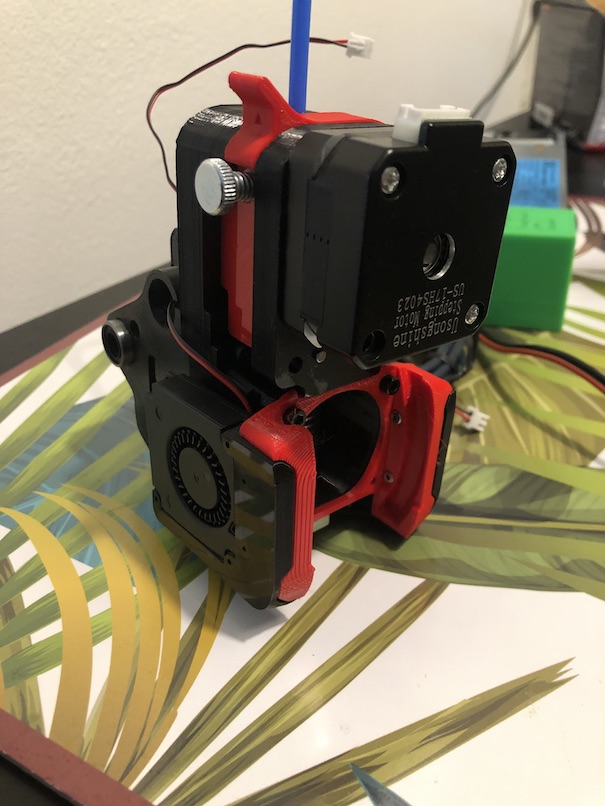

Parts details
- extruder_body_V6_: To mount E3D V6.
- extruder_body_mosquito: To mount Mosquito
- extruder_motor_plate: height changed from original Afterburner extruder_motor_plate to avoid the crankshaft of the motor touch the filament
- [a]_toolhead_front_plate: remix of original v1.6 front plate to fit new extruder body and motor plate
Complete with following original parts:
From Voron 1.6.2 STL:
- v6_+_mosquito_cooling_fan_duct_left
- v6_+_mosquito_cooling_fan_duct_right
- v6_toolhead_housing_front (for V6)
- mosquito_toolhead_housing_front (for Mosquito)
From Afterburner STL:
- _guidler
- _latch
- latch_shuttle
Print parameters
as per Voron specifications:
- Layer height: 0.2
- Infill: 50% or more
- Infill type: Grid
- Perimeters: 4 or more
- Top/Bottom solid layers: 5 or more
- Filament: ABS/ABS+
Naming convention
as per Voron specifications files beginning by _ is alternate color, other files are main color.
Assembly guide
Follow v1.6 and Afterburner manuals for more specification. Attached you find a PDF with what I did.
