Alternative mounting for Z-Axis zipchain

Overview

Image Image

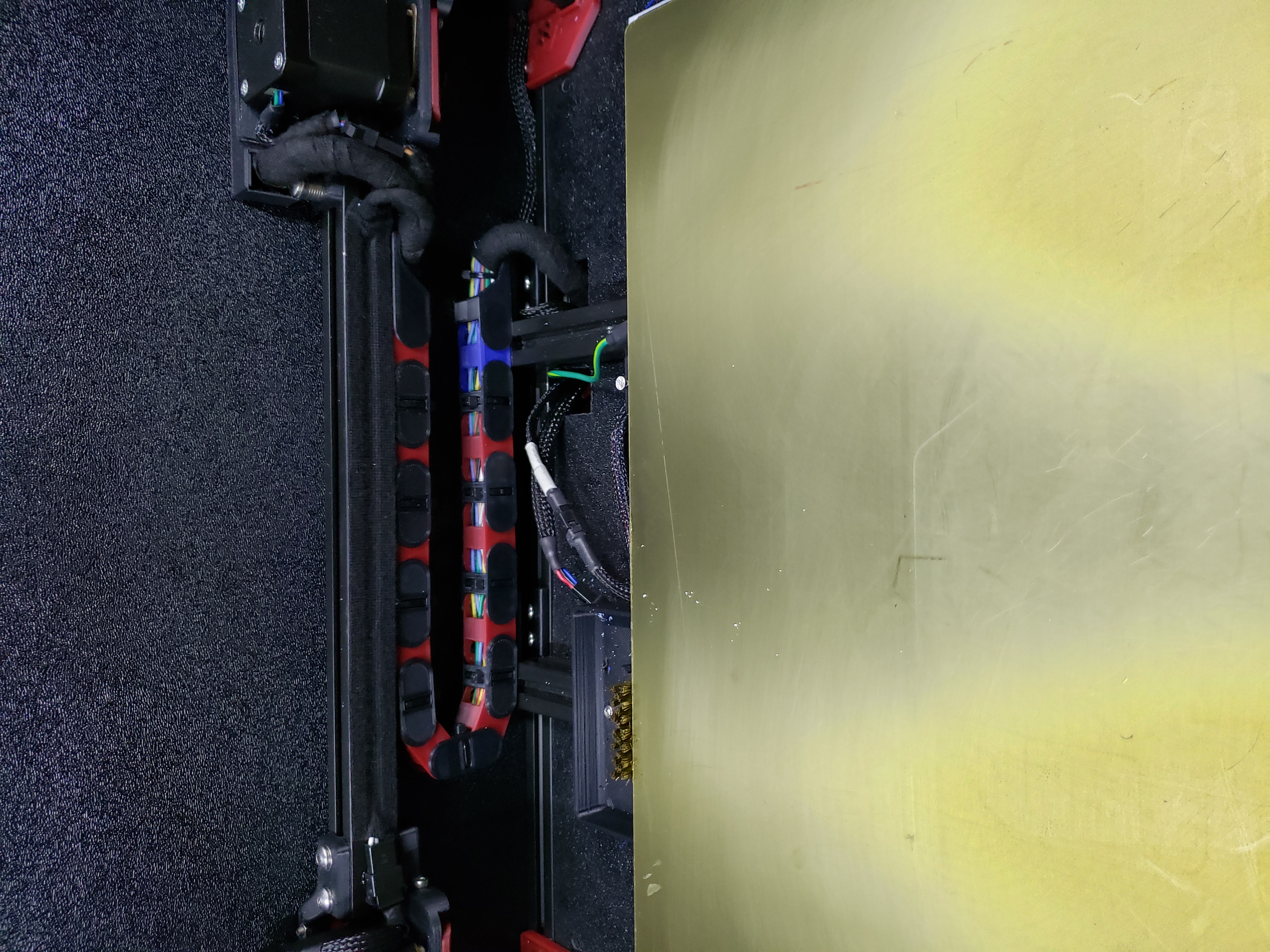

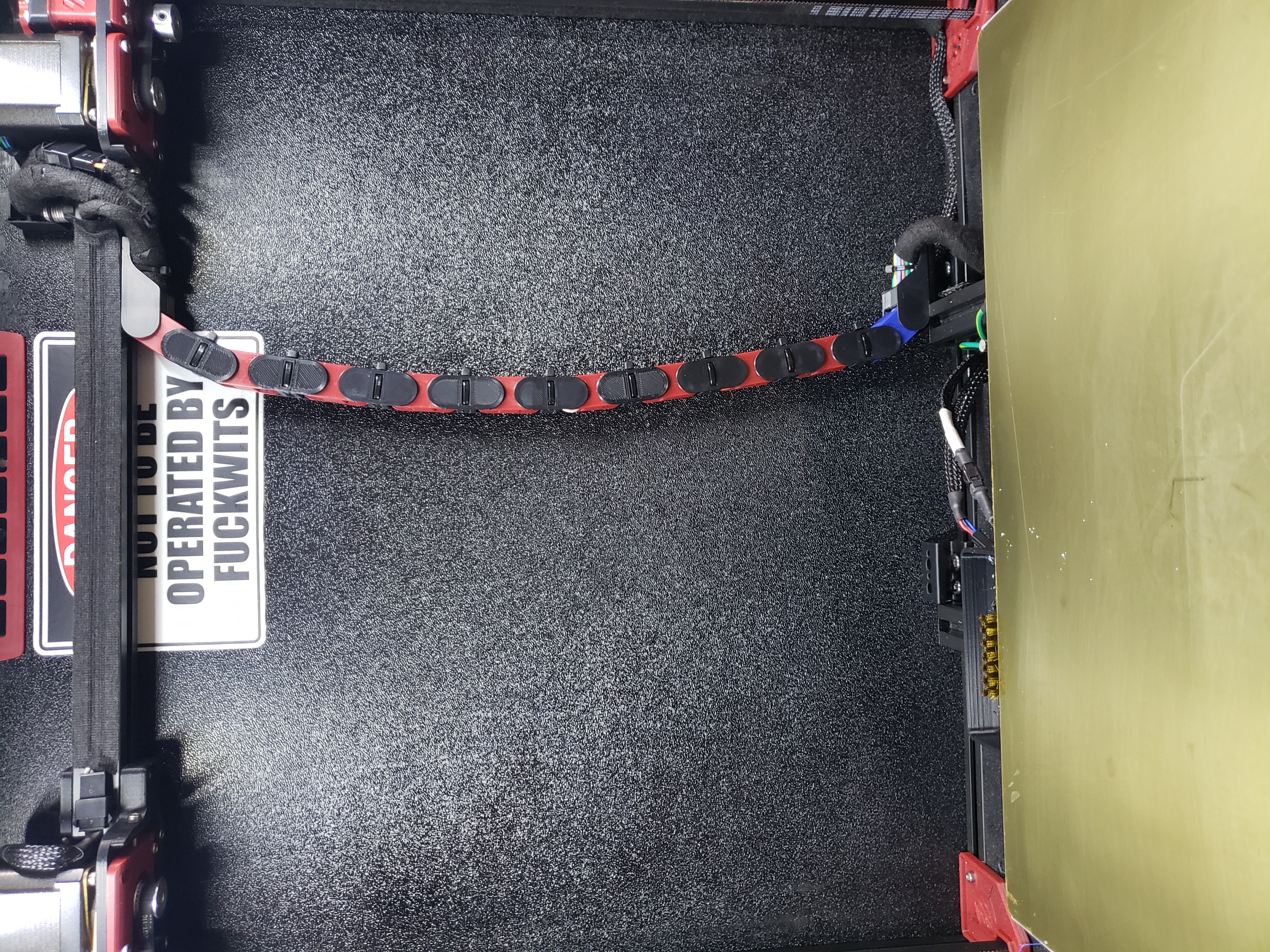

Mount Z-Axis zipchain under the rear gantry crossbar, instead of in front of it. Cleaner look, and frees up some room back there. Print 2 of each STL. One anchor attaches to a standoff for the bottom. The second standoff is use as a spacer to support the chain when gantry is in lower positions. Additional zipchain links will also be needed.
