Waveshare 5.5inch HDMI AMOLED Mount

This replaces the default Klipper display with a Waveshare 5.5inch HDMI AMOLED display as a skirt to the Voron 2.4.

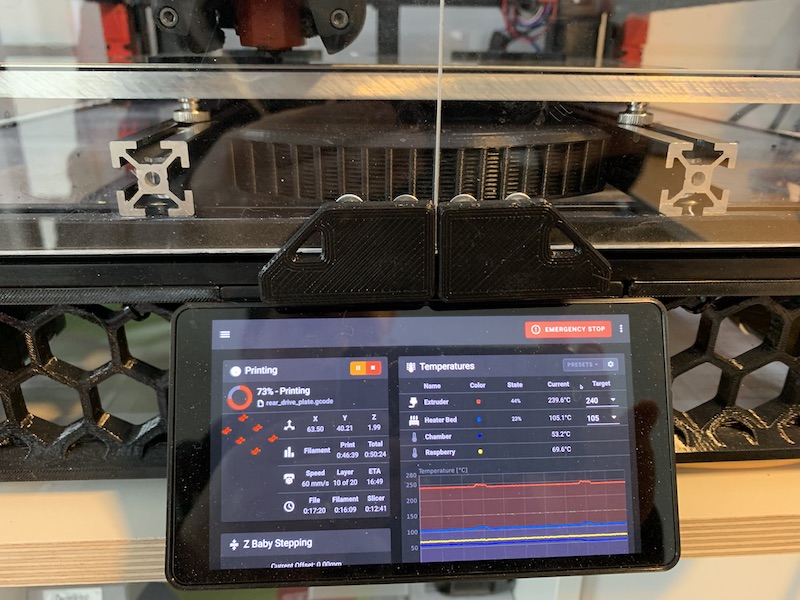

Attached to Voron 2.4

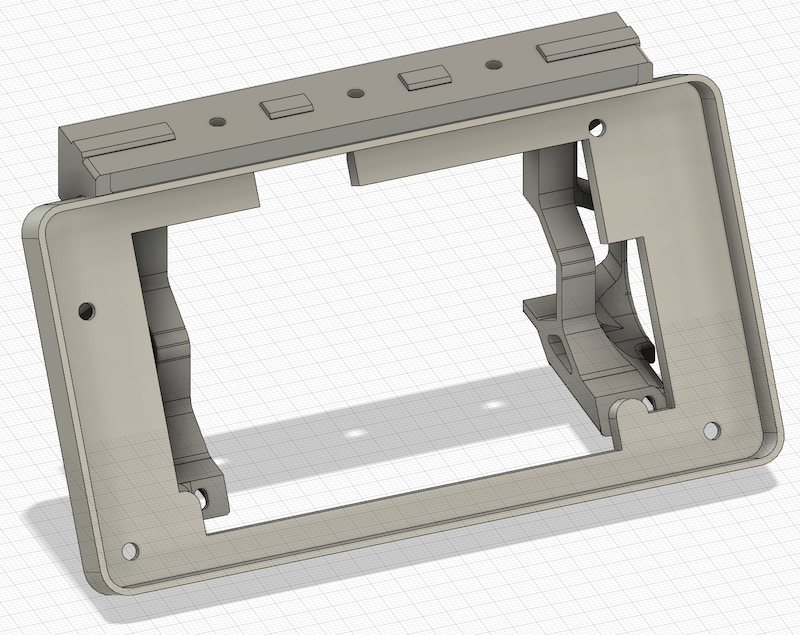

Fusion rendering front Fusion rendering back

Required hardware

In addition to things you can reuse from the stock build and to the screw included in the display, these items are required:

  • 4x thread inserts M3x5x4 (same as in the Voron 2.4)
  • 8x M3x8 SHCS
