README.md

Picam corner mount

About the only place I found to mount the picam with a view low down of the bed. This was inspired by the v0 design by xbst

Hardware

  • A single m3x8 bolt and t-nut
  • A suitable length of picam ribbon cable

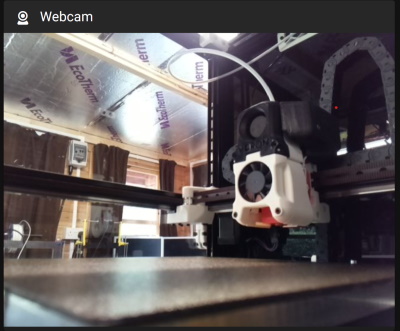

The view

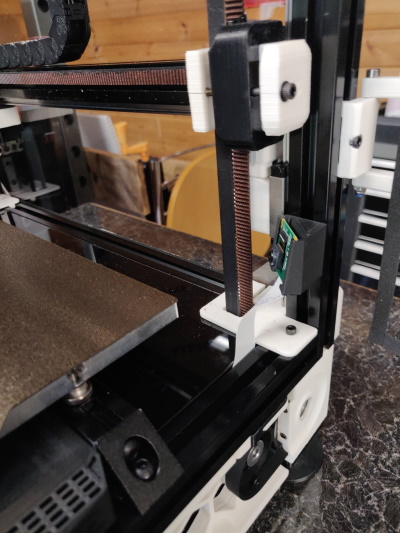

The mounting point
