BTT PITFT50 v2 Mount

This work is based on sttts's Waveshare 5.5inch mount. BTT PITFT50 v2 has a different layout than v1, featuing a brightless thumbwheel, an orientation switch and a JST XH port for unknown function. This design provide accessibility to the thumbwheel and switch.

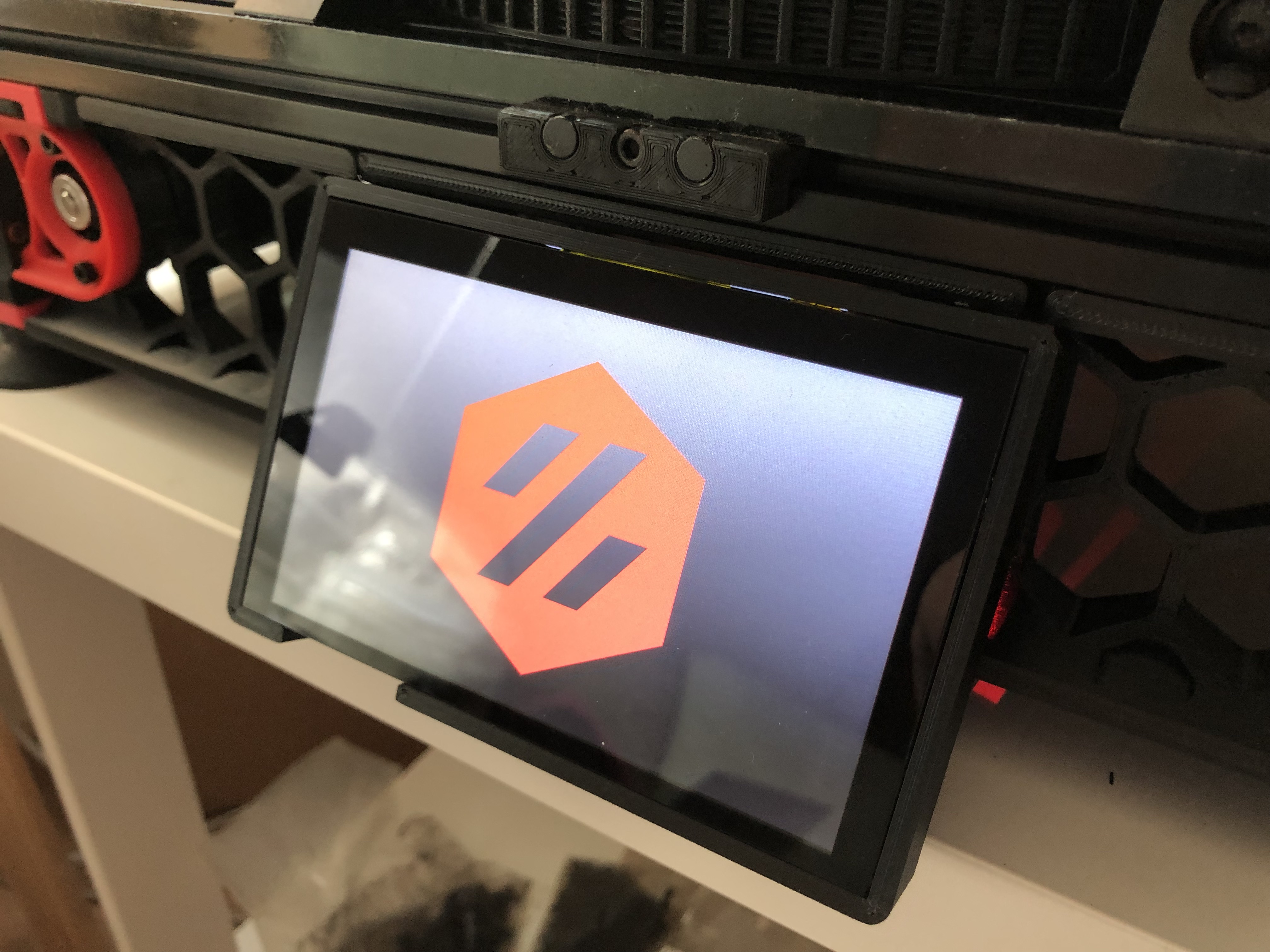

Test Test Test

BOM

  • 4x M3 Heatset Inserts
  • 4x M3x6mm to attach to the mount
  • 3x M3x10-12mm to attach the mount to the frame
  • 4x M2.5x4mm (included in the BTT PITFT50 v2)
  • 500mm ~ 600mm Ribbon Flat Cable for Raspberry Pi Camera (depends on the position of the Raspberry Pi. The included one is too short)

Instructions

Please use the mount in sttts's mods to amount this to the frame. No re-print of skirts is required!

Print Settings

Standard Voron recommended print settings
