README.md

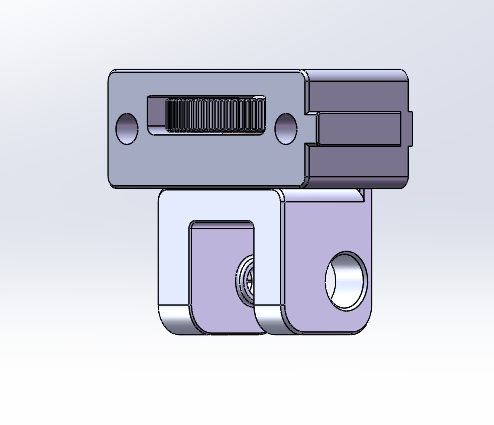

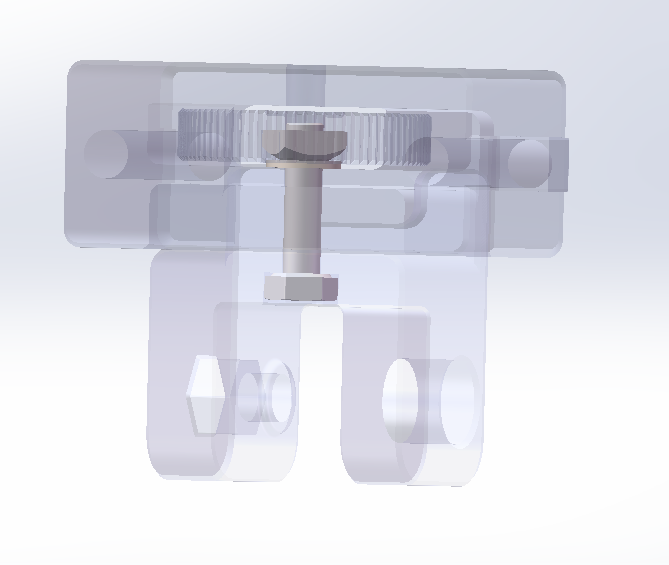

Tool free tensioner
| Name and specification | Quantity |
|---|---|
| SHCS M5x20 | 4 |
| M4*0.7 Square nut | 4 |
| HHCS M4x16 | 4 |
| D4x7x1(4x8x1)Flat washer | 4 |
| M5 Hex Nuts with Lock | 4 |
| bracket | 2 |
| tensioner | 2 |
| bracket image | 2 |
| tensioner image | 2 |
| wheel | 4 |
PART PRINTING GUIDELINES
MATERIAL
- ABS
LAYER HEIGHT
- Recommended: 0.2mm
EXTRUSION WIDTH
- Recommended: Forced 0.4mm
INFILL TYPE
- Grid
- Gyroid
- Honeycomb
- Triangle
- Cubic
SOLID TOP/BOTTOM LAYERS
- Recommended: 5
WALL COUNT
- Recommended: 4
INFILL PERCENTAGE
- Recommended: ≥60%
