A DIN Rail bracket for BTT Octopus board - Voron 2.4

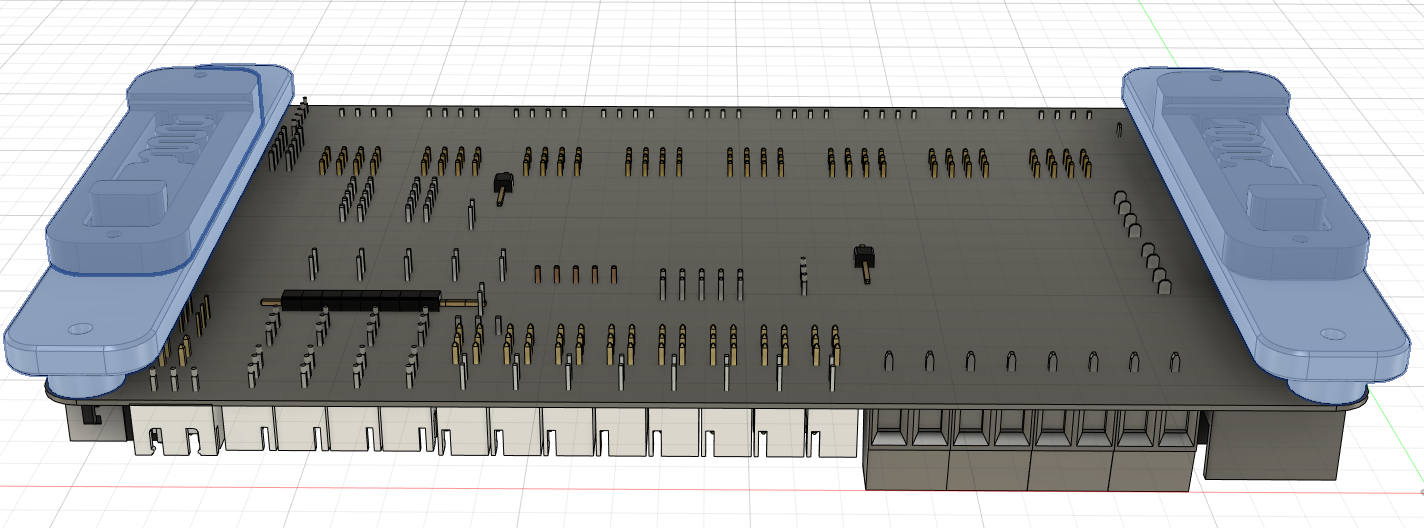

This is a DIN Rail bracket for Bigtreetech Octopus board.

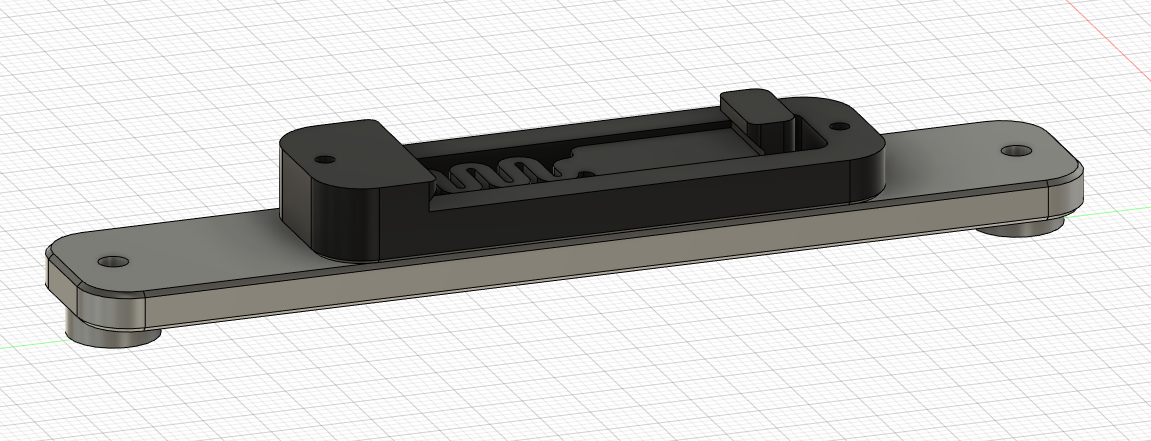

Use default pcb_din_clip.stl x2, and print two parts and secure with m2 self-tapping screw.

Octopus board can be secured to this bracket with M3 screw, without nuts.
