README.md

Plug Panel Mod for Schurter CD44.1101.151

Connection panel for Voron 2.4r1 with Schurter CD44.1101.151 power entry module. The panel has a LAN socket as well.

Compatibility with 2.4r2 not tested

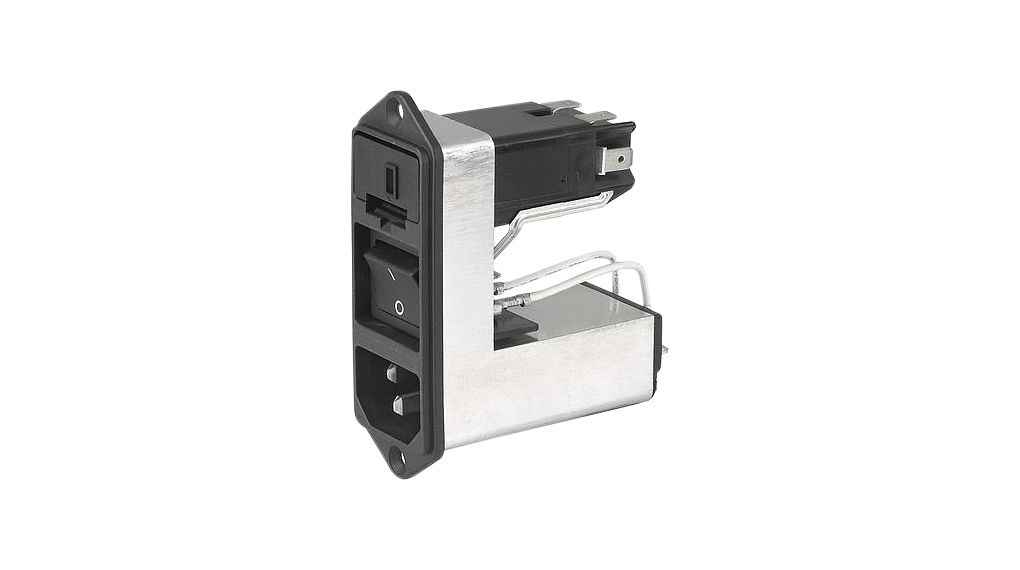

The plug panel:

pic1

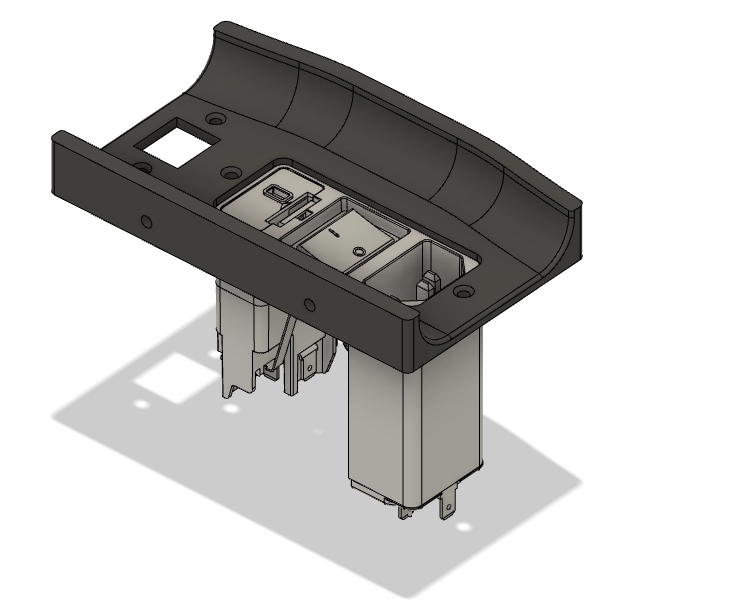

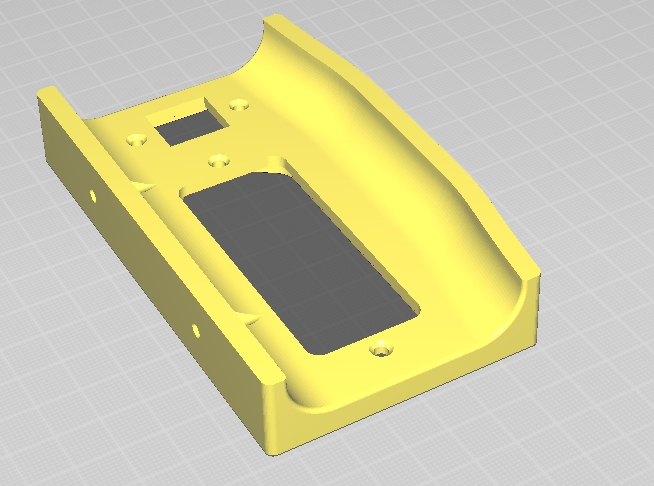

CAD and STL images:

pic2 pic2

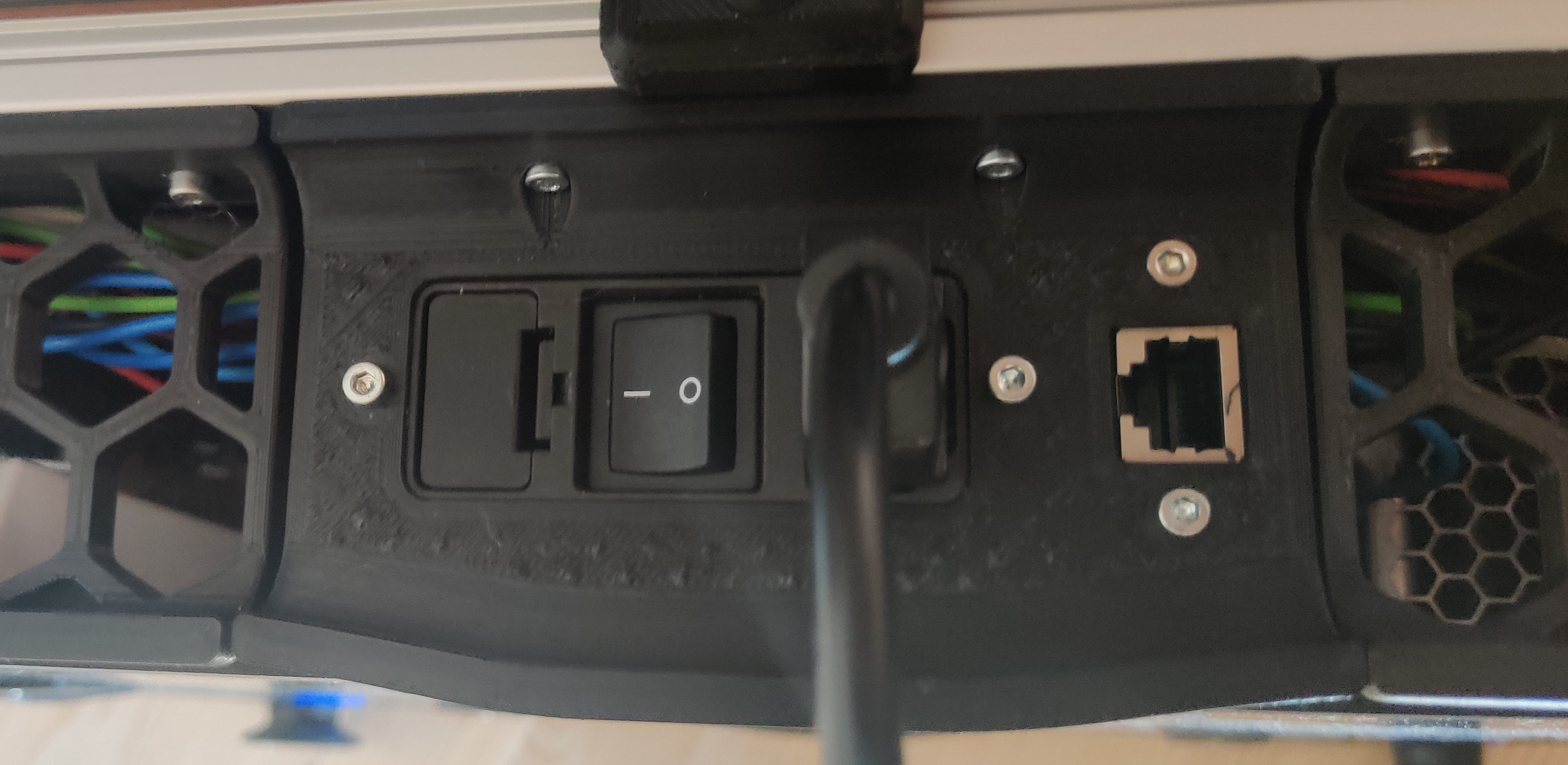

Printed panel:

pic3
