README.md

Voron0 MidPanel with Hex pattern

print settings:

  • layer height: 0.2mm
  • color change at 0.6mm / 2.2mm

V0.1

hardware:

  • 4 x M3x8 BHCS
  • 4 x M3 nut

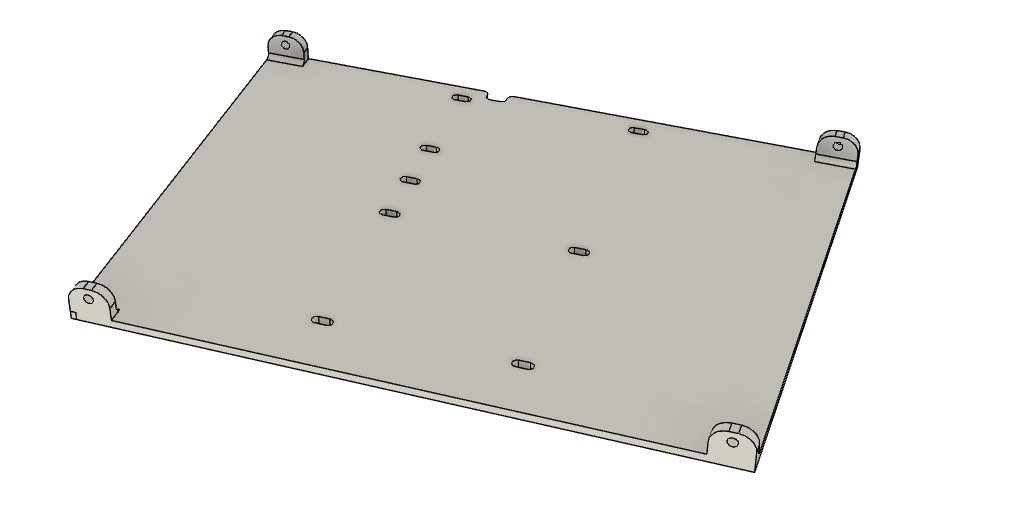

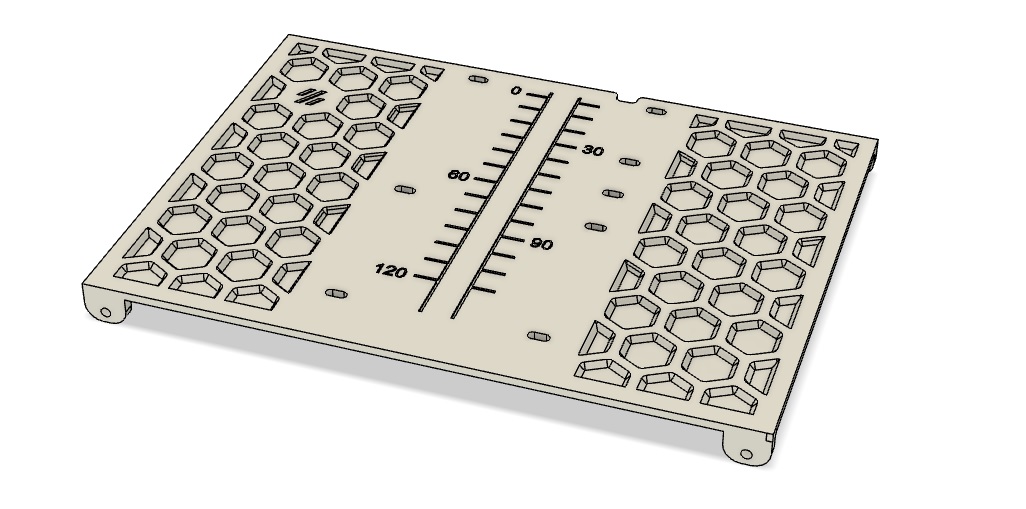

V01_1 V01_2

V0.0:

Compatibility:

hardware:

  • 8 x M3x6 BHCS
  • 8 x M3 Threaded Insert
  • 4 x M3x8 BHCS
  • 4 x M3 nut

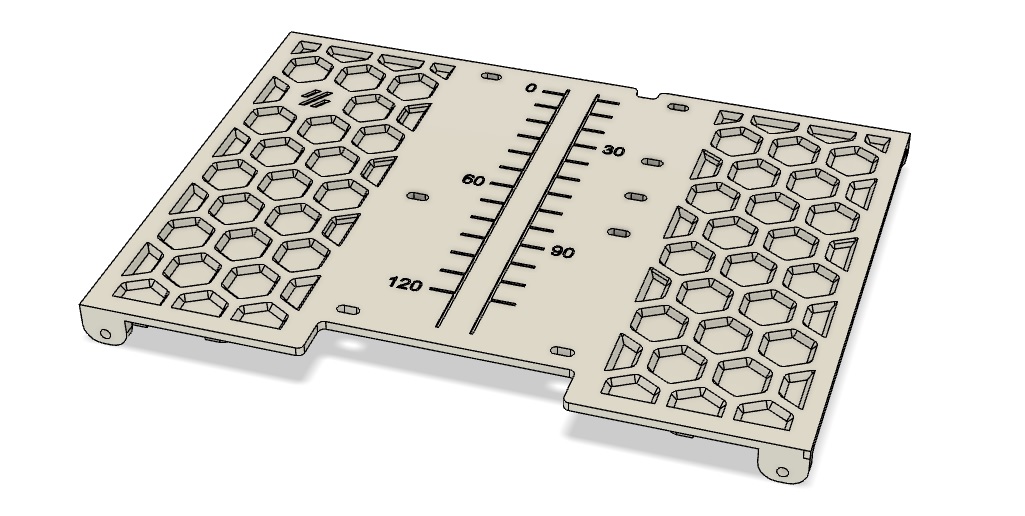

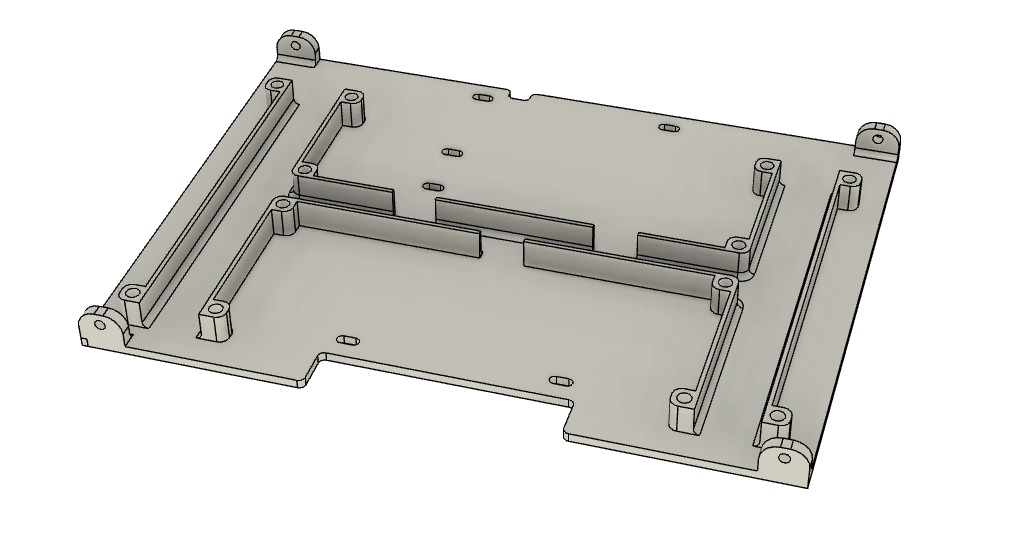

V01_1 V01_2

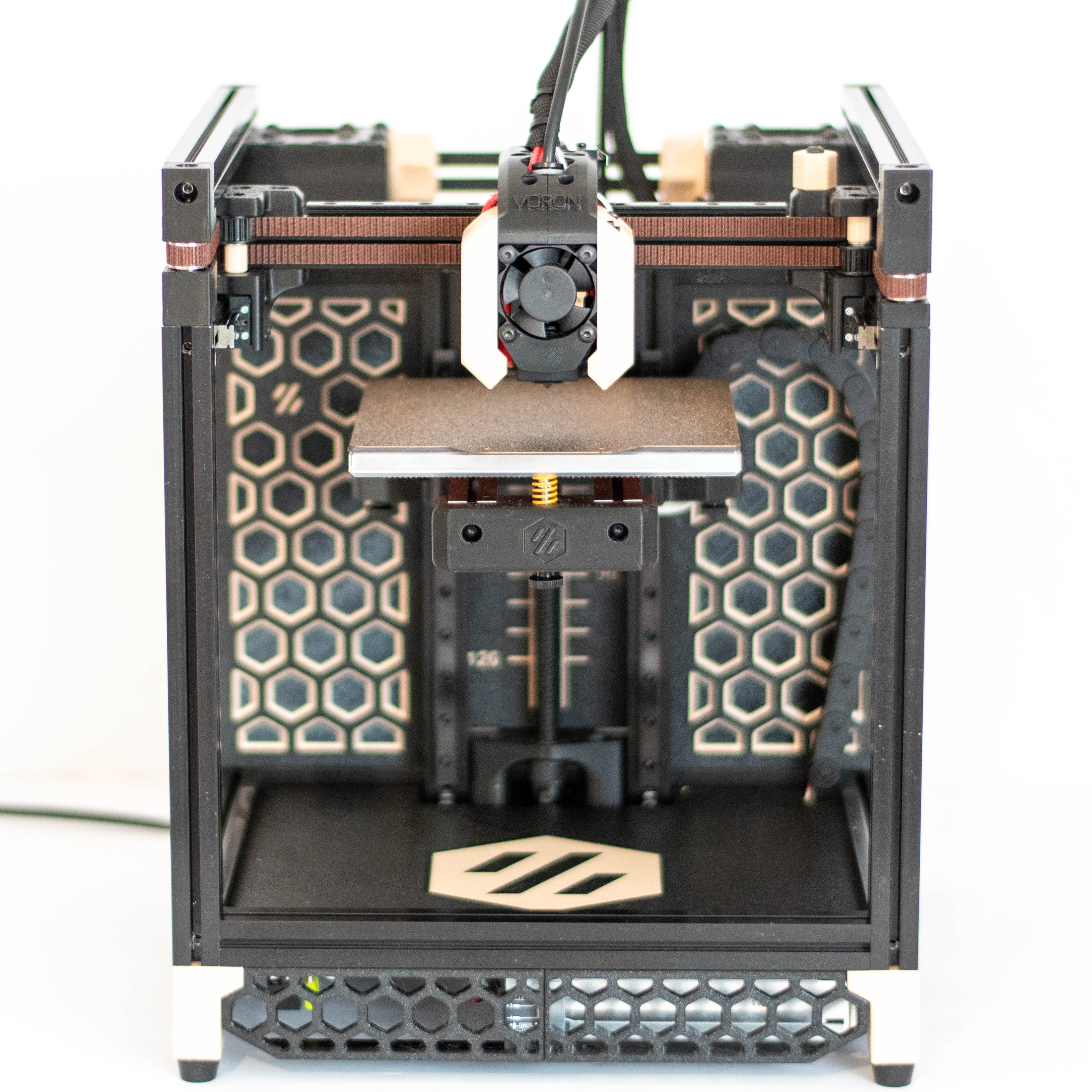

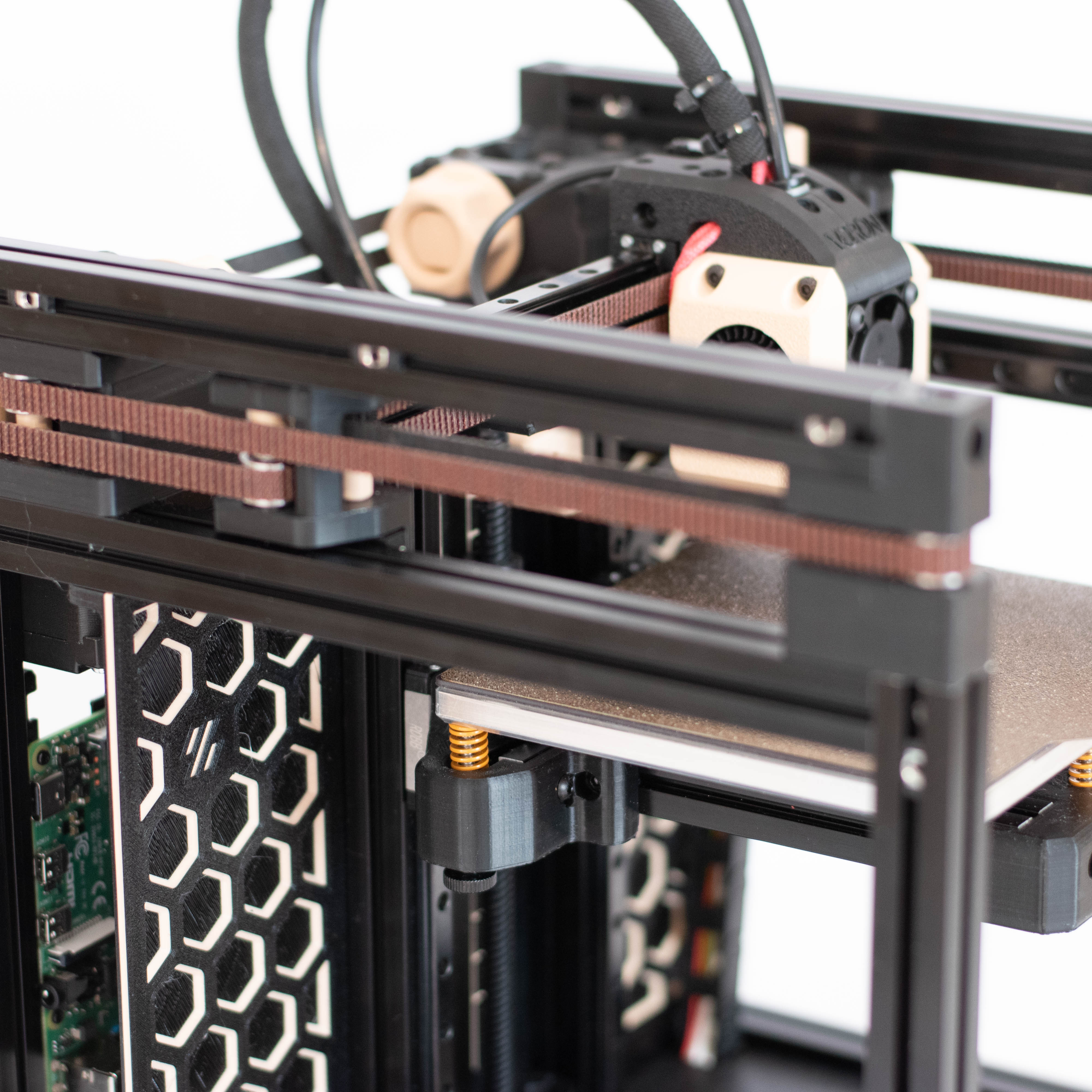

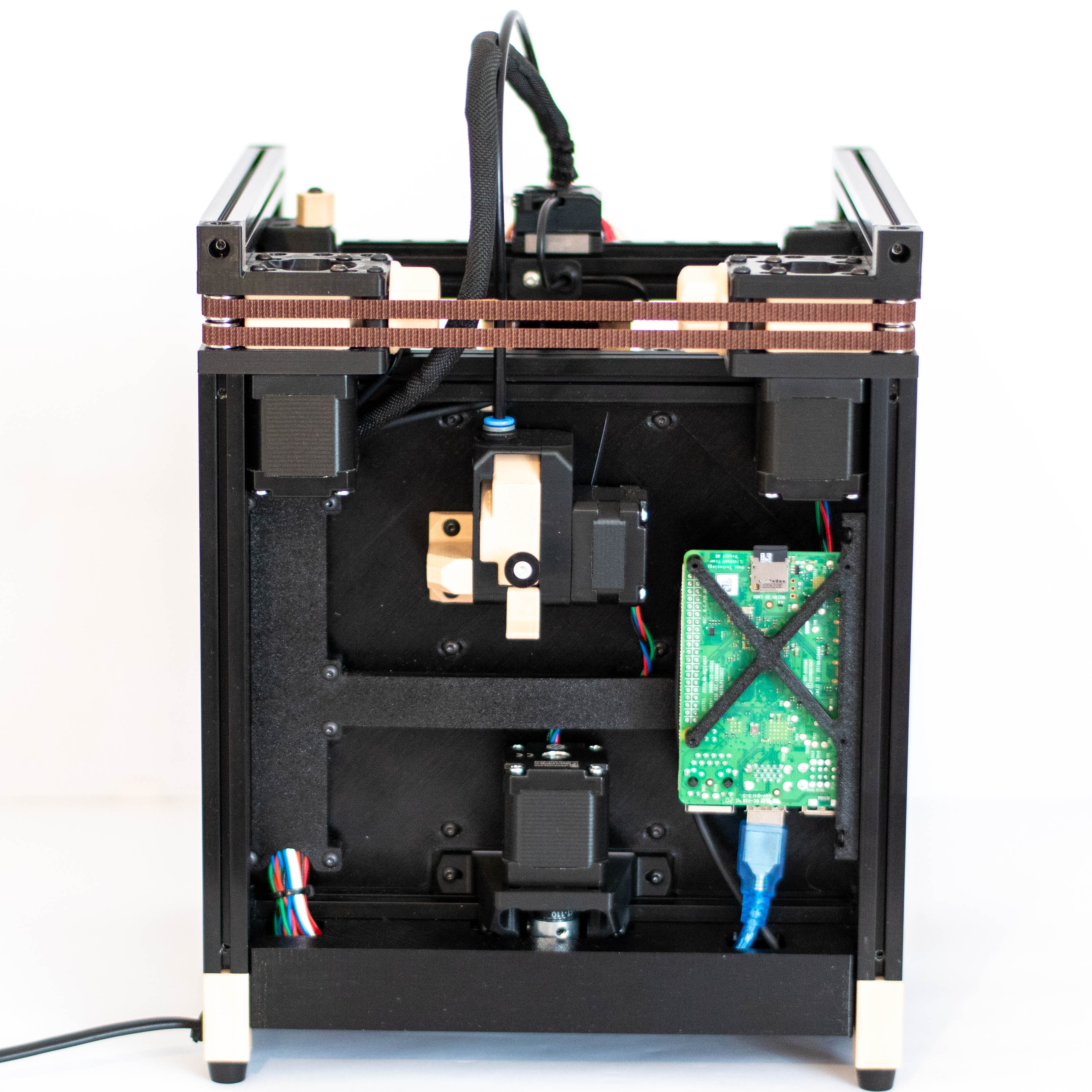

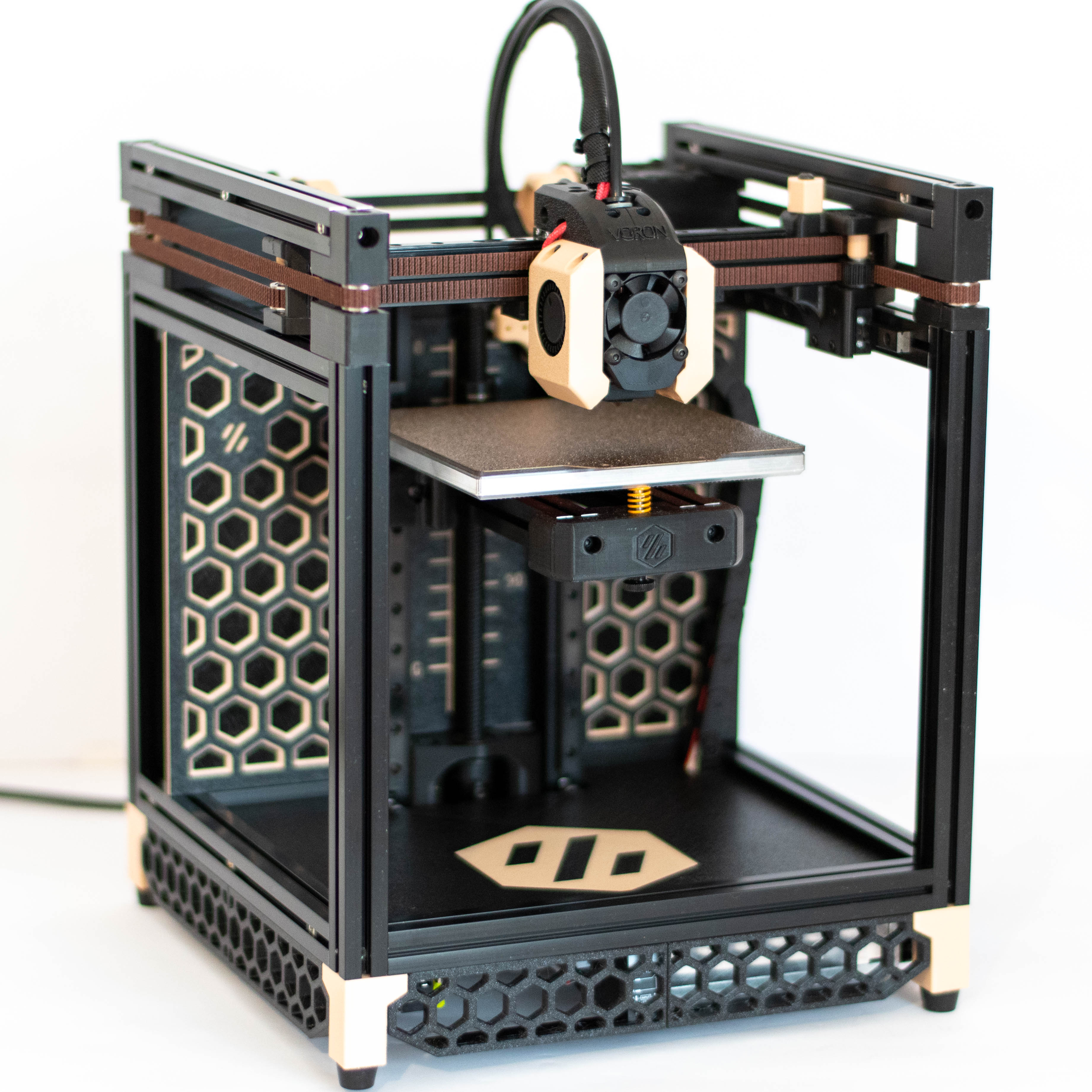

IMG1 IMG3 IMG4 IMG5
