Organized my mods a little better and added 2-piece Z tensioners for the 2.4 |
||
|---|---|---|
| .. | ||
| README.md | ||
| V0.1-A_Tensioner_Housing_x1.stl | ||
| V0.1-B_Tensioner_Housing_x1.stl | ||
| [a]_Tensioner_x2.stl | ||
| [a]_V0.1-Lower_Corner_Front_Left_x1.stl | ||
| [a]_V0.1-Lower_Corner_Front_Right_x1.stl | ||
README.md

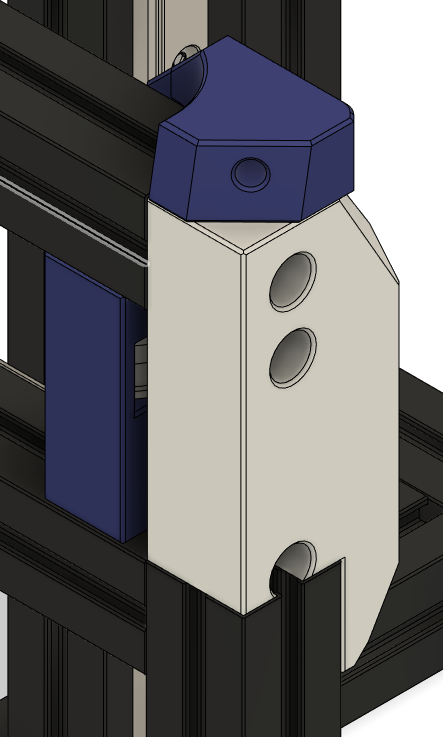

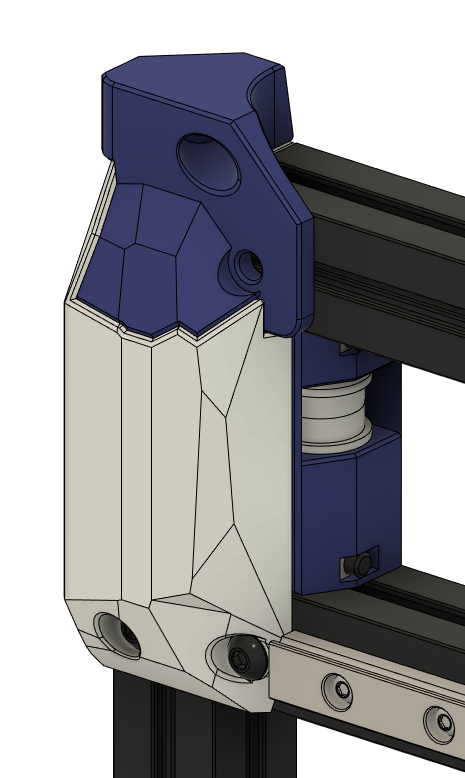

The design of these front mounted tensioners prevents the use of the stock tophat lower corners. As such, modified lower corners are included here with a matching aesthetic.
BOM
| QTY | Part | Comments |
|---|---|---|
| 6 | M3x8 BHCS | 4 of these can be reused from the top hat lower corners and the rail stops |
| 2 | M3x10 BHCS | You can reuse these from the stock front idlers |
| 2 | M3x12 BHCS | You can reuse these from the stock top hat lower corners |
| 4 | M3x20 BHCS | |
| 8 | M3 Hex Nut | 4 of these can be reused from the top hat lower corners and the rail stops |
| 2 | 3x14mm Pin |
