README.md
STL files for common parts for Klicky probe
Here you can find the parts that are common across all printers-
There is no need for supports, all the files are ready to print, they are in the recommended orientation, the standard probe (KlickyProbe_v2.stl) can also be printed with the magnet hole facing down without supports. You can also use brim on the probes to help with bed adhesion.
- Version 0.1 - initial release
- Version 0.2 - Revised probe and dock to improve the docking fit, remaining components are compatible
- Thanks to oc_geek for improving the probing of a badly tilted gantry (10º) and the probe and dock attachment, it's much better now
- Version 2
- Reduced the dock by 2mm, extended the dock mounts by 2mm
- Added two new probes, one mostly for Voron v0 the oher for Tiny-M, they extend the original by different lengths below the nozzle

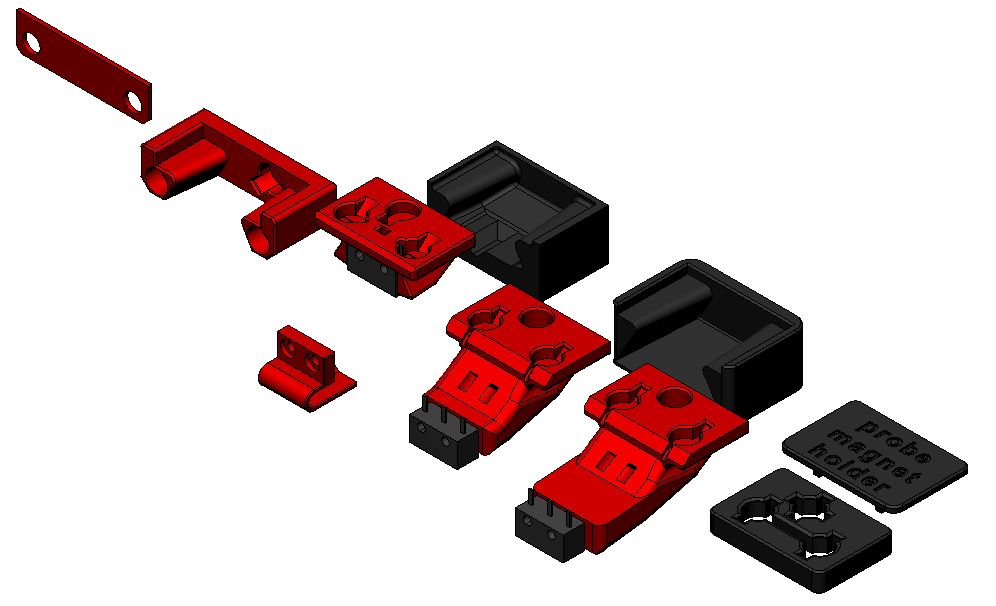

The Klicky Probe consists on four different components:
- Toolhead mount, found on the printer specific STL directory
- the probe itself
- probe dock
- Frame dock mount, found on the printer specific STL directory
The recommended printing configuration are:
- initial layer height:0,24
- layer height: 0.2mm
- bottom/top/perimeters: 4
- infill: more than 23%
- infill type: Cubic
- Thin walls: On
