TMC mounts for BTT 5160T Plus

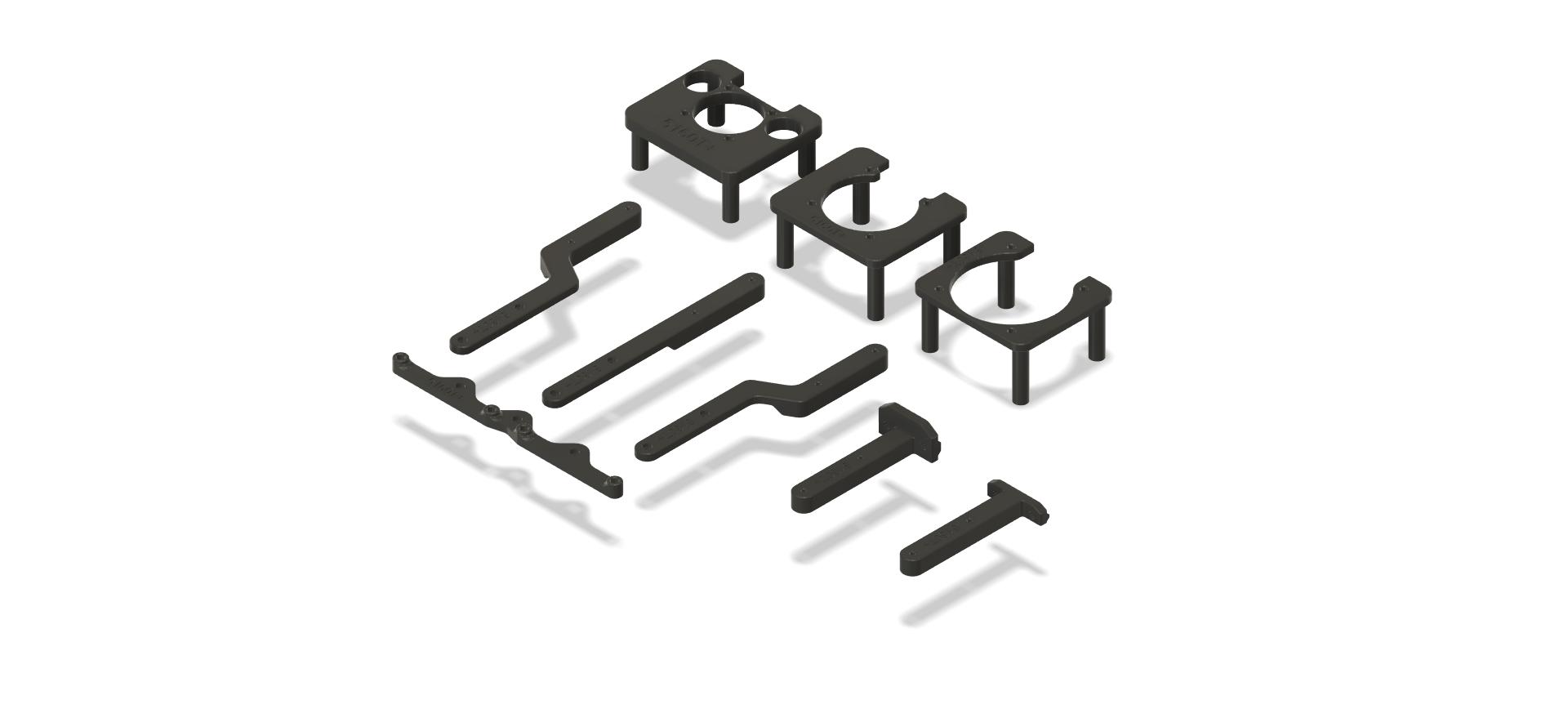

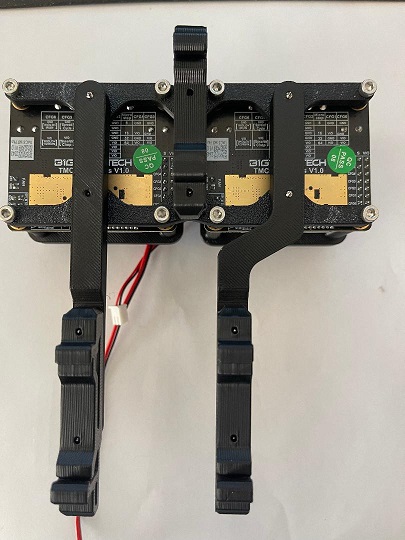

A single mount will hold a pair of 5160T Plus. Each mount is designed for direct mount to a DIN rail or use a combination of the brackets to mount to 2020 extrusion, 1515 extrusion or offset the mount near your MCU. The offset mounts for the MCU include a left, right and center to allow the user to get the ideal position.

Printing

  • Print 1 mount per pair BTT 5160T Plus
  • Print 2 Voron PCB DIN Clip (Not needed for 2020 bracket)
  • Print 2 brackets per mount (optional)
  • Default Voron settings
  • No supports needed

BOM

per TMC Mount

Item Size Qty Comment
Self Tapping Screw M2x10 4 Direct DIN Mount
Self Tapping Screw M2x10 8 DIN Mount with brackets
SHCS/BHCS M3x8 4 2020 bracket to 2020
T-Nut M3-2020 4 2020 bracket to 2020

Fan Duct Mounts for BTT 5160T Plus

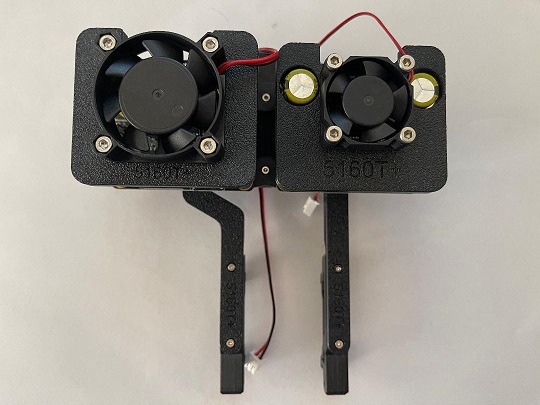

Mounts for 30mm, 40mm and 50mm fans. FYI 30mm fan mount is the lowest profile.

Printing

  • Print 2 fan mounts per BTT 5160T Plus Mount
  • Default Voron settings
  • No supports needed

BOM

per Fan Mount

Item Size Qty Comment
SHCS/BHCS M3x12 (max 16) 4 Secure fan mount and TMC to TMC mount
SHCS/BHCS M3x12 (max 16) 4 3010, 4010 or 5010

BTT_5160T_Plus_Mounts BTT_5160T_Plus_Mounts BTT_5160T_Plus_Mounts
