README.md

Print parameters

as per Voron specifications:

  • Layer height: 0.2
  • Infill: 50% or more
  • Infill type: Grid
  • Perimeters: 4 or more
  • Top/Bottom solid layers: 5 or more
  • Filament: ABS/ABS+

BOM

  • 4x M3 10mm
  • 2x M3 12mm
  • 4x M3 25mm
  • 2-in-1

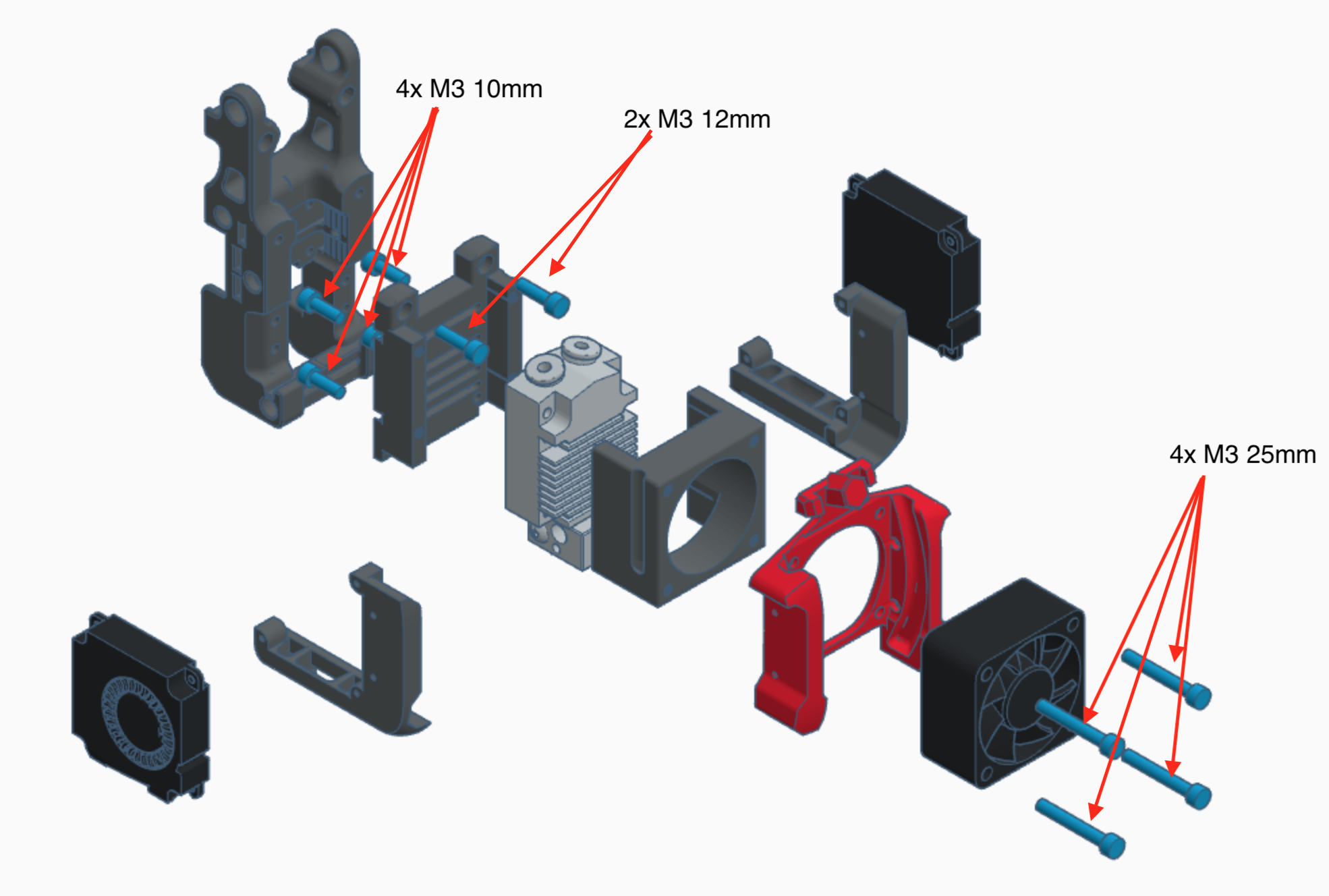

HOW TO MOUNT

2
