README.md

🌟LILYGO T-0.99TFT🌟

English | 中文

T-0.99TFT_Library:

  1. Arduino Library. Added to the '~ Arduino/libraries'
  2. Define pins and select display direction in TFT GC9D01N.h

default setting

PIN
TFT_MISO -1
TFT_MOSI 10
TFT_SCLK 20
TFT_CS -1
TFT_DC 2
TFT_RST -1
TFT_BL 8

Product 📷:

Product Product Link
T-0.99TFT AliExpress

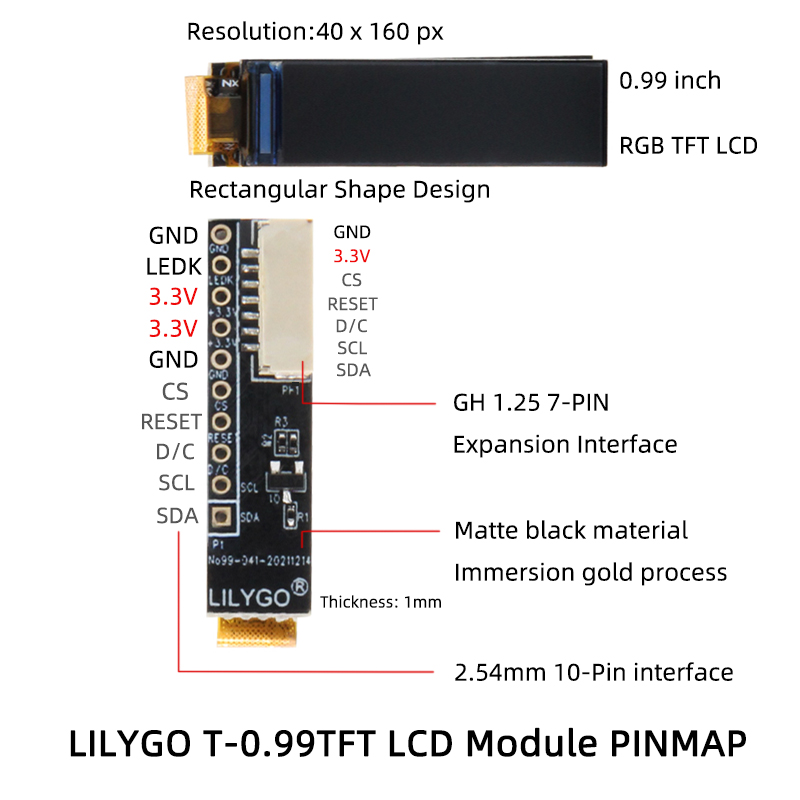

Pinout
